Radio Front Side Door Speaker Replacement

Radio Front Side Door Speaker Replacement

Removal Procedure




1. Remove the inner trim panel from the front door.

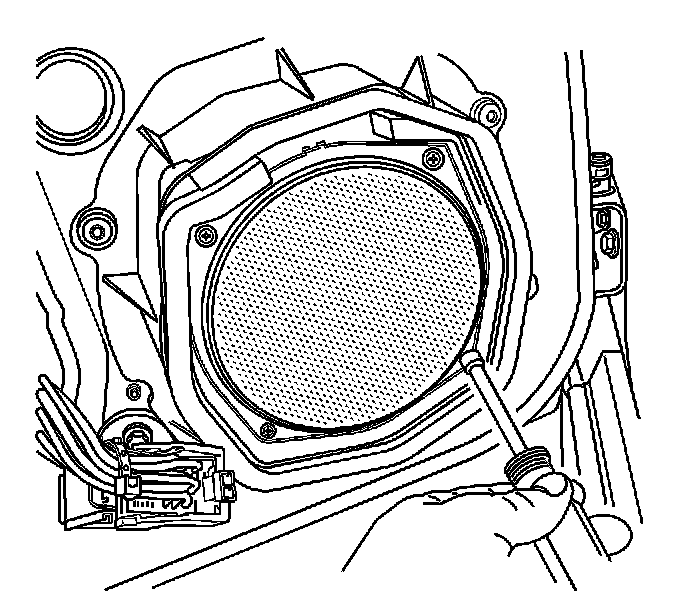

2. Remove the screws from the front door speaker.

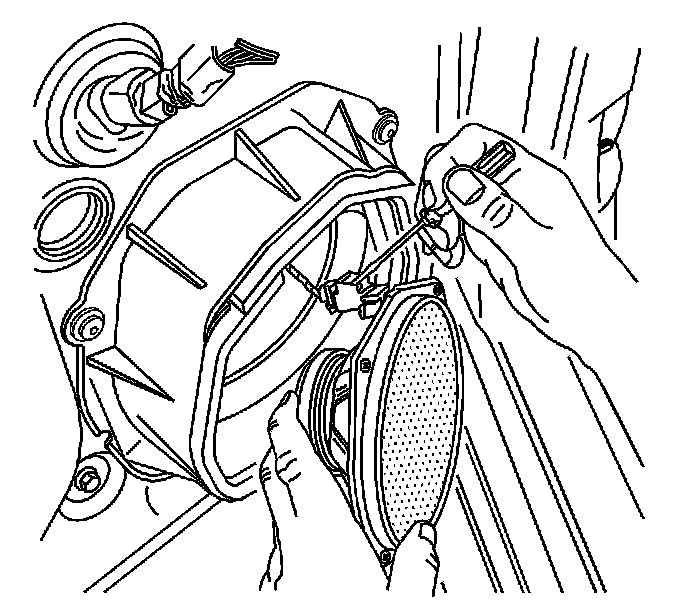

3. Disconnect the electrical connector from the front door speaker to the harness.
4. Remove the speaker from the front door.

Installation Procedure




1. Connect the electrical connector to the front door speaker.
2. Position the speaker to the front door.






Notice: Refer to Fastener Notice.

3. Install the screws to the front door speaker.

Tighten the screws to 2 N.m (18 lb in).

4. Install the inner trim panel.
