Home >> Pontiac >> 2007 >> G6 V6-3.6L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Switch >> Locations

Ignition Switch: Locations

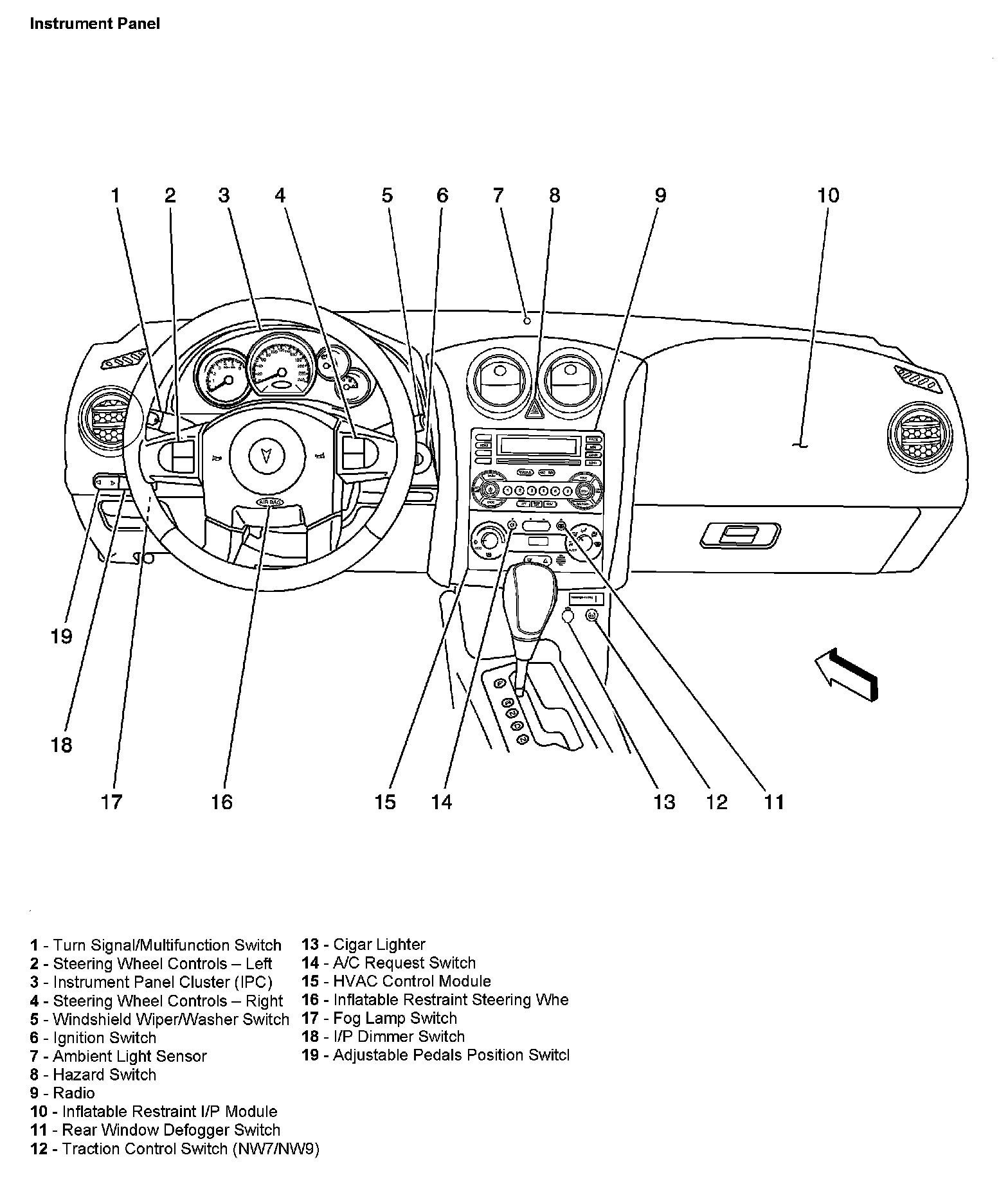

Instrument Panel:

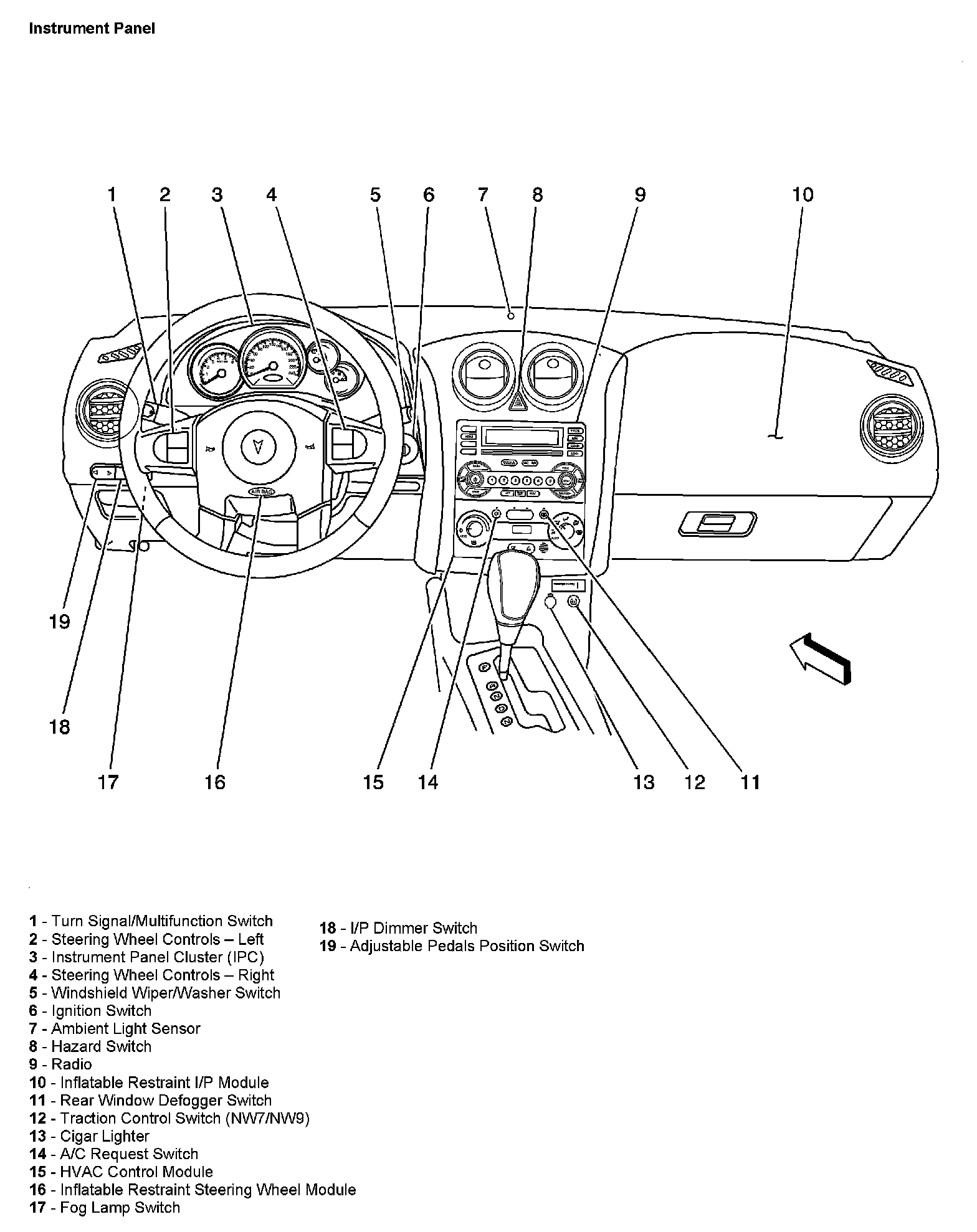

Instrument Panel:



Instrument Panel:



Instrument Panel:



Instrument Panel:
