Engine Mount Strut Bracket Replacement - Right

Engine Mount Strut Bracket Replacement - Right Side

Removal Procedure




1. Remove the air cleaner assembly.

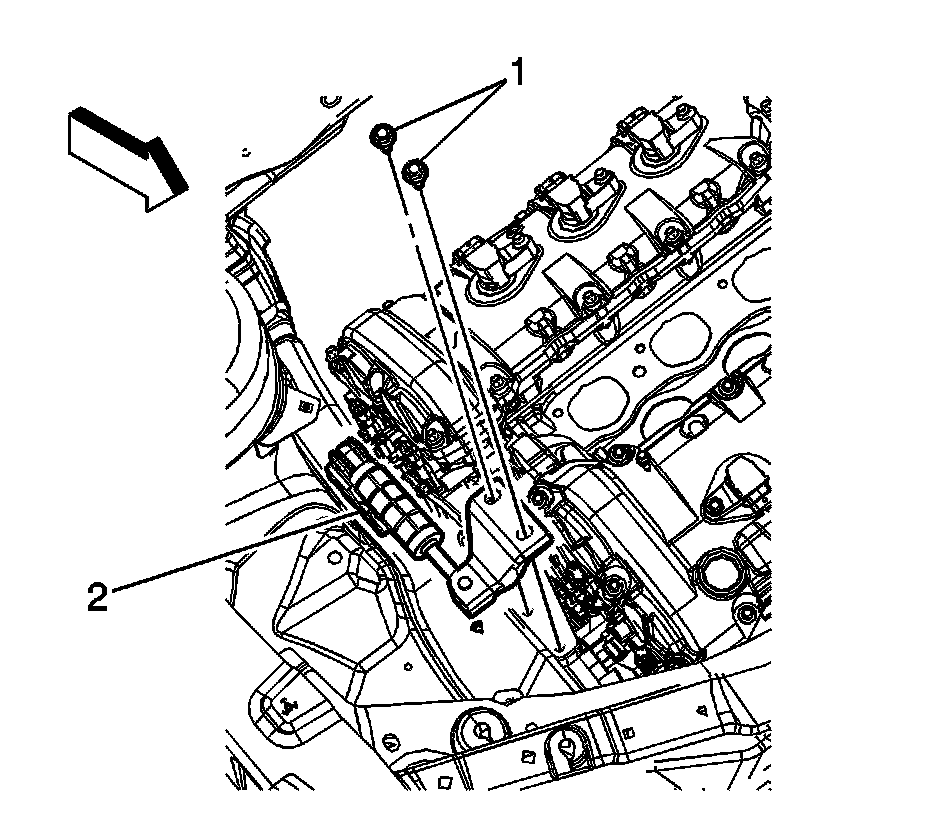

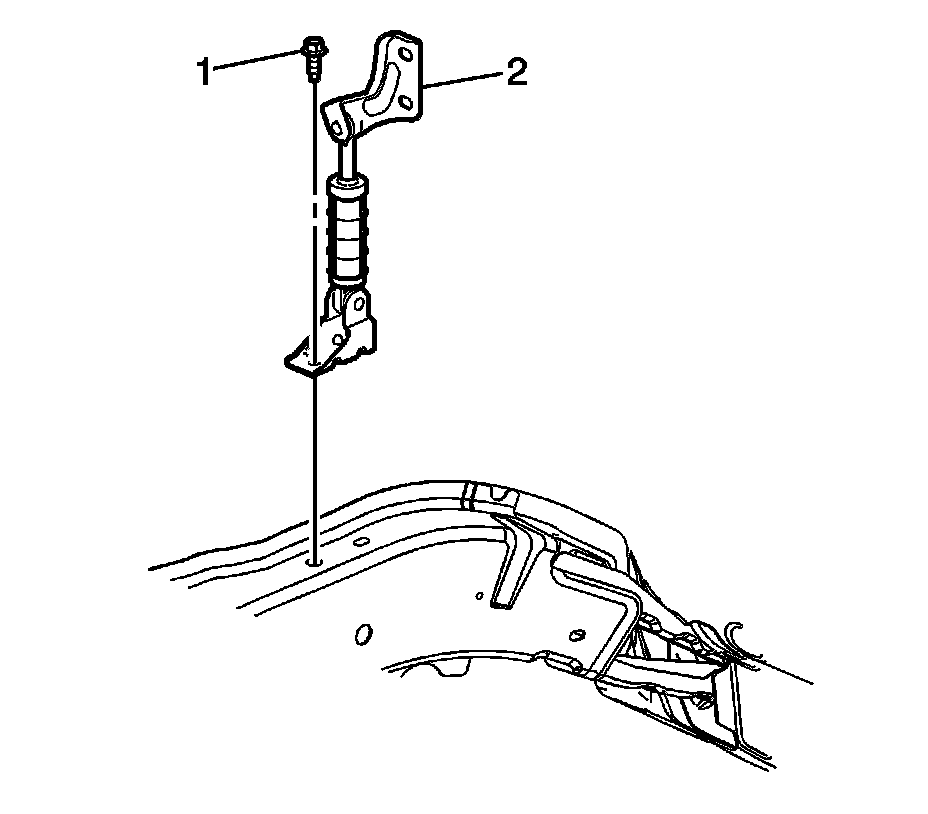

2. Remove the engine mount strut to engine mount strut bracket bolts (1).




3. Rotate the engine mount strut (2) to the vertical position.




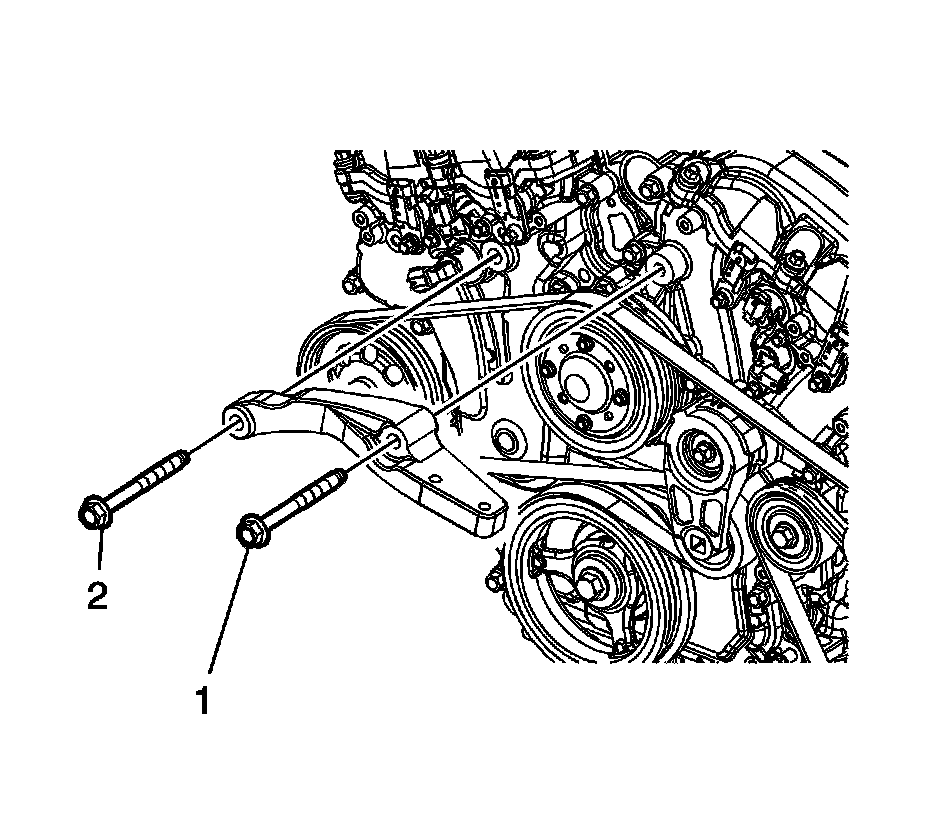

4. Remove the engine mount strut bracket bolts (1).
5. Remove the engine mount strut bracket.

Installation Procedure




1. Position the engine mount strut bracket.

Notice: Refer to Fastener Notice .

2. Install the engine mount strut bracket bolts (1).

Tighten the bolt to 90 N.m (66 lb ft).




3. Rotate the engine mount strut to the horizontal position.




4. Install the engine mount strut to engine mount strut bracket bolts (1).

Tighten the bolts to 50 N.m (37 lb ft).

5. Install the air cleaner assembly.
