Multiple Junction Connector
>>
C100 - C199
>>
C108
C108

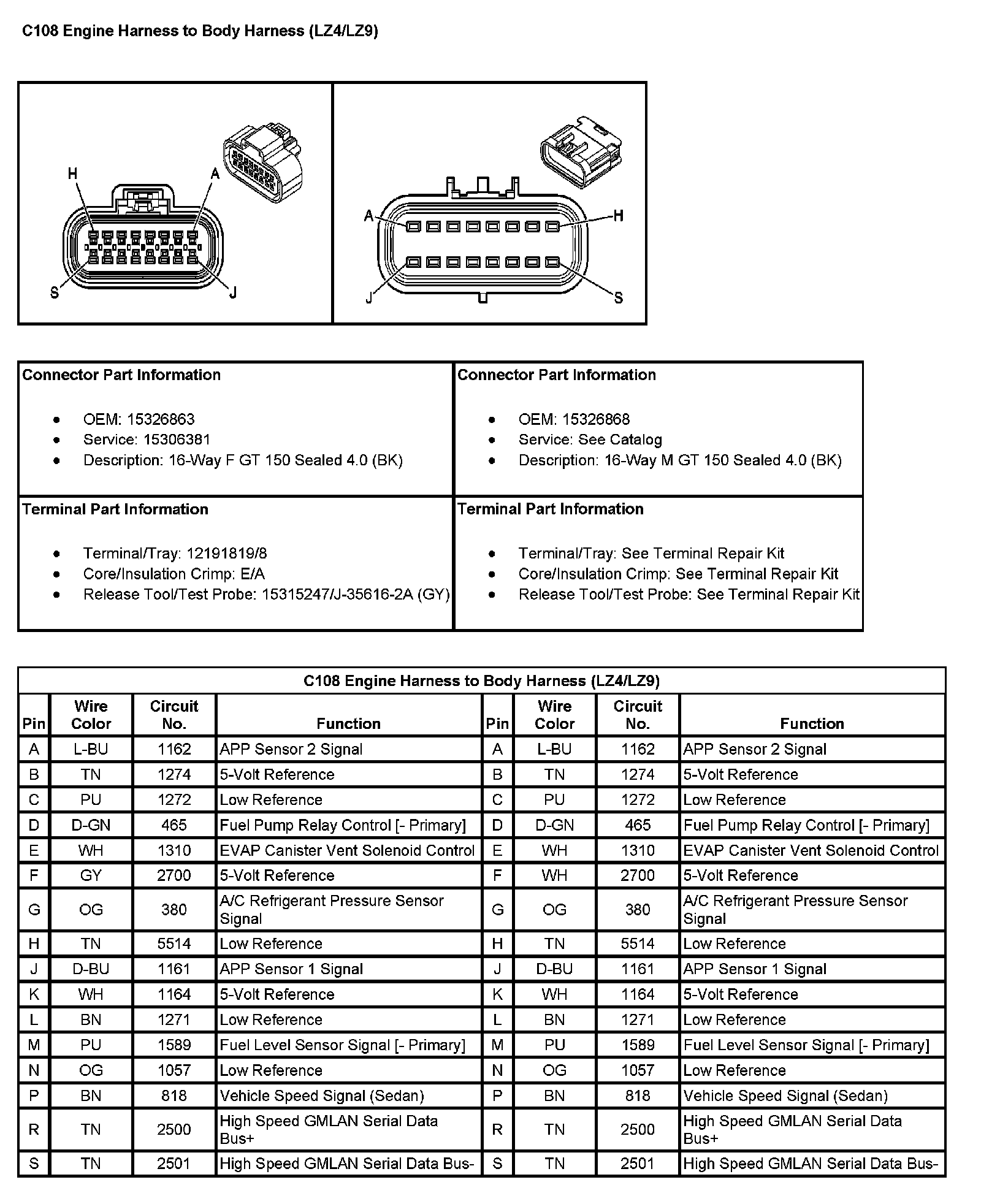

C108 Engine Harness To Body Harness (LZ4/LZ9):
