G6 L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Throttle Control Module
Electronic Throttle Control Module

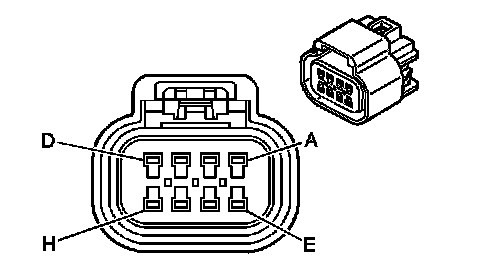

Engine Controls Connector End Views

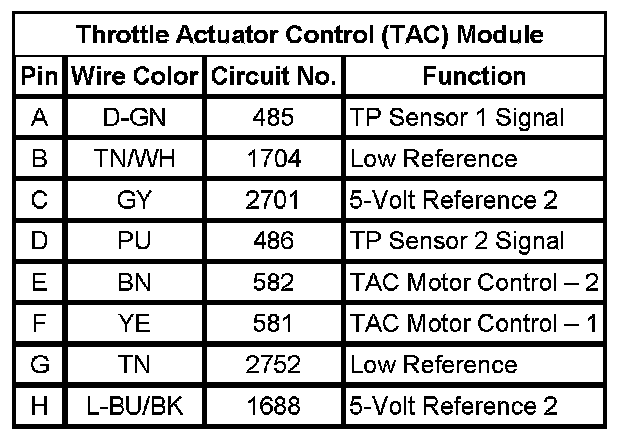

Throttle Actuator Control (TAC) Module
