Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Convertible Top Latch >> Folding Top Header Latch Cylinder Sensor S1 (Convertible)

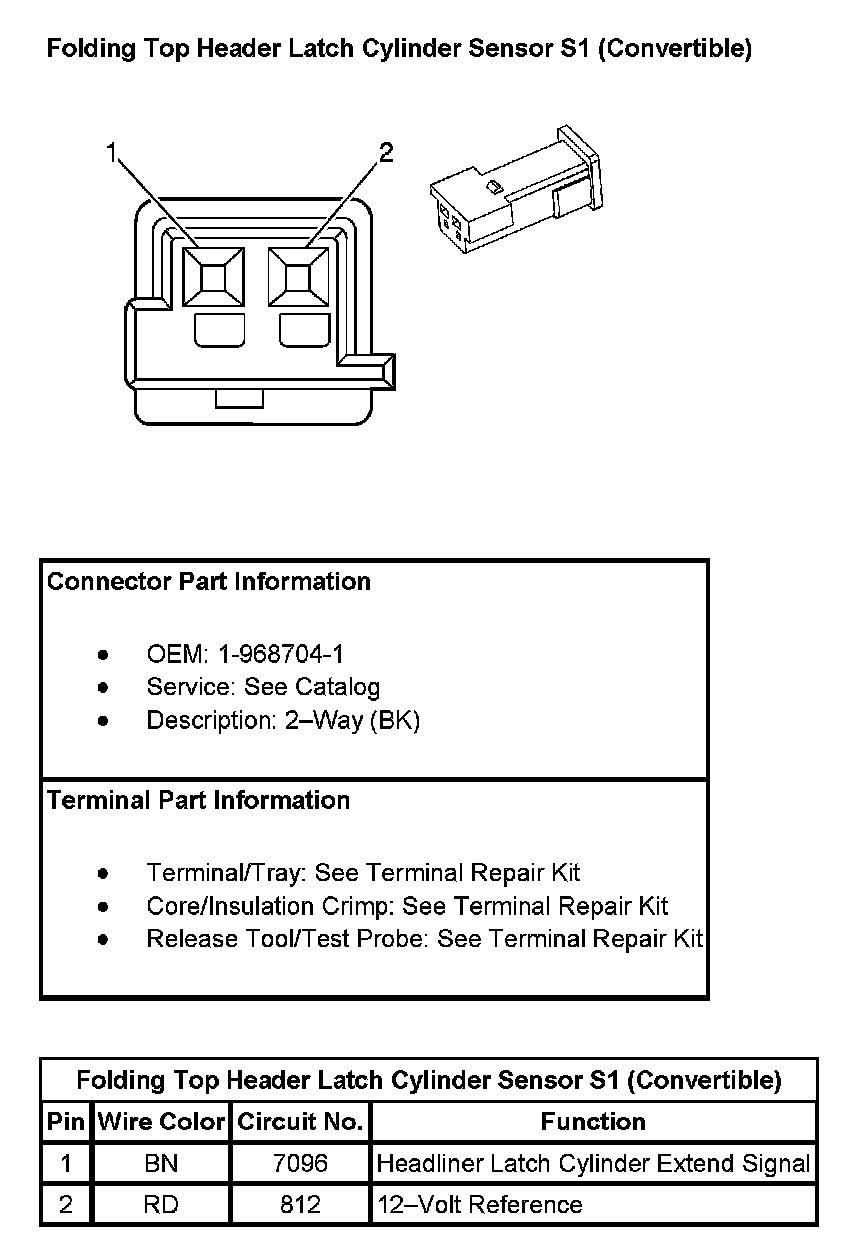

Folding Top Header Latch Cylinder Sensor S1 (Convertible)

Folding Top Header Latch Cylinder Sensor S1 (Convertible):
