Variable Induction Control Valve: Service and Repair

CAMSHAFT POSITION (CMP) ACTUATOR SOLENOID VALVE FILTER REPLACEMENT

REMOVAL PROCEDURE

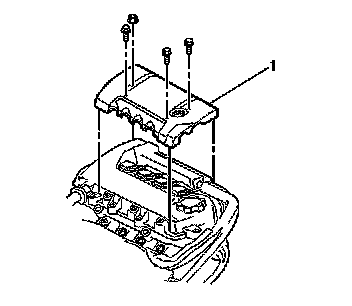

1. Remove the four fasteners from the engine cover (1).
2. Remove the engine cover (1) from the engine.




3. Remove the two bolts and the generator support brace from the intake manifold.

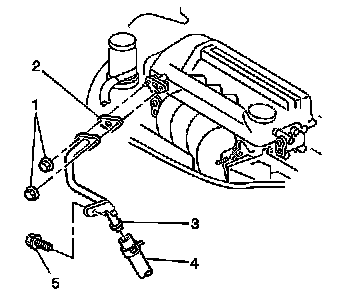

4. Remove the one bolt (3) that secures the lower portion of the breather pipe (1) of the positive crankcase ventilation (PCV) system.
5. Remove the two nuts (4) securing the PCV breather pipe to the cylinder head.
6. Disconnect the PCV breather hose (2) from the PCV breather pipe (1).
7. Remove the PCV breather pipe.




8. Remove the oil filter plug (3) from the cylinder head.

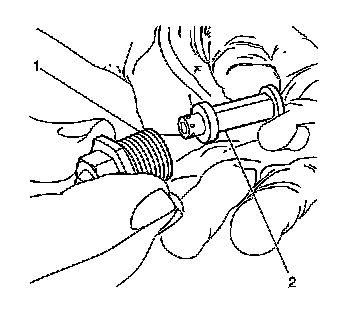

9. Remove the oil filter (2) from the oil filter plug (1).

INSTALLATION PROCEDURE




1. Install the oil filter (2) into the oil filter plug (1).




2. Install the oil filter plug (3) with a new O-ring (2) into the cylinder head.
3. Tighten the oil filter plug.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the plug to 30 N.m (22 lb ft).




4. Connect the PCV breather hose (2) to the PCV breather pipe (1).
5. Install the PCV breather pipe (1), with a new gasket (5), to the cylinder head.
6. Secure the PCV breather pipe to the cylinder head with the two nuts (4).

Tighten the fastener to 9 N.m (80 lb in).

7. Secure the lower portion of the PCV breather pipe (1) to intake manifold with the one bolt (3).

Tighten the bolts to 24 N.m (18 lb ft).

8. Install the generator support brace to the intake manifold and secure with two bolts.

Tighten the bolts to 29 N.m (21 lb ft).




9. Install the engine cover (1) to the engine.
10. Secure the engine cover (1) with the four fasteners.

Tighten the fasteners to 7 N.m (62 lb in).
