7. Intake Manifold Removal

Intake Manifold Removal
1. Disconnect the EVAP hose for the ORVR.
2. Disconnect the brake booster vacuum hose.
3. Remove the oil dipstick guide bolt.





4. Remove 2 bolts and 1 nut from the intake manifold bracket.

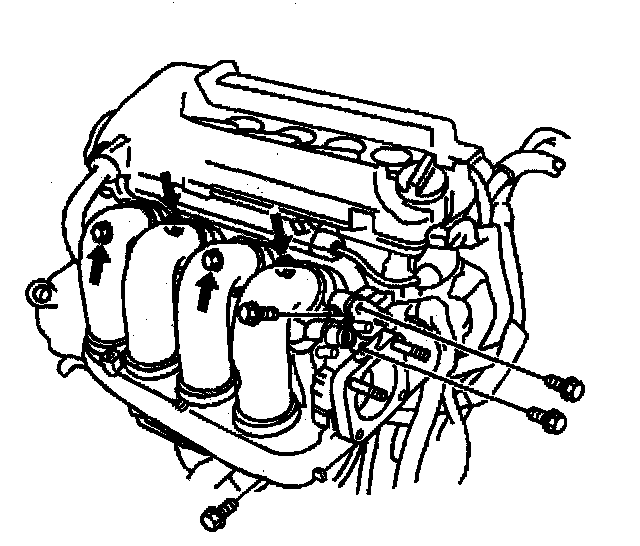

5. Remove the intake manifold bolts and nuts.
6. Remove 2 bolts from the alternator bracket.
7. Remove the intake manifold and gasket.
