System Diagram

ENGINE CONTROLS SCHEMATICS (RPO LNK)

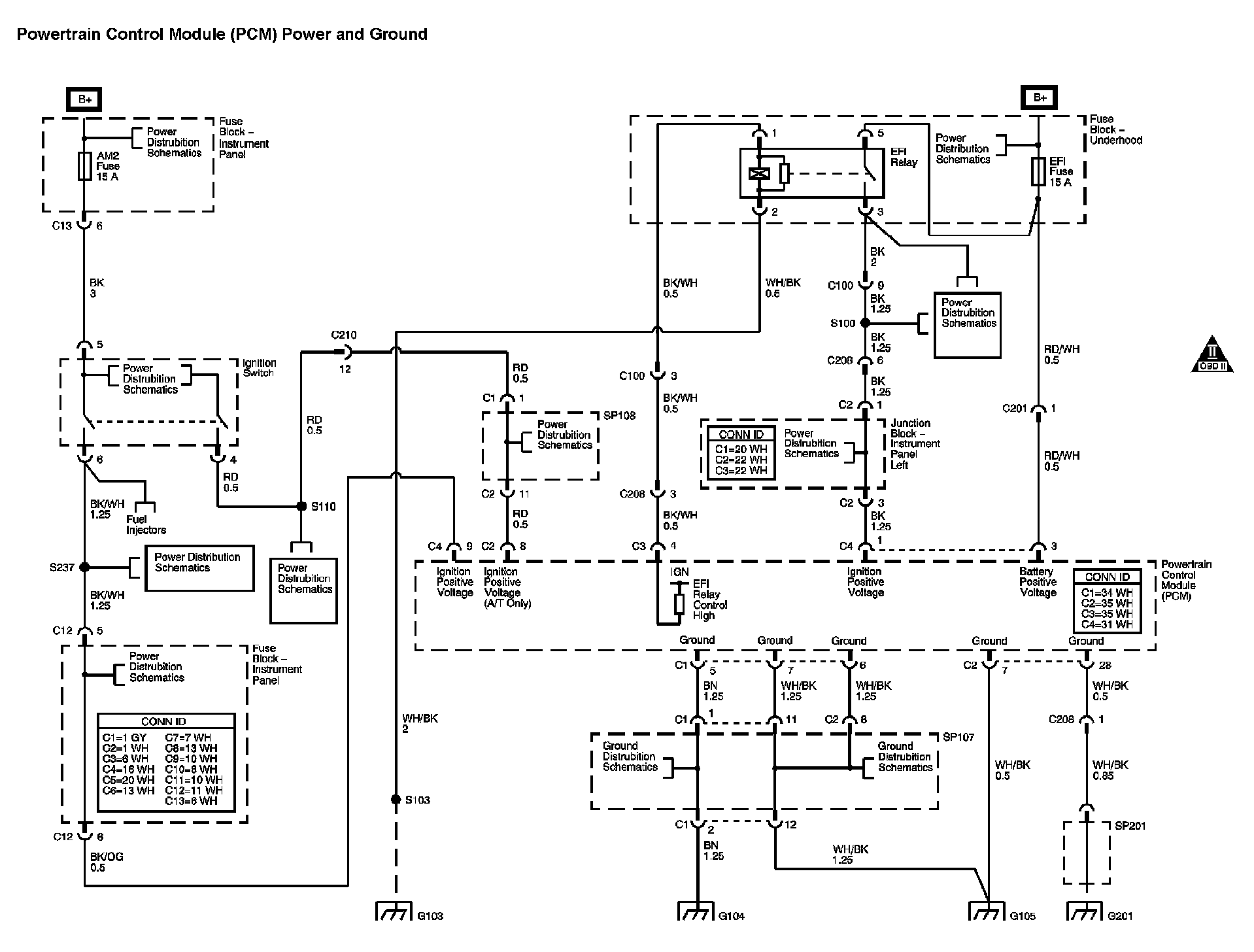

Powertrain Control Module (PCM) Power and Ground

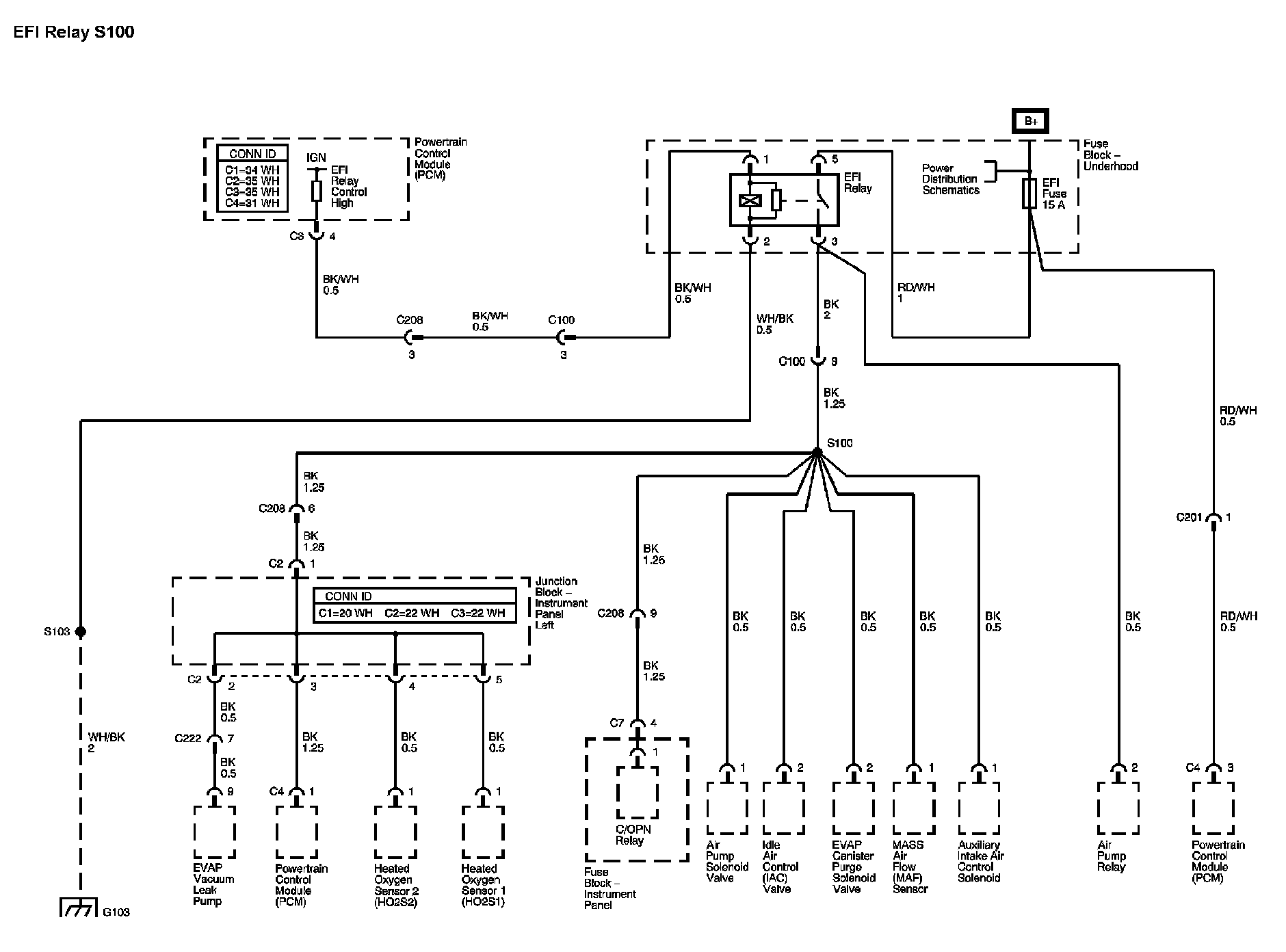

EFI Relay S100

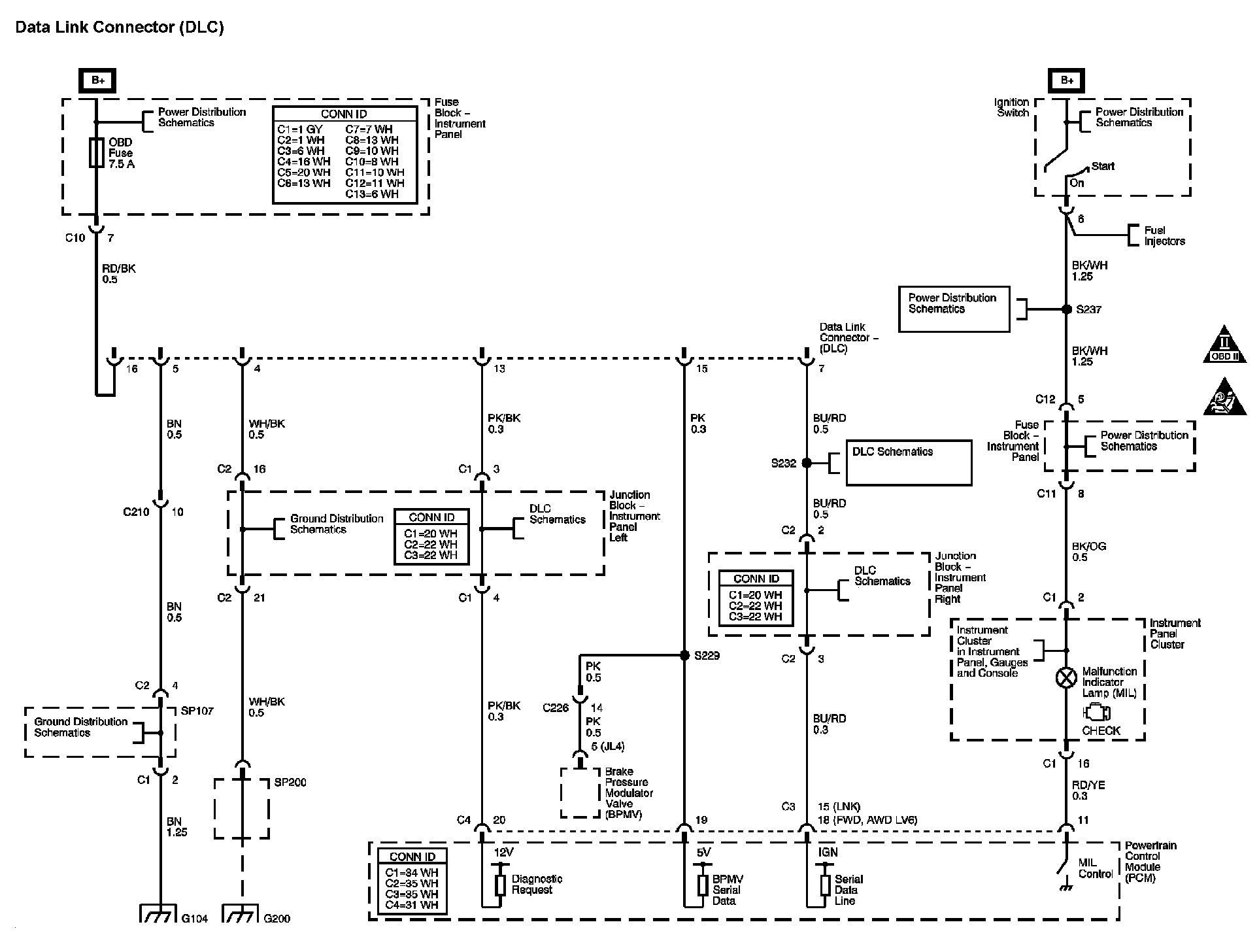

Data Link Connector (DLC)

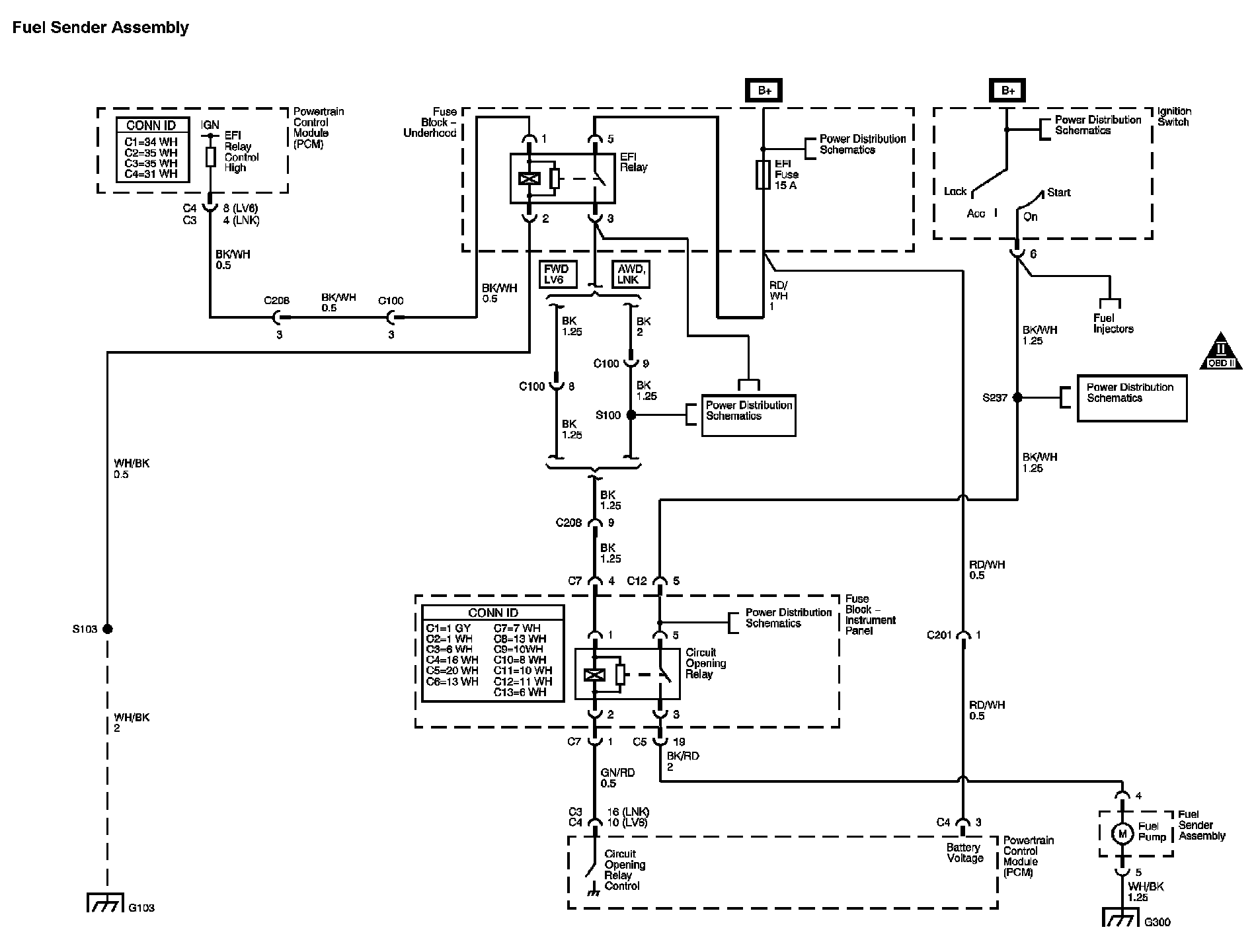

Fuel Sender Assembly

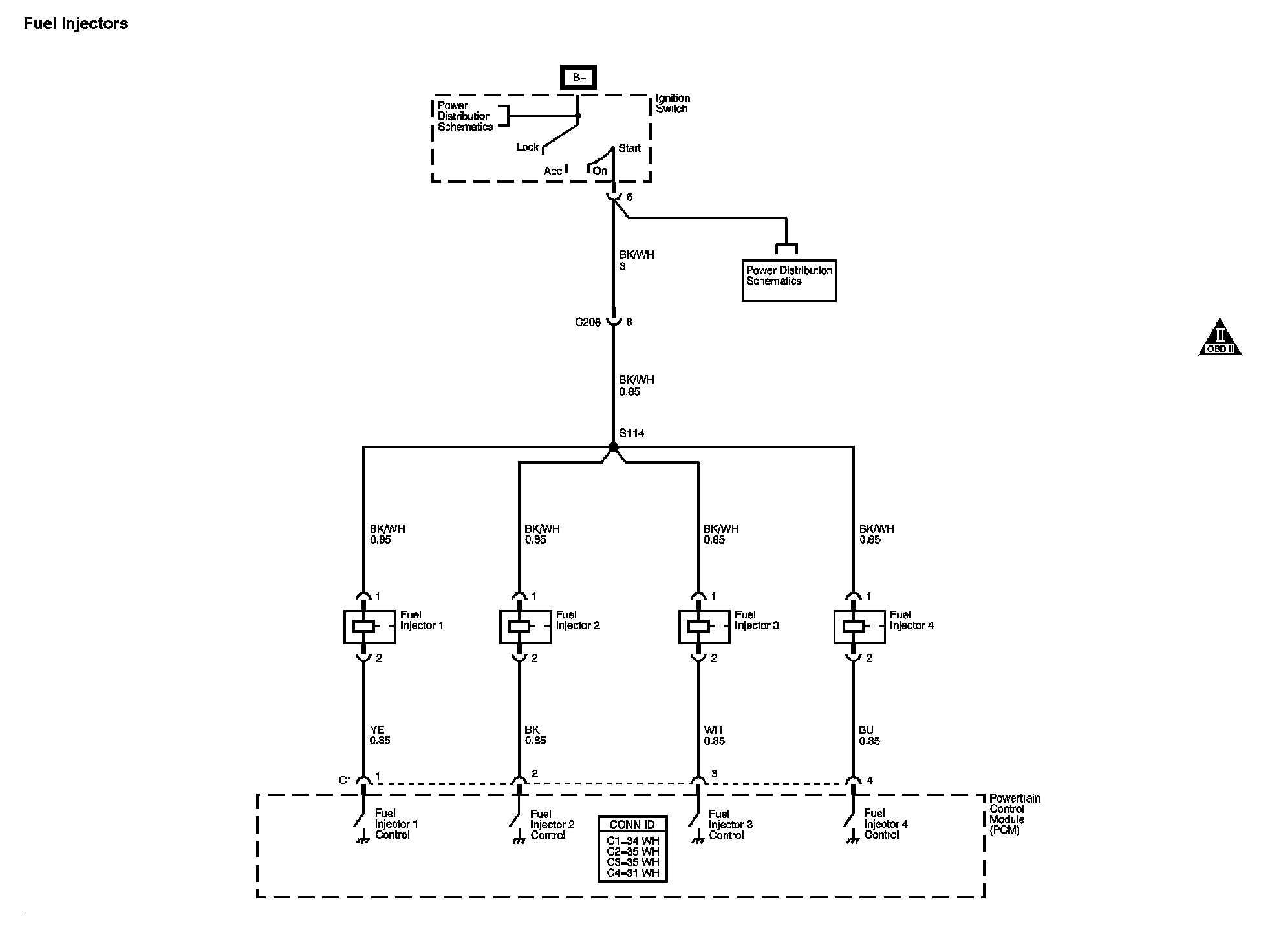

Fuel Injectors

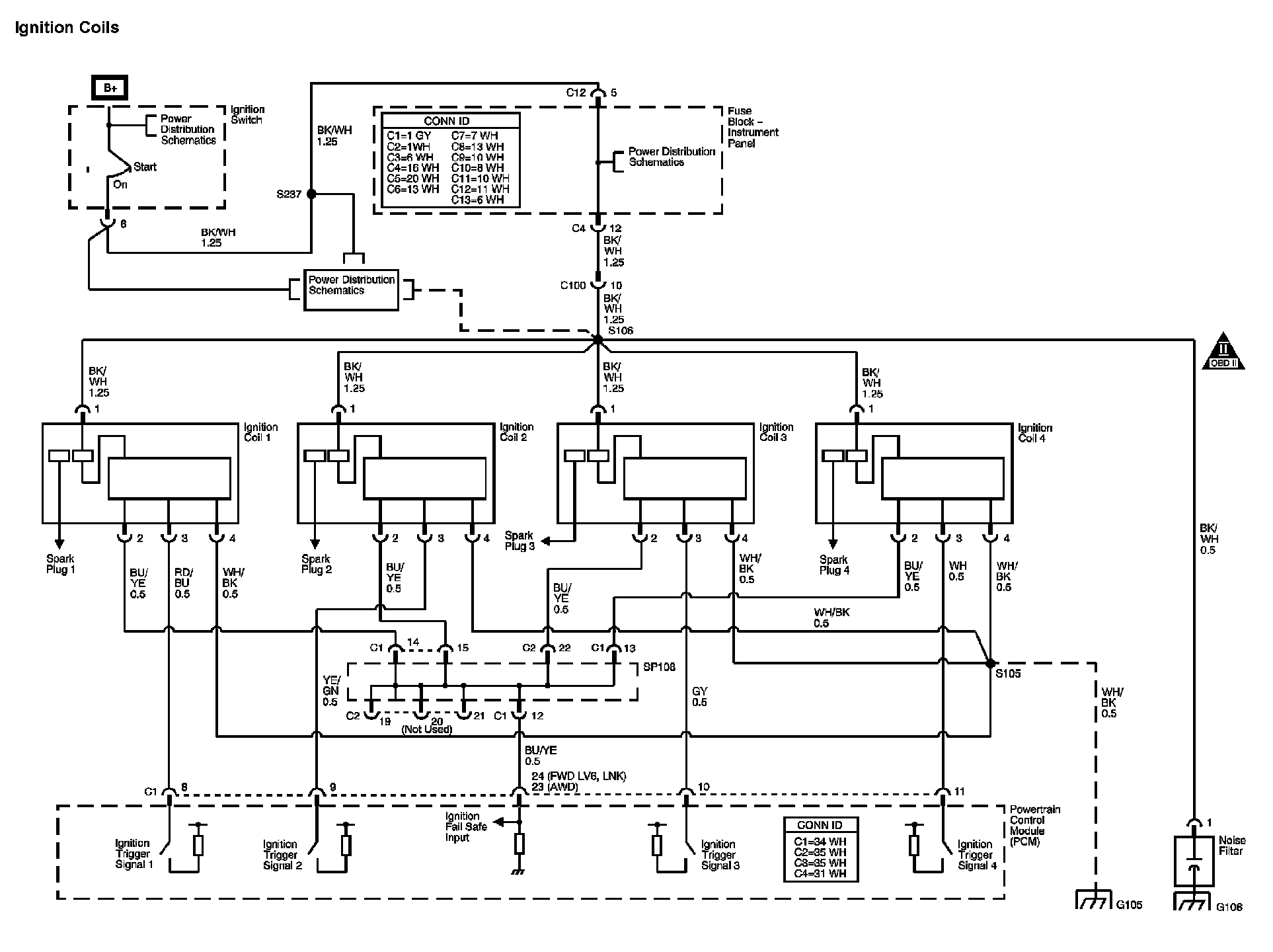

Ignition Coils

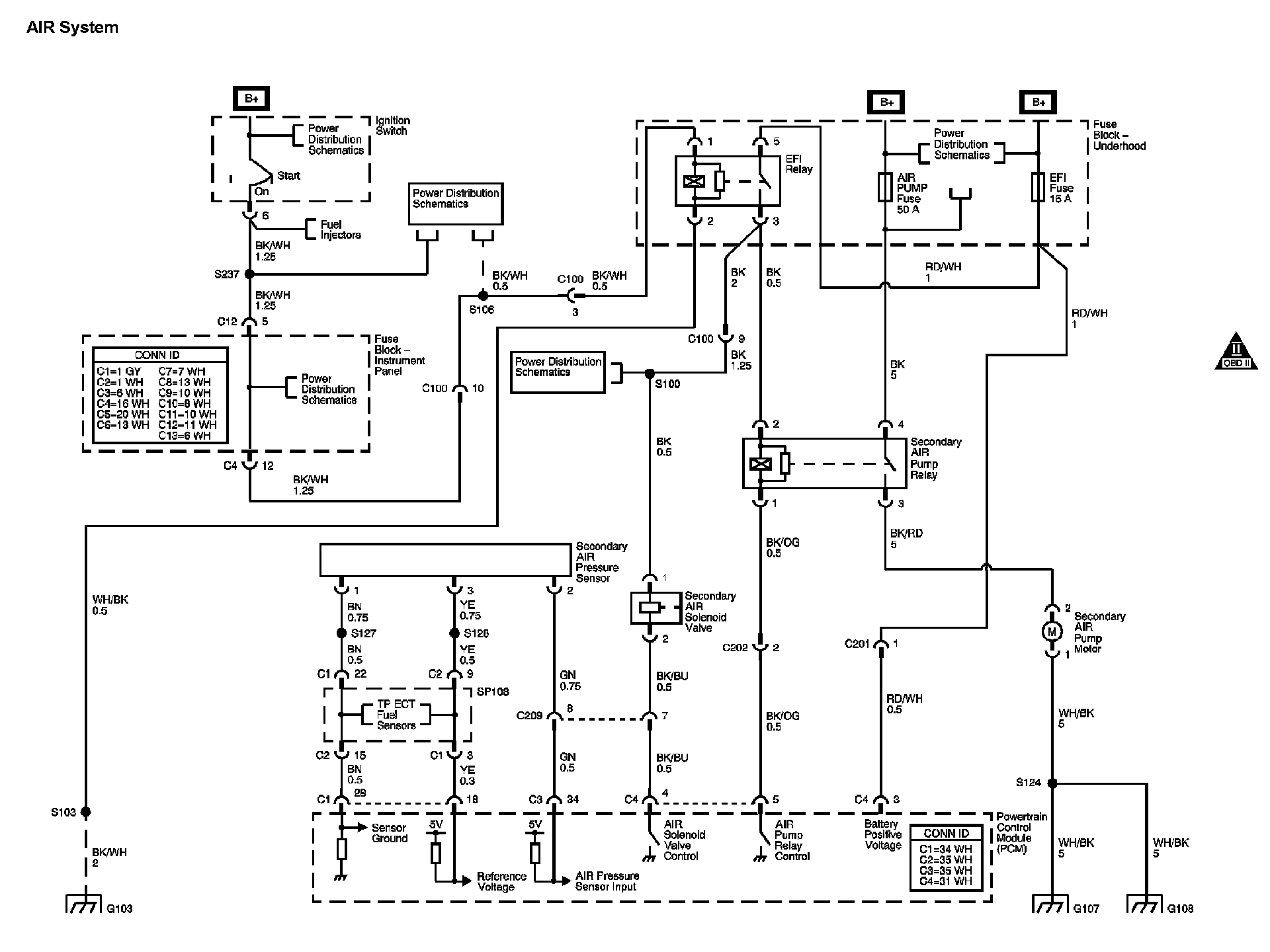

Secondary Air Injection (AIR) System

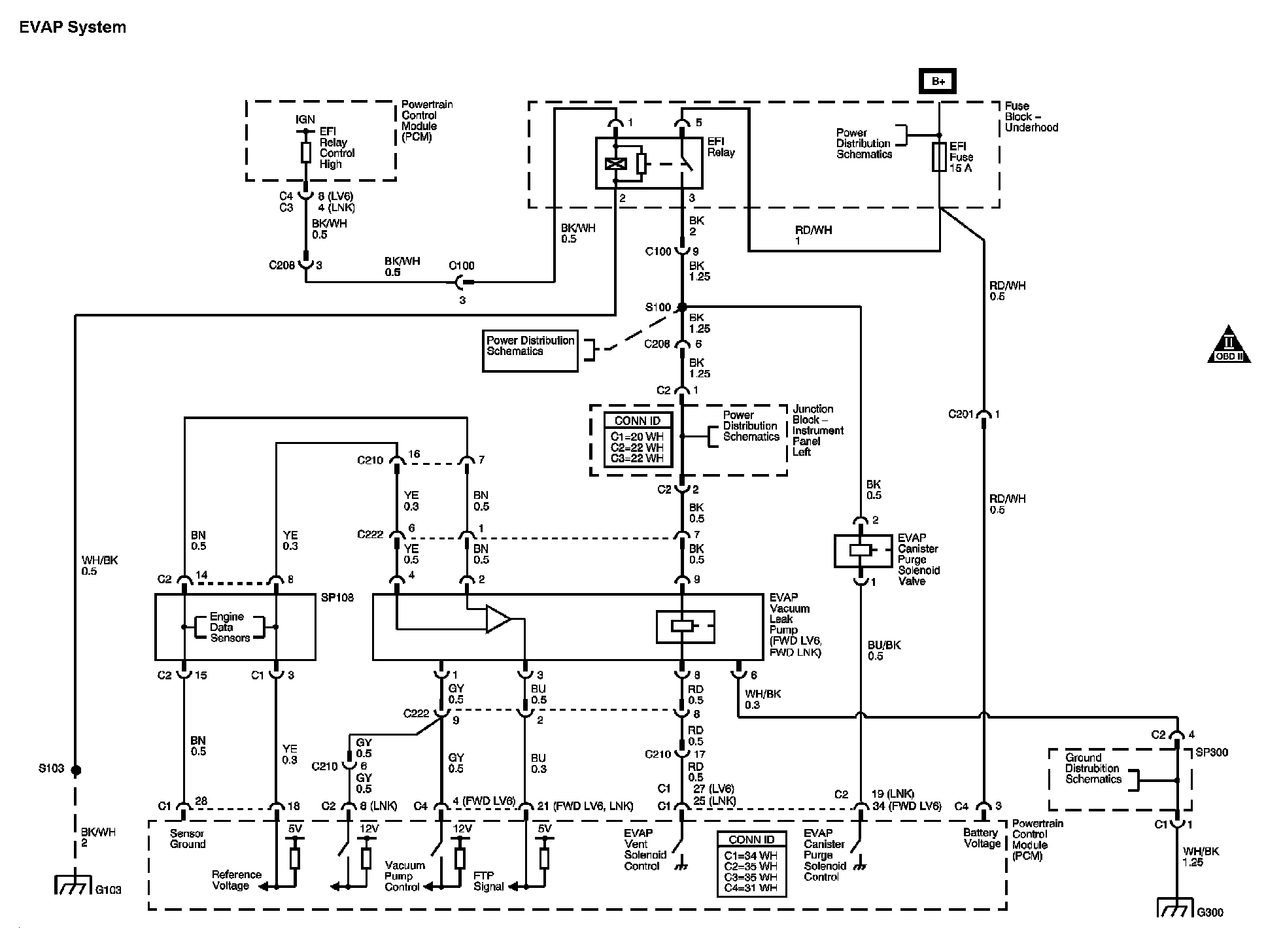

Evaporative Emission (EVAP) System

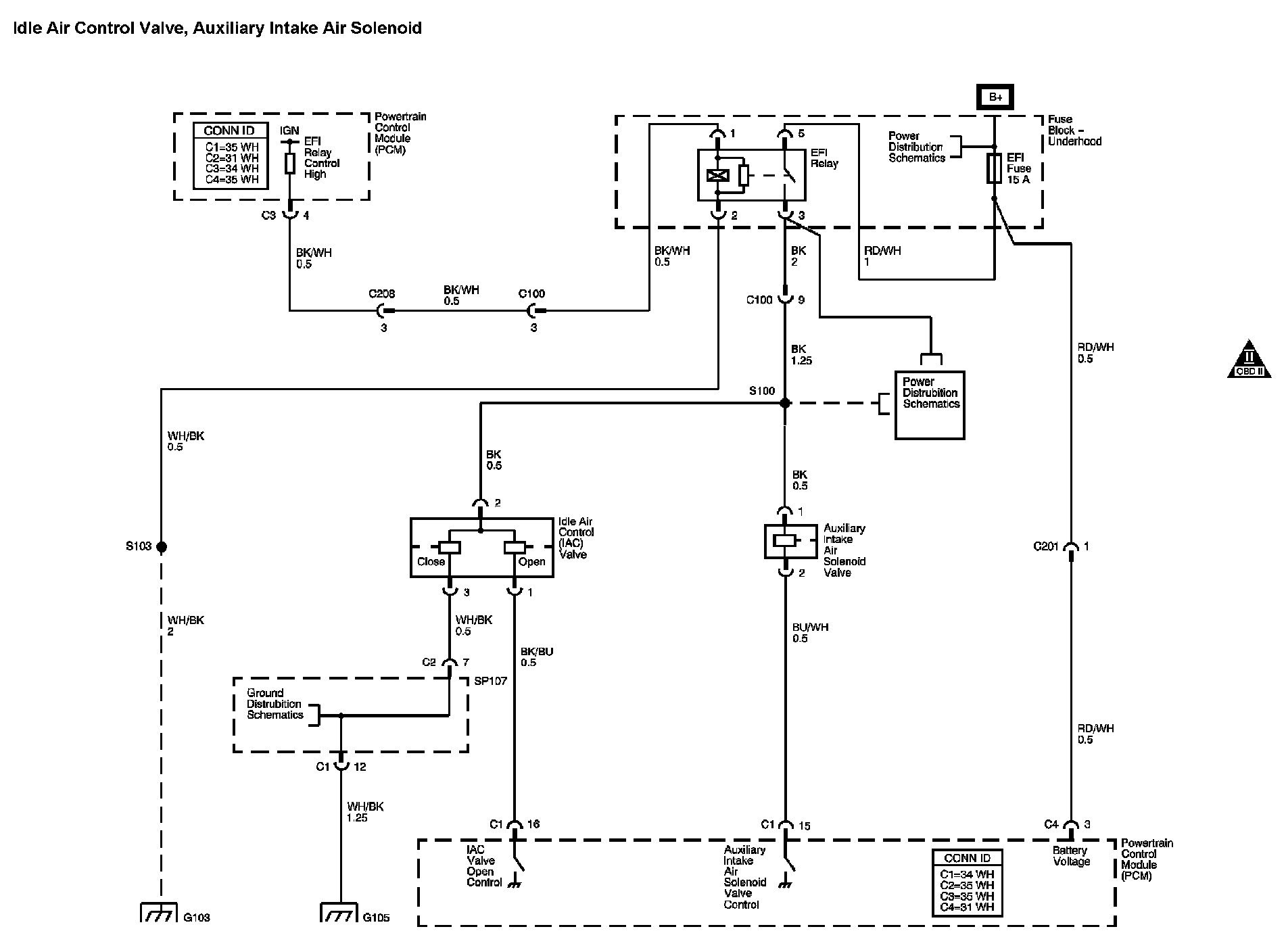

Idle Air Control (IAC) Valve and Auxiliary Intake Air Solenoid

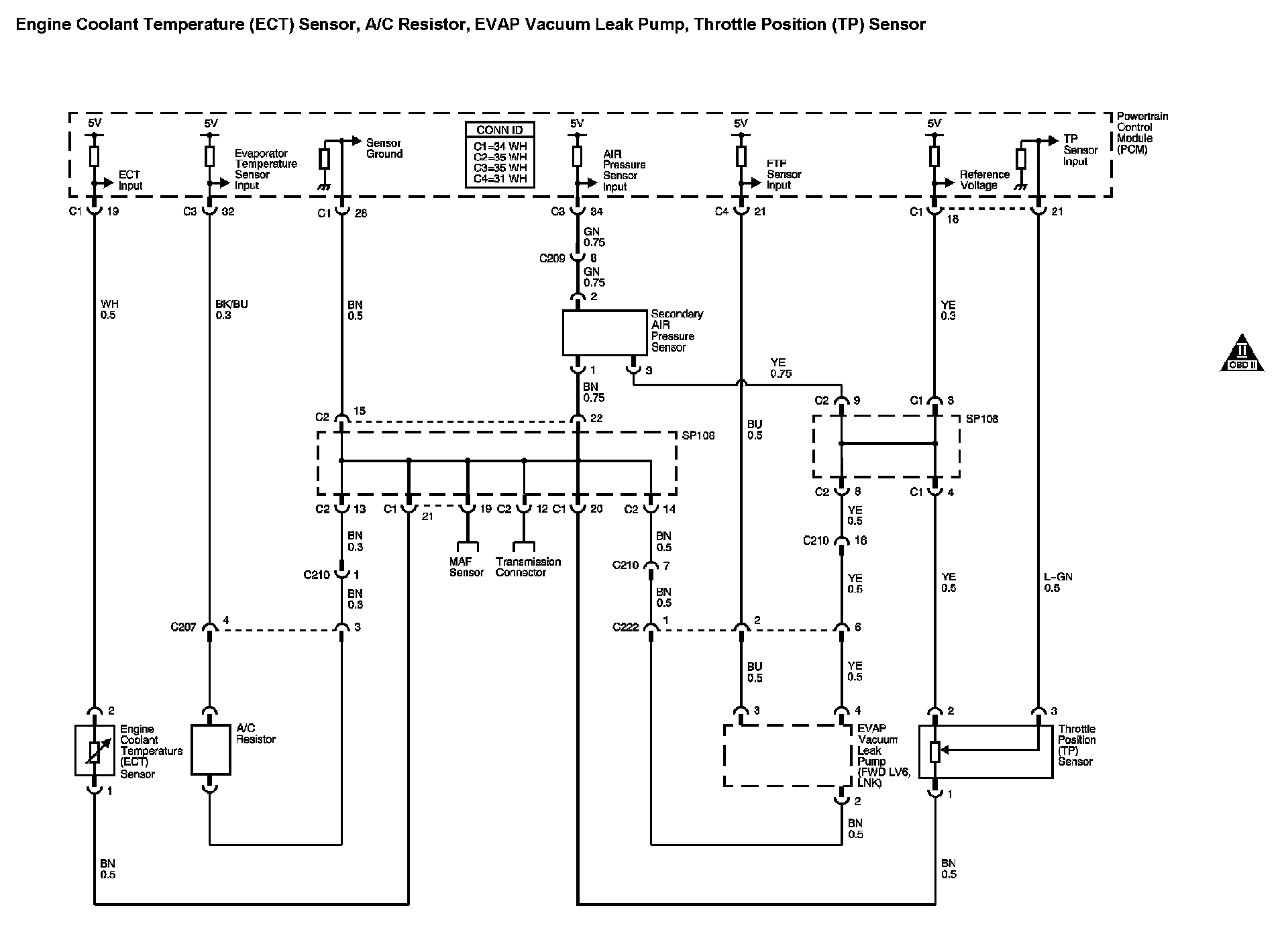

Engine Coolant Temperature (ECT) Sensor, Fuel Tank Pressure (FTP) Sensor, Throttle Position (TP) Sensor, A/C Resistor

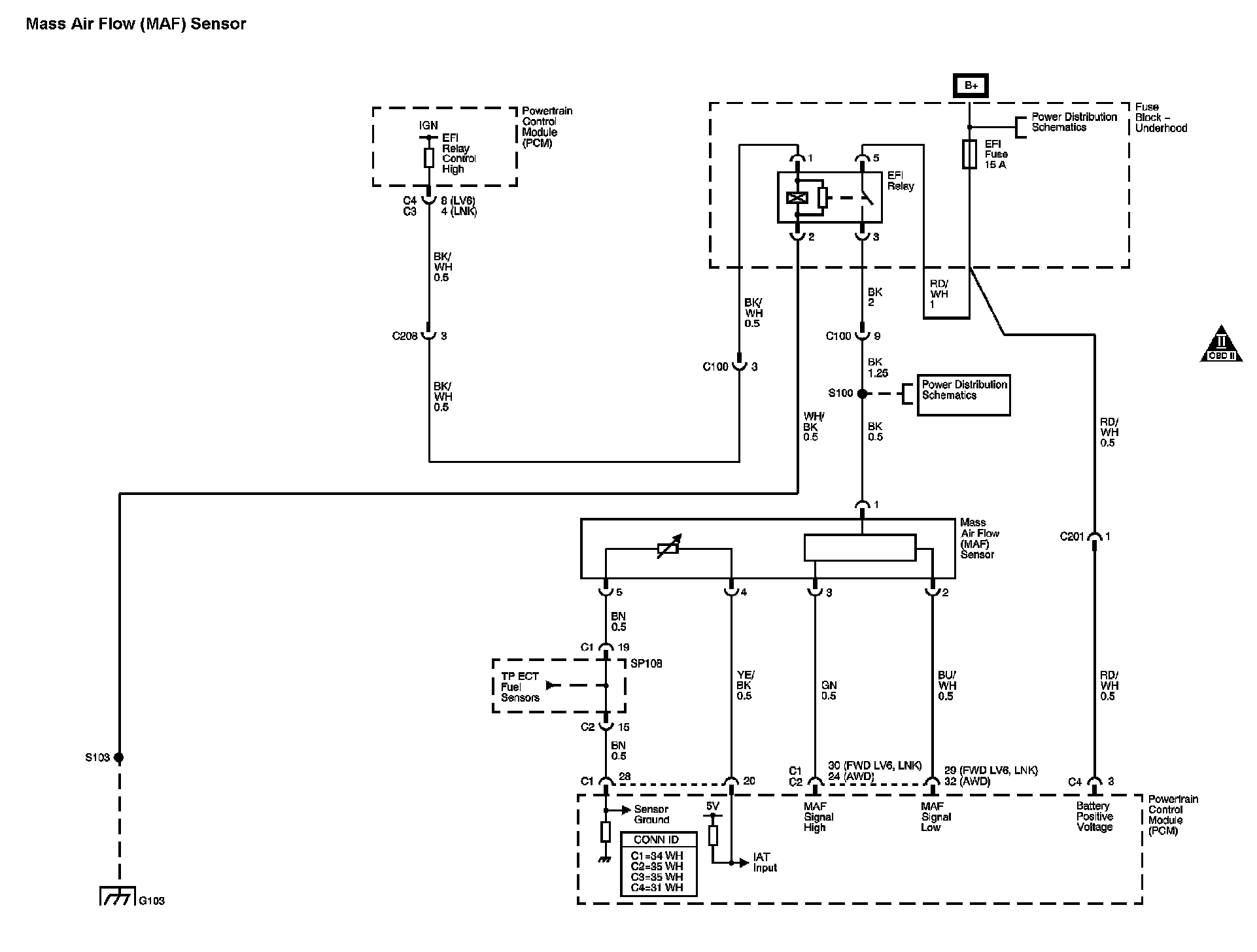

Mass Air Flow (MAF) Sensor

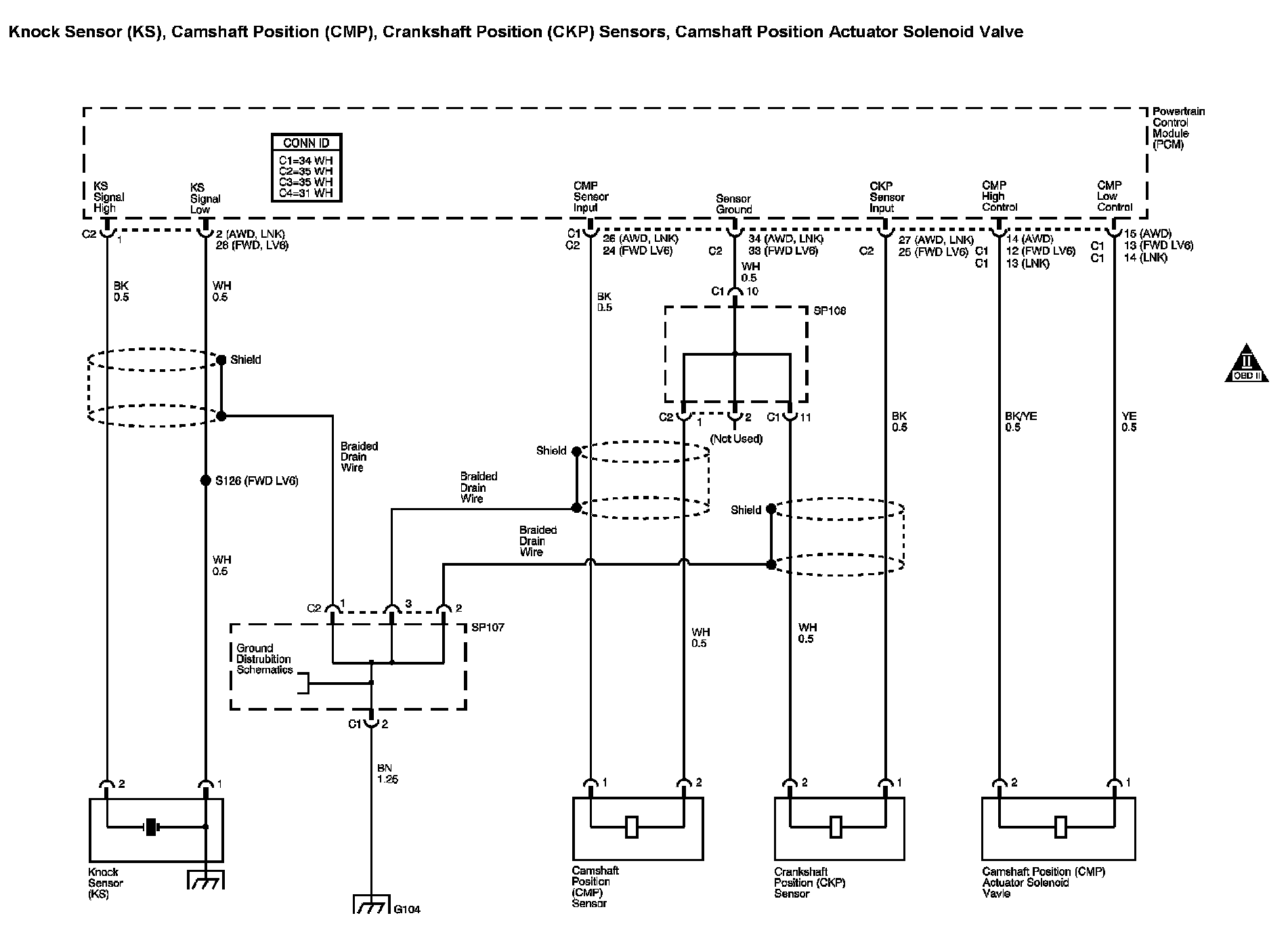

Knock Sensor (KS), Camshaft Position (CMP) Sensor, Crankshaft Position (CKP) Sensor, CMP Actuator Solenoid Valve

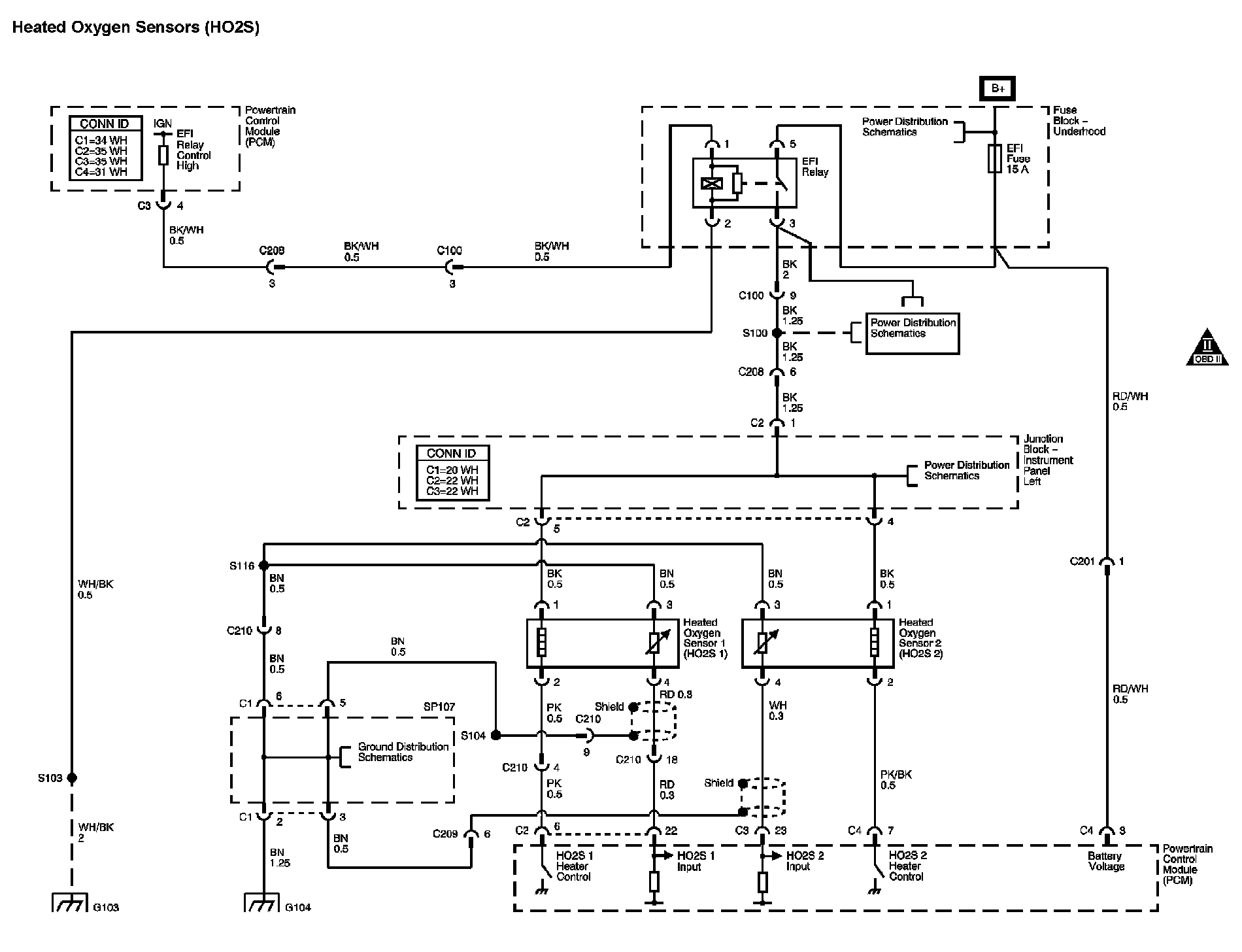

Heated Oxygen Sensor (HO2S)







Vehicle Speed Sensor (VSS)

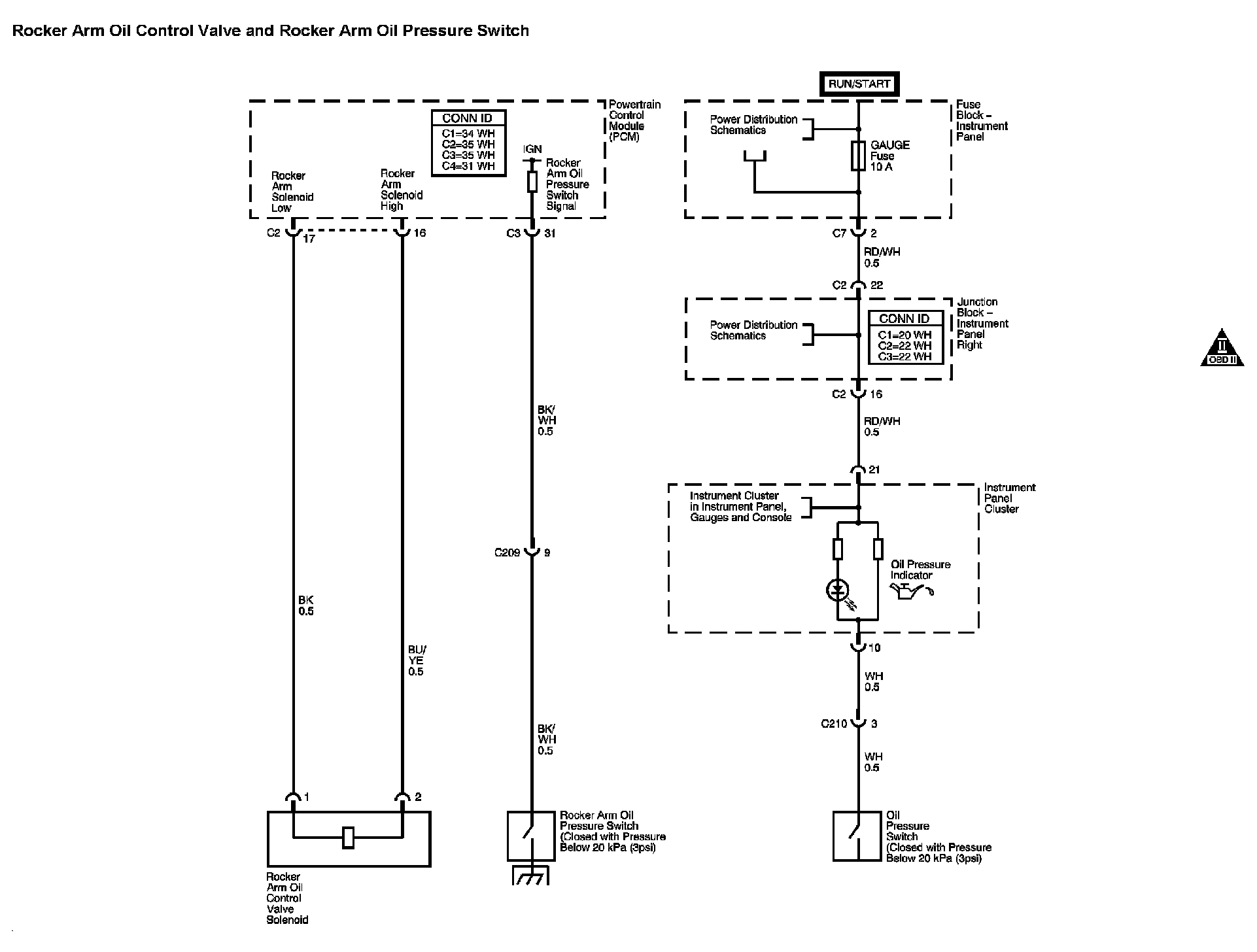

Rocker Arm Oil Control Solenoid Valve and Rocker Arm Oil Pressure Switch

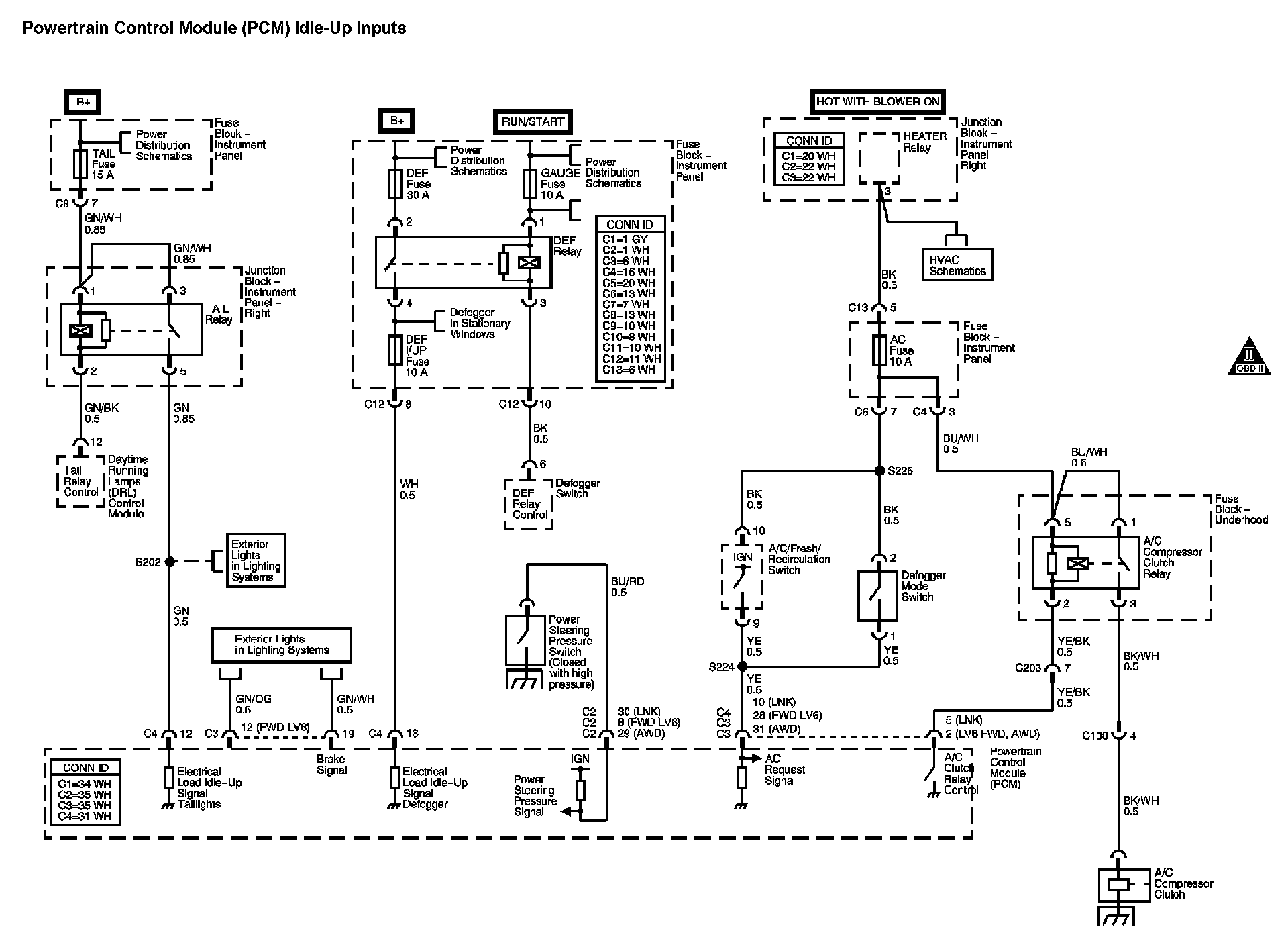

Powertrain Control Module (PCM) Idle-Up Inputs







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
