Air Injection Vacuum Control Solenoid Valve
Air Injection Vacuum Control Solenoid Valve

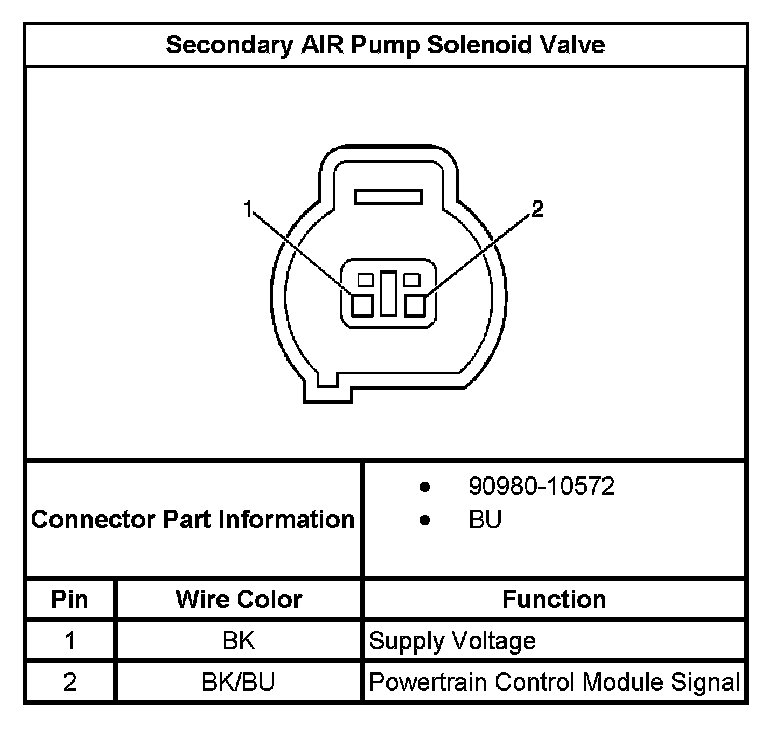

Secondary AIR Pump Solenoid Valve:

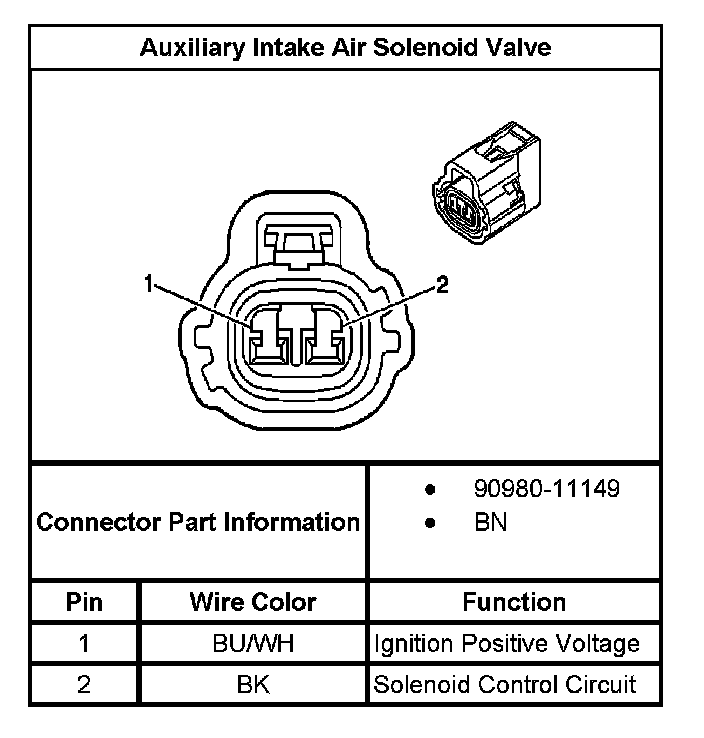

Auxiliary Intake Air Solenoid Valve:
