Home >> Pontiac >> 2006 >> Vibe FWD L4-1.8L VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag >> Inflatable Restraint Driver Inflatable Module

Inflatable Restraint Driver Inflatable Module

SIR Driver Inflatable Module C1:

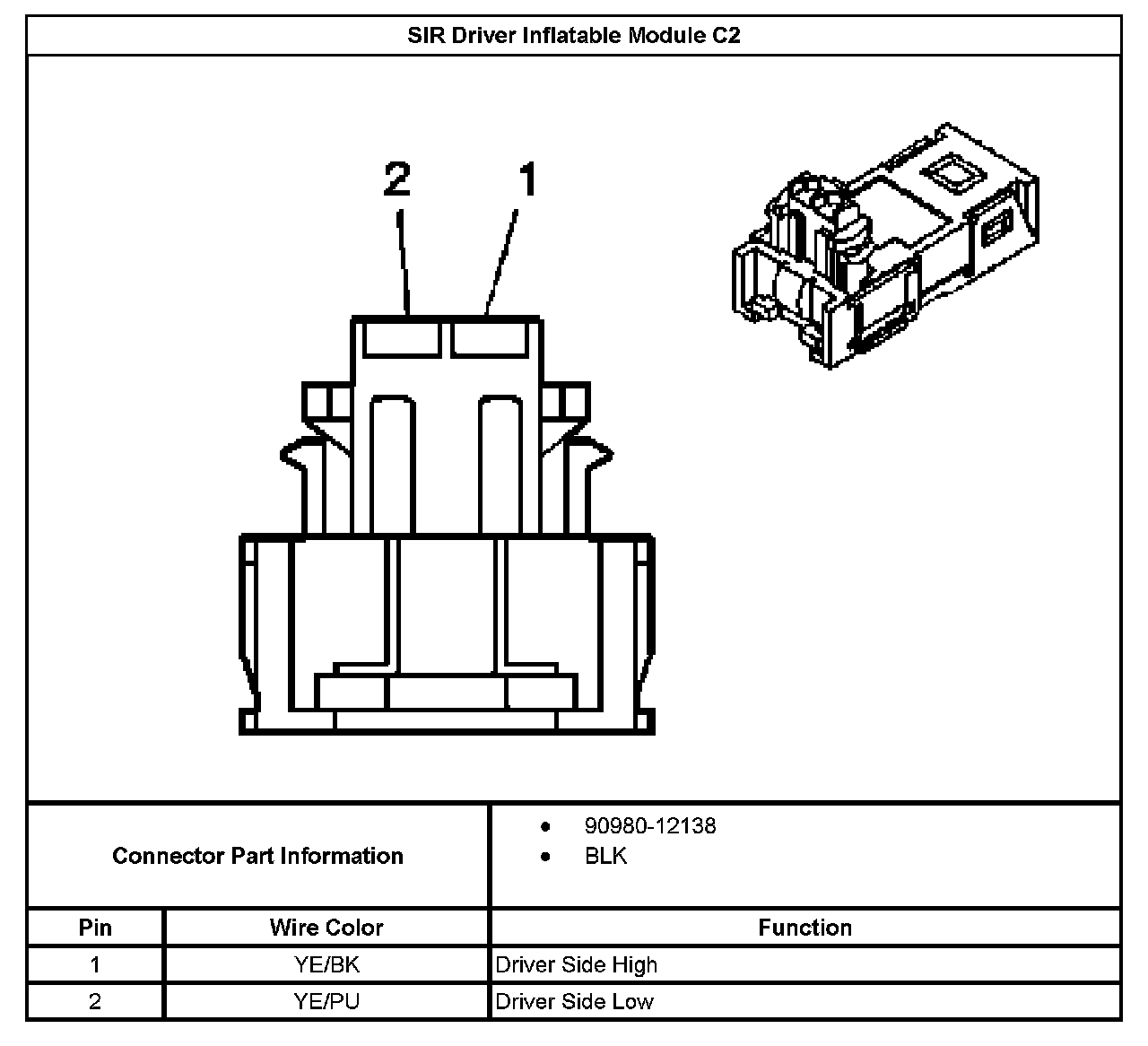

SIR Driver Inflatable Module C2:
