Pontiac
>>
2006
>>
Vibe AWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Transfer Case
>>
Vibe Transfer Case
Vibe Transfer Case
Component Locator
Transfer Case

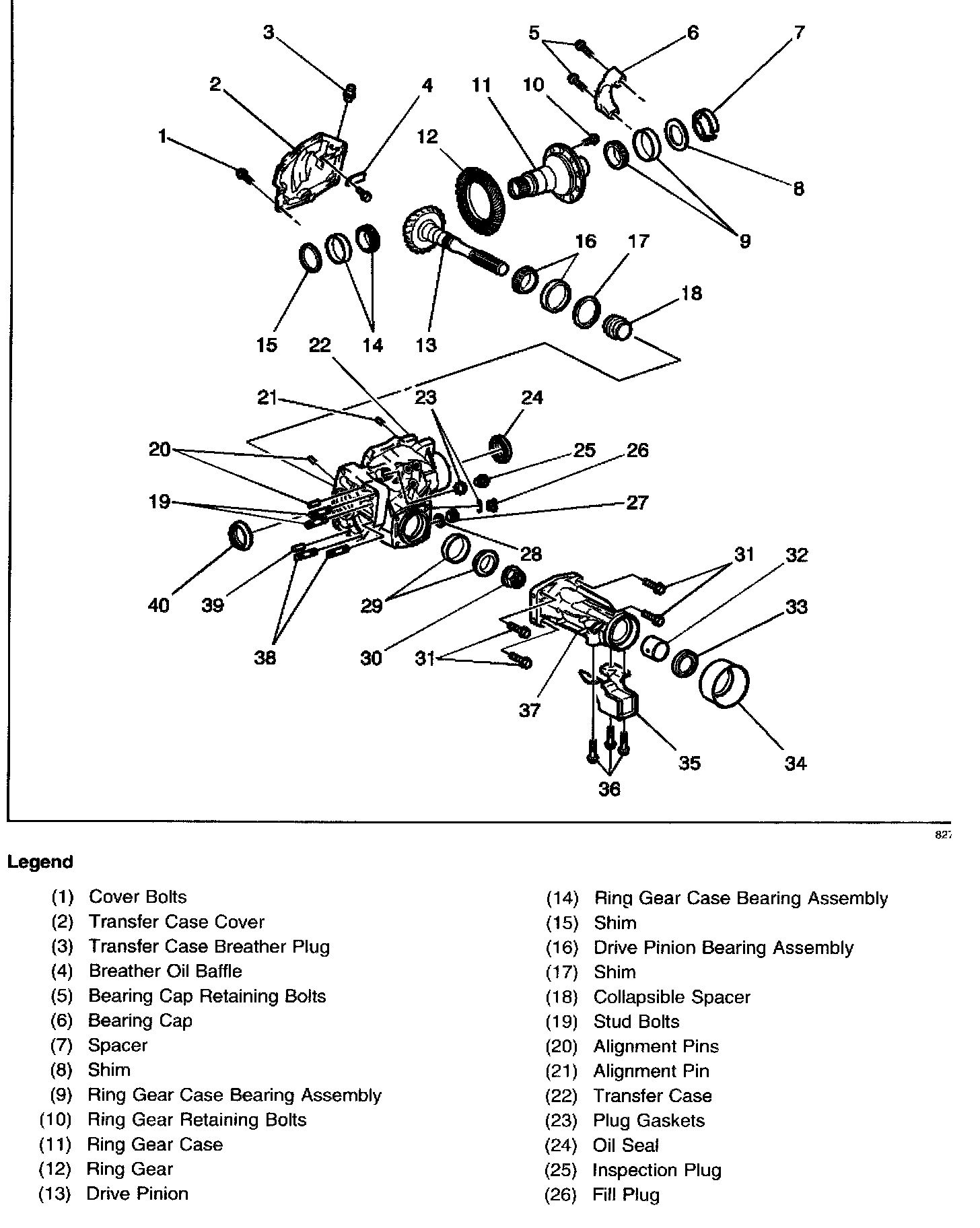

Disassembled View
