Home >> Pontiac >> 2006 >> Vibe AWD L4-1.8L VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C400 - C499 >> 401

C400 - C499: 401

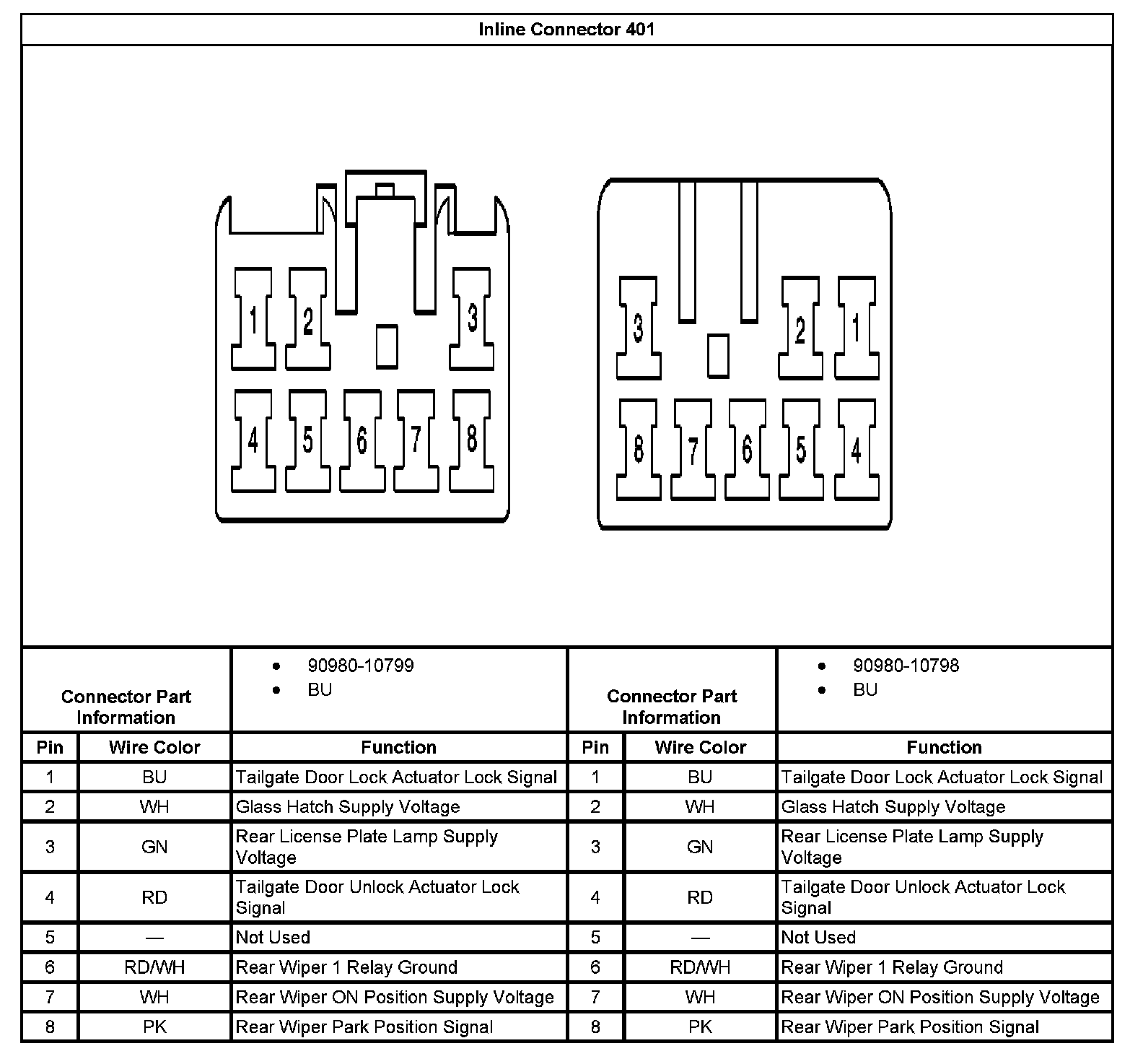

Inline Connector 401:
