Pontiac
>>
2006
>>
Vibe AWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

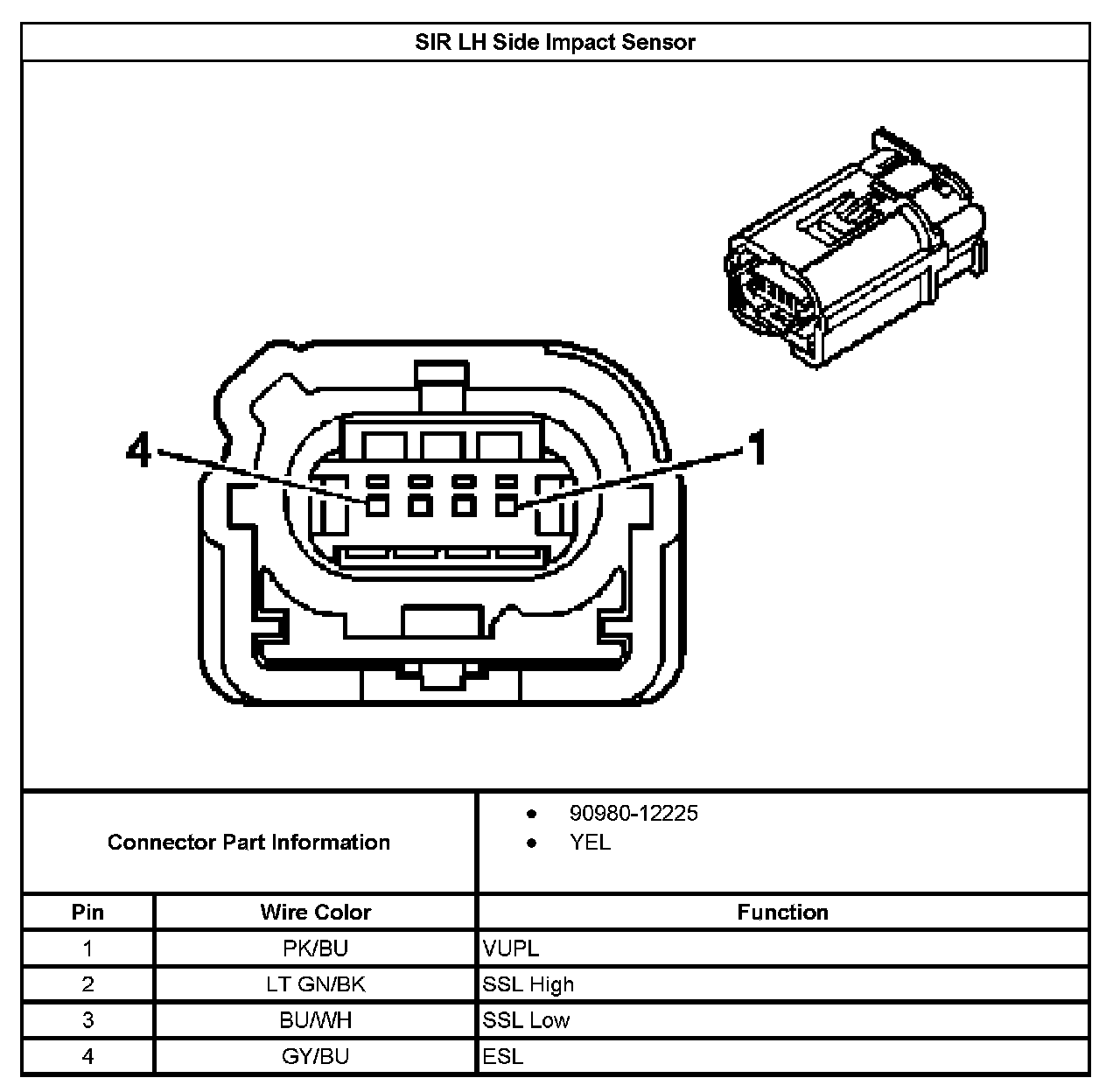

SIR LH Side Impact Sensor
SIR LH Side Impact Sensor
SIR LH Side Impact Sensor:
