Fuse Block - Instrument Panel C3 With Sunroof
Fuse Block - Instrument Panel C3 With Sunroof

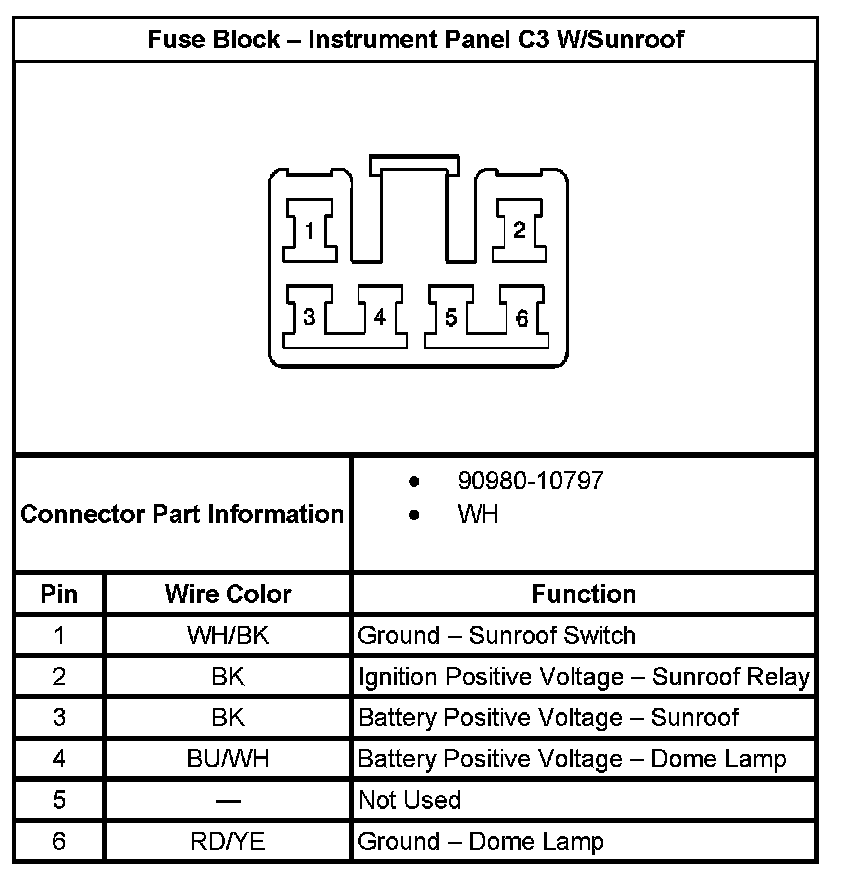

Fuse Block - Instrument Panel C3 With Sunroof:
