Amplifier: Service and Repair

AMPLIFIER REPLACEMENT

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Remove the front passenger seat.

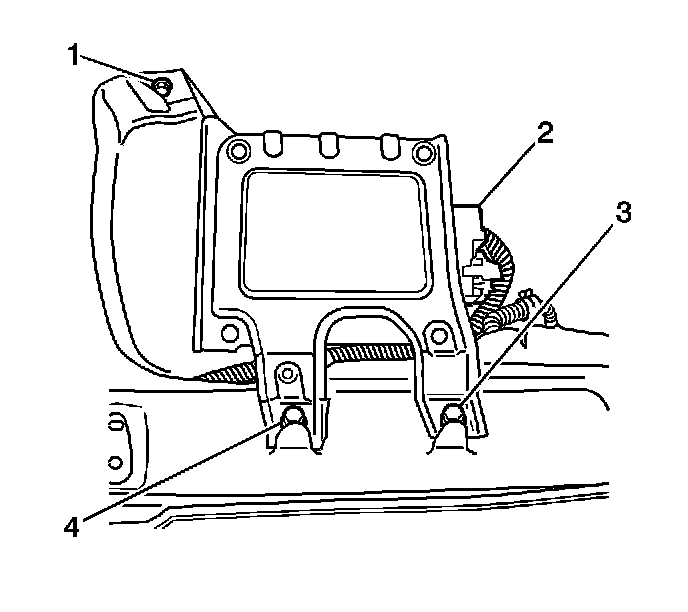

3. Disconnect the electrical connector (2).
4. Remove the 3 bolts (1, 3, 4).
5. Remove the amplifier from the vehicle.

INSTALLATION PROCEDURE




1. Secure the amplifier to the vehicle with the 3 bolts (1, 3,4).

Tighten the 3 bolts to 10 N.m (89 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Connect the electrical connector (2).
3. Install the front passenger seat.
4. Connect the negative battery cable.
