Home
>>
Pontiac
>>
2006
>>
Pursuit (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Multiple Junction Connector
>>
C300 - C399
>>
C302
C302

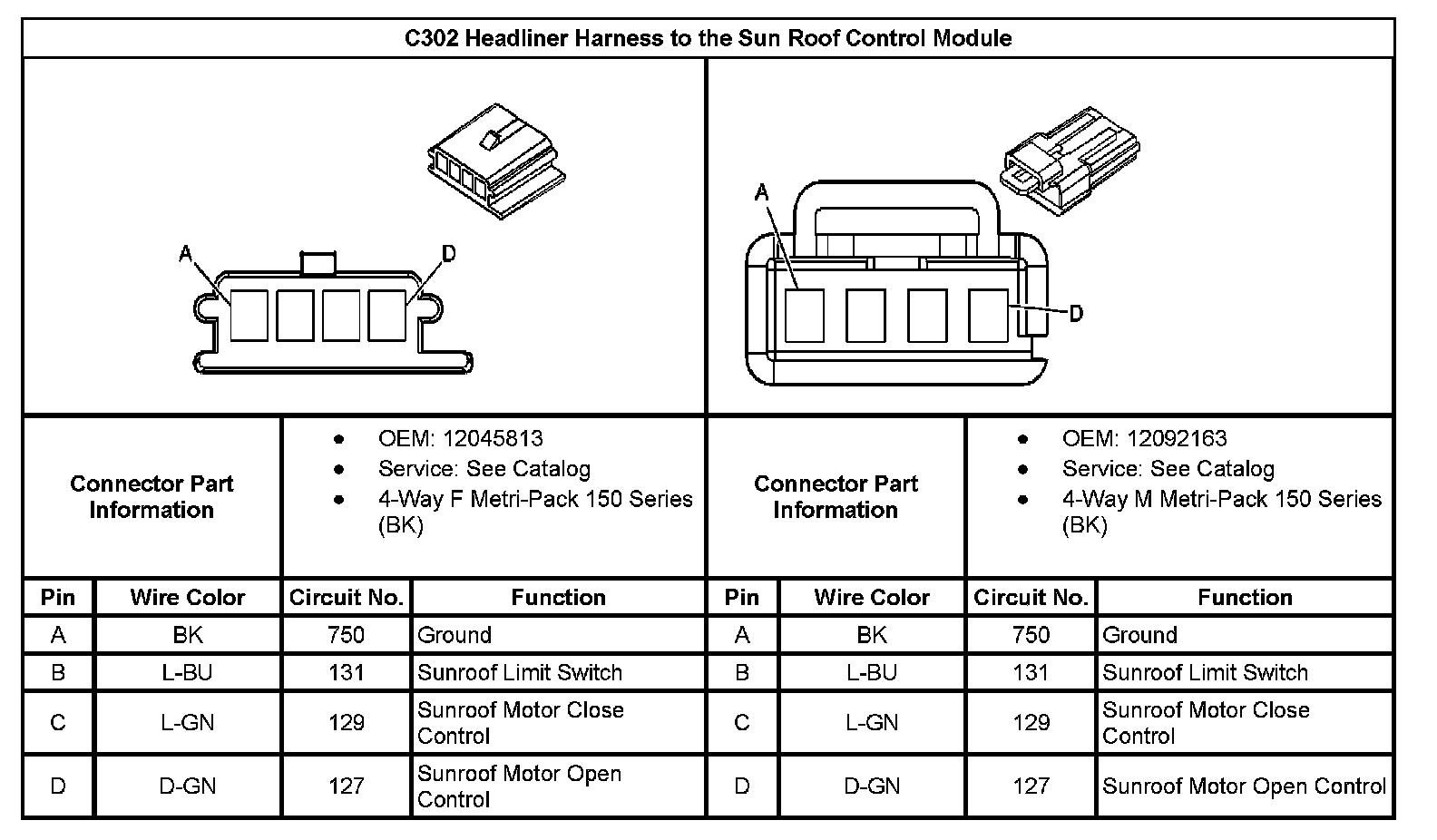

C302 Headliner Harness To The Sun Roof Control Module:
