Pontiac
>>
2006
>>
Pursuit (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C100 - C199
>>
C110
C110

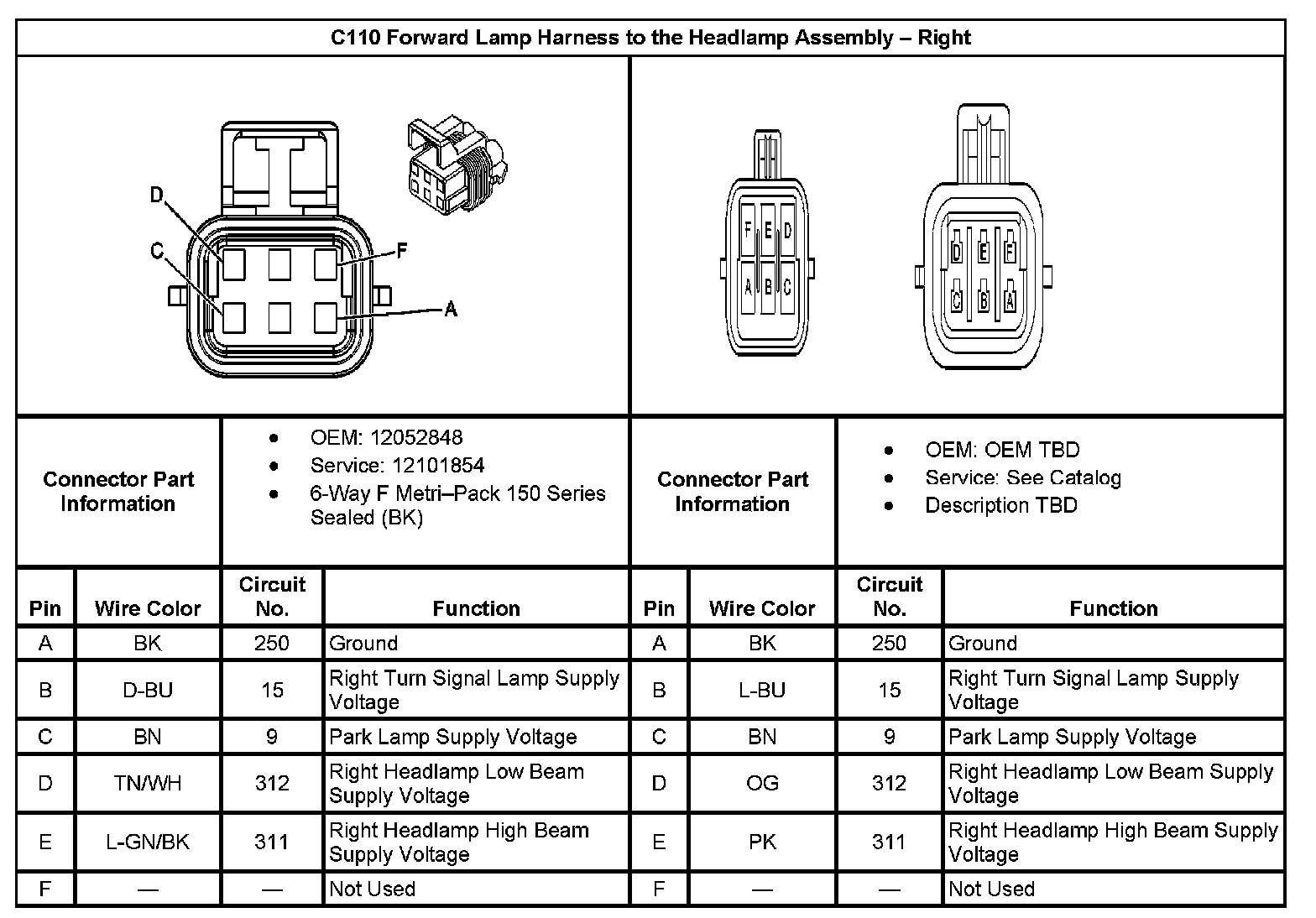

C110 Forward Lamp Harness To The Headlamp Assembly - Right:
