Shoulder Belt Guide Adjuster - Front

SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Remove the upper quarter trim panel.

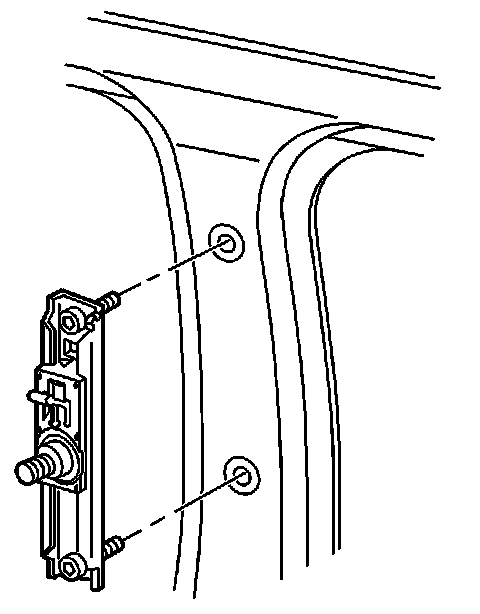

2. Remove the shoulder belt guide adjuster bracket bolts.
3. Remove the shoulder belt guide belt adjuster bracket from the upper center pillar.

INSTALLATION PROCEDURE




1. Position shoulder belt guide adjuster bracket to the upper center pillar.

IMPORTANT: Verify that the release lever at the top of the bracket is in the full up position.

2. Install the shoulder belt guide belt adjuster bracket bolts.

Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the upper quarter trim panel.
