Instrument Panel Vent - Left

AIR OUTLET REPLACEMENT - INSTRUMENT PANEL - LEFT

REMOVAL PROCEDURE




1. Pull the instrument panel (I/P) compartment access hole cover from the I/P trim pad.

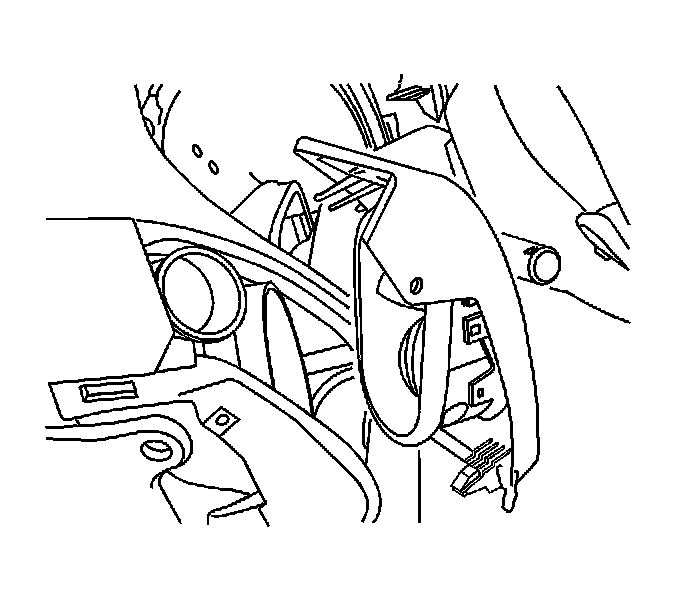

2. Remove the I/P steering column opening filler panel.

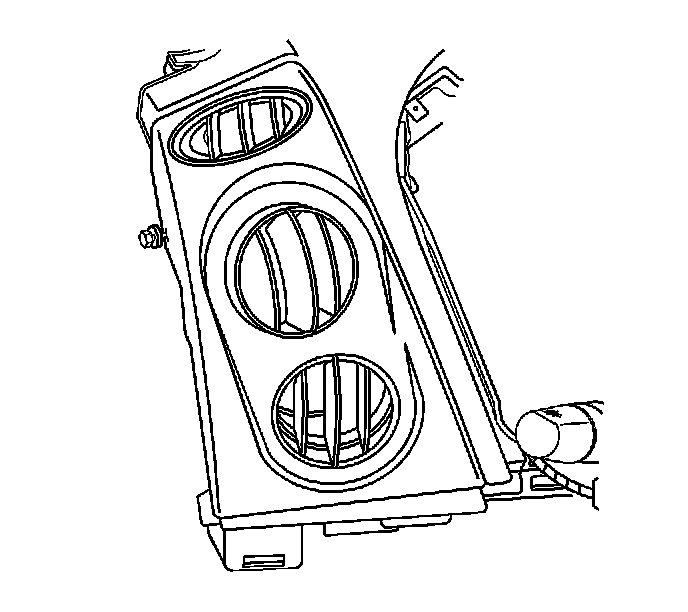

3. Remove the I/P cluster trim bezel assembly screw.




4. Remove the I/P cluster trim bezel assembly.

INSTALLATION PROCEDURE




1. Align the I/P cluster trim bezel assembly to the I/P trim pad.




2. Install the I/P cluster trim bezel assembly screw.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screw to 2 N.m (18 lb in).

3. Install the steering column opening filler panel.




4. Install the I/P compartment access hole cover.
