Seat Belt: Service and Repair

SEAT BELT REPLACEMENT - CENTER REAR

REMOVAL PROCEDURE




1. Remove the rear seat cushion.

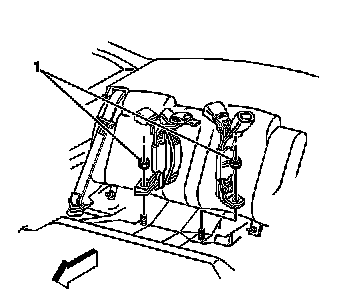

2. Remove the center rear seat belt nuts (1).
3. Remove the center rear seat belts from the vehicle.

INSTALLATION PROCEDURE




1. Install the center rear seat belts to the vehicle.

IMPORTANT: Verify that the rear seat belt anchors are installed in their proper orientation.

2. Install the center rear seat belt nuts (1).

Tighten the nuts to 42 N.m (31 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the rear seat cushion.

IMPORTANT: Be sure to route the buckle correctly through the seat cushion.
