Rear

SEAT BELT RETRACTOR REPLACEMENT - REAR

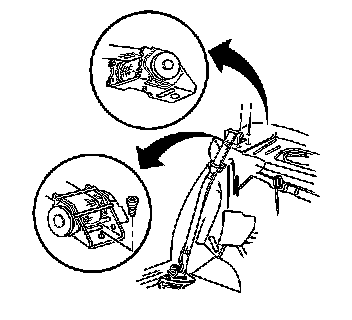

REMOVAL PROCEDURE




1. Remove the rear seat cushion.
2. Remove the seat back.
3. Remove the rear window trim panel.
4. If you are removing a side retractor, remove the retractor anchor bolt from the floorpan.




5. Remove the retractor bolt.
6. Remove the rear seat retractor from the vehicle.

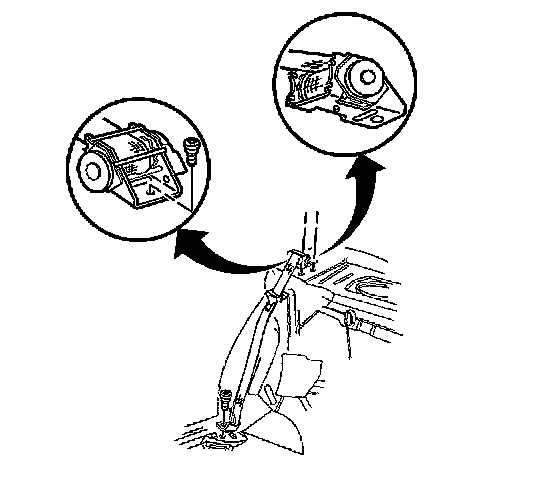

INSTALLATION PROCEDURE




1. Position the rear seat retractor in the vehicle.
2. Install the rear seat retractor bolt.

Tighten the bolt to 68 N.m (50 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: Position the retractor alignment tabs.




3. If you are installing a side retractor, install the retractor side belt anchor bolt to the floorpan.

Tighten the bolt to 42 N.m (31 lb ft).

4. Install the rear window trim panel.
5. Install the rear seat back.
6. Install the seat cushion.
