Home
>>
Pontiac
>>
2006
>>
Grand Prix V6-3.8L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C100
C100

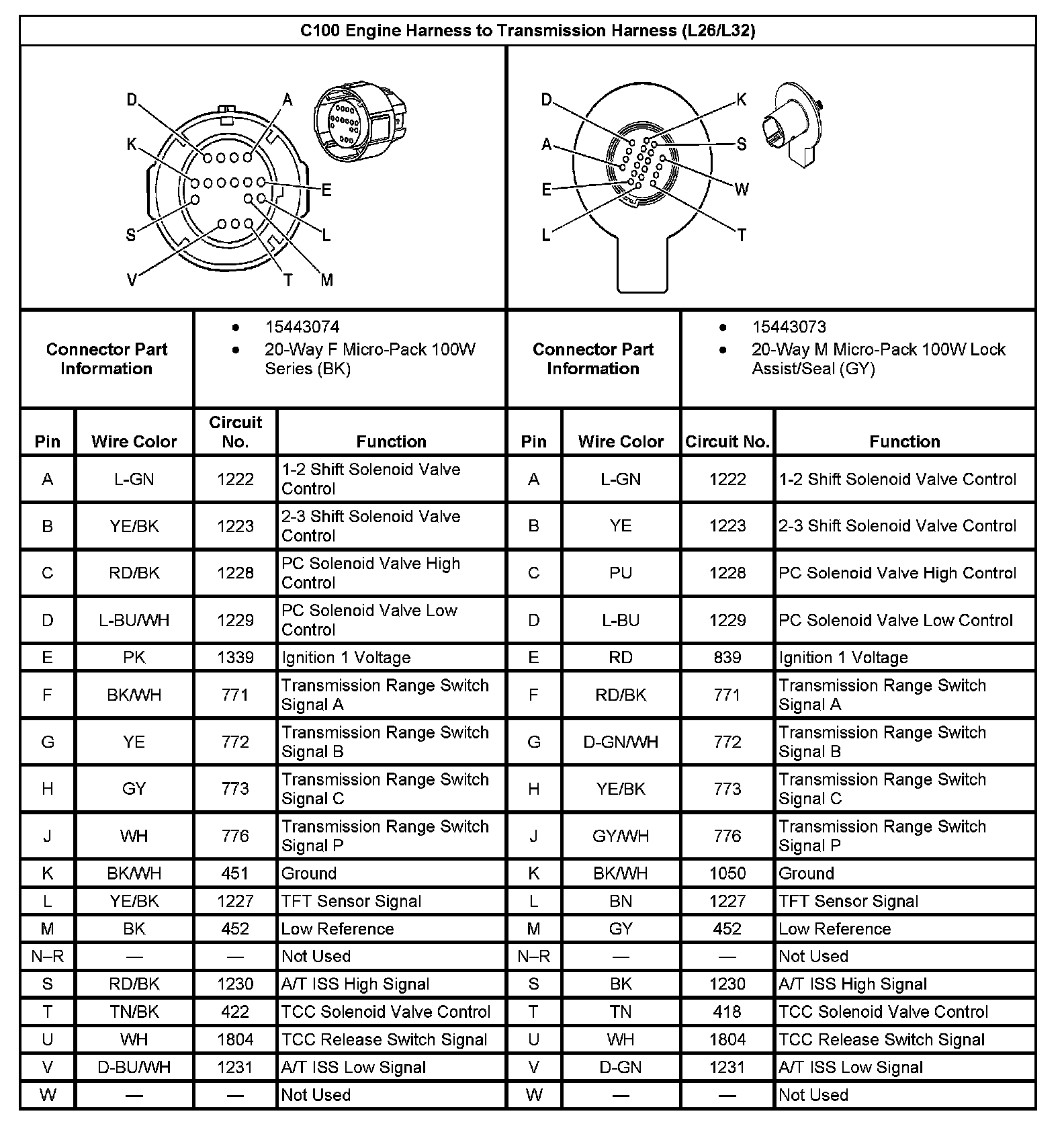

C100 Engine Harness To Transmission Harness:
