Engine Mount Strut Replacement - Right

Engine Mount Strut Replacement - Right
Removal Procedure

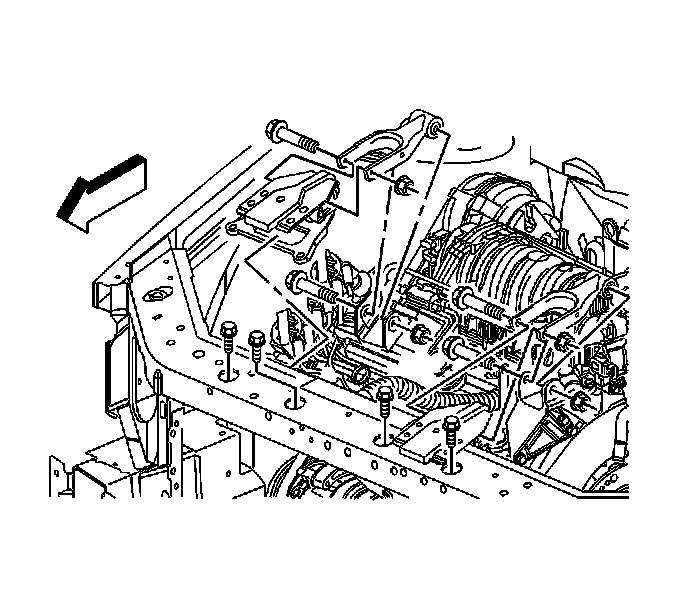

1. If equipped with an L26 engine, remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the engine.

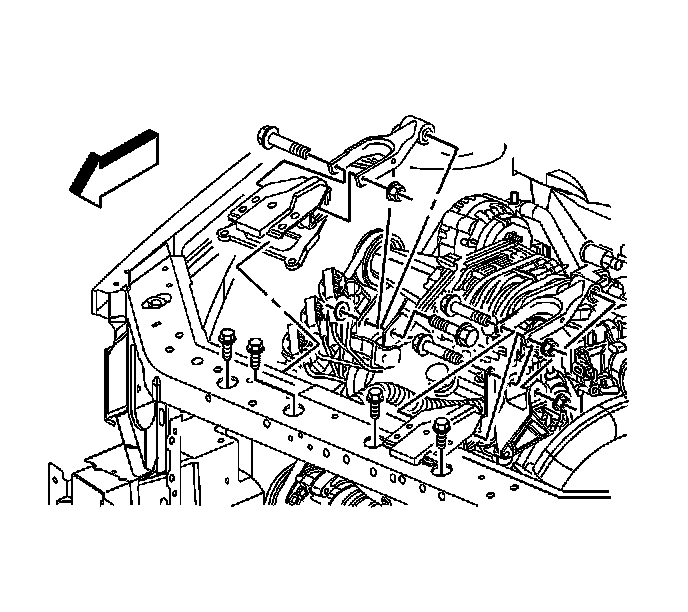

2. If equipped with a L32 engine, remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the engine.





3. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the upper radiator support.
4. Remove the engine mount strut.
5. Inspect the rubber in the engine mount strut for these conditions:
^ Hardness
^ Splitting
^ Cracking

Installation Procedure





1. Install the engine mount strut.

2. Install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the upper radiator support.
Tighten the engine mount strut bolt to 48 Nm (35 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.






3. With a L26 Engine, install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the engine.
Tighten the engine mount strut nut to 48 Nm (35 ft. lbs.).





4. With a L32 Engine, install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the engine.
Tighten the engine mount strut nut to 48 Nm (35 ft. lbs.).
