Pontiac
>>
2006
>>
GTO V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>
Instrument Panel Views
Instrument Panel Views

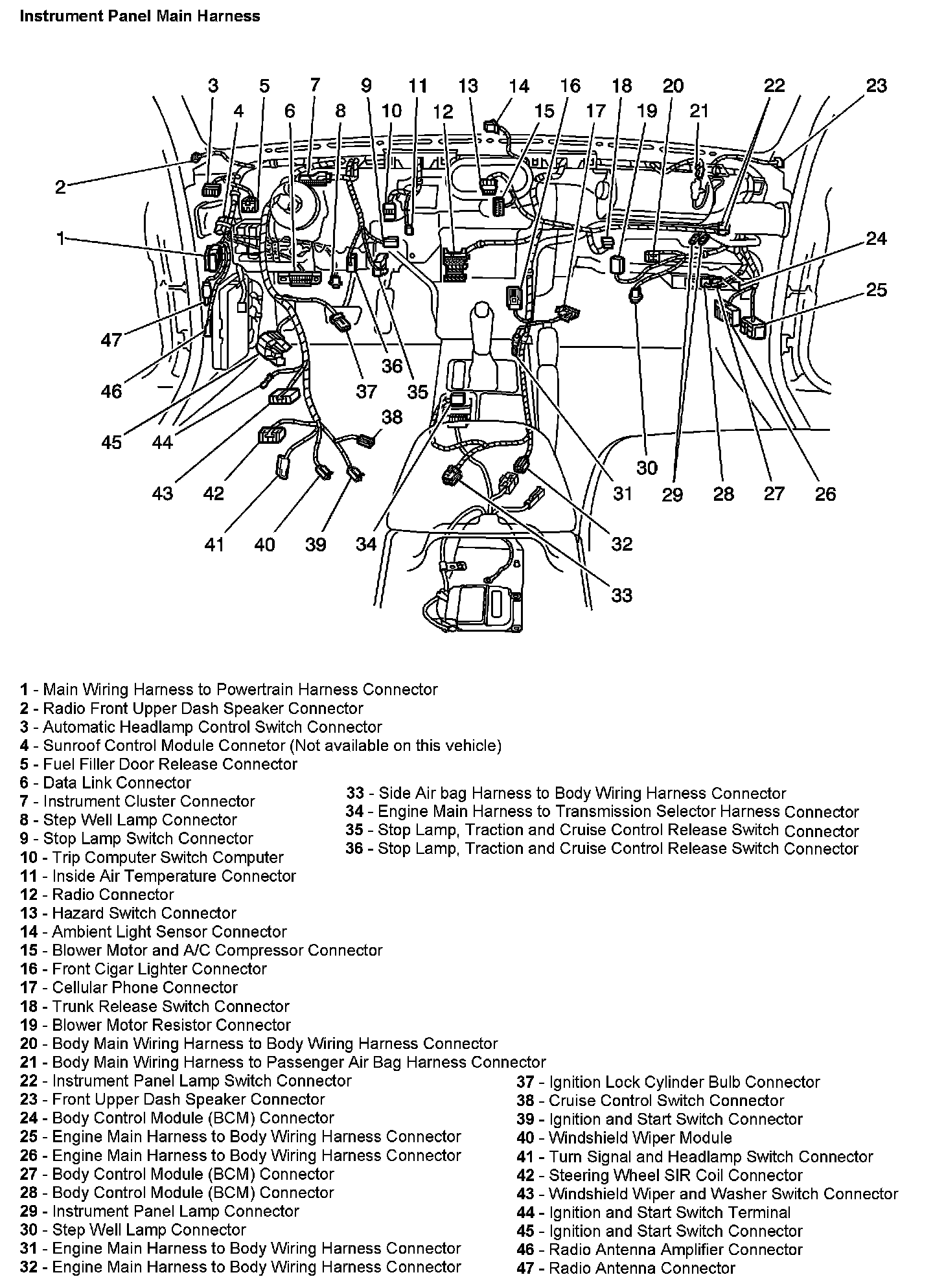

Instrument Panel Main Harness:

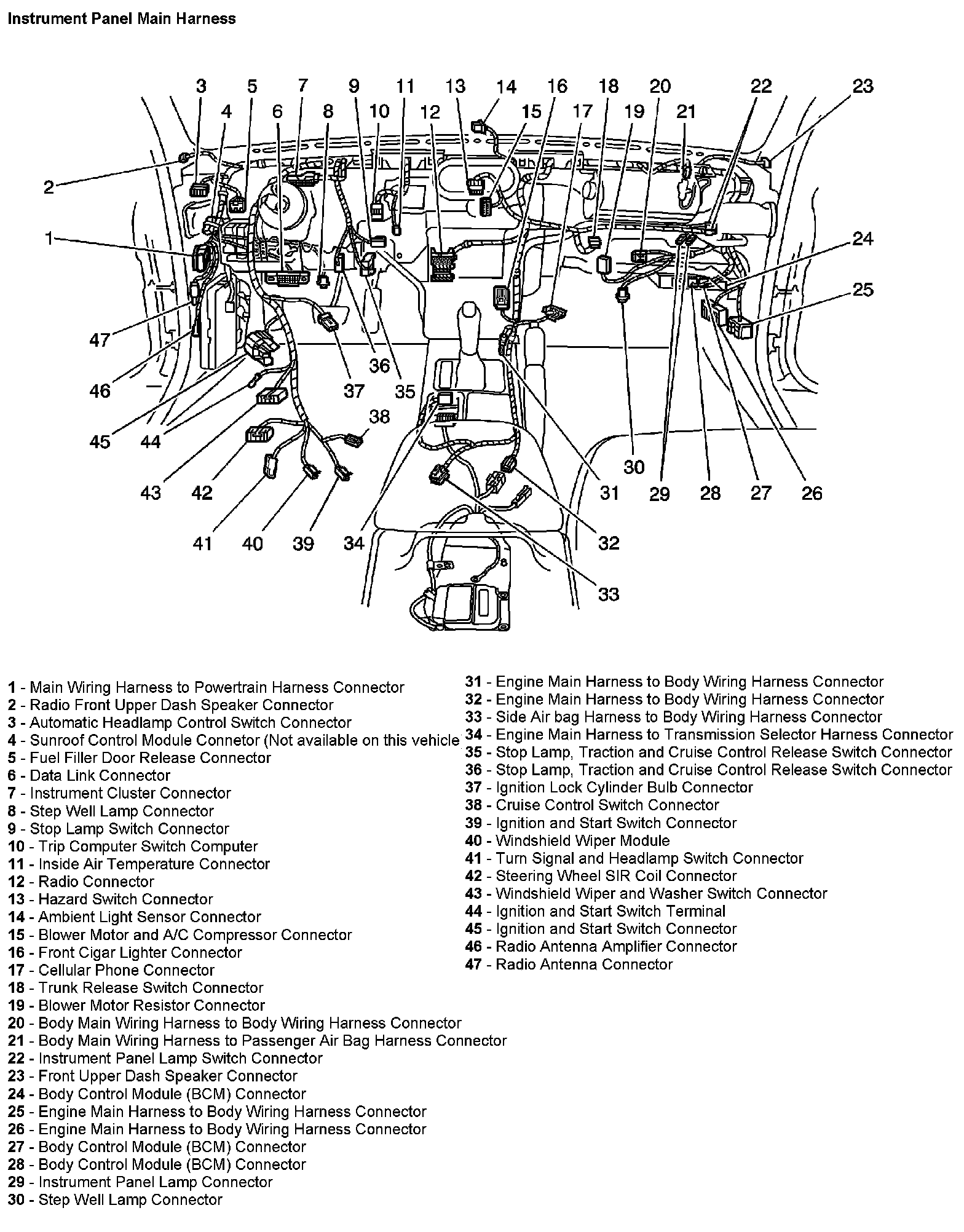

Instrument Panel Main Harness:
