Engine Compartment Views
Engine Compartment Views

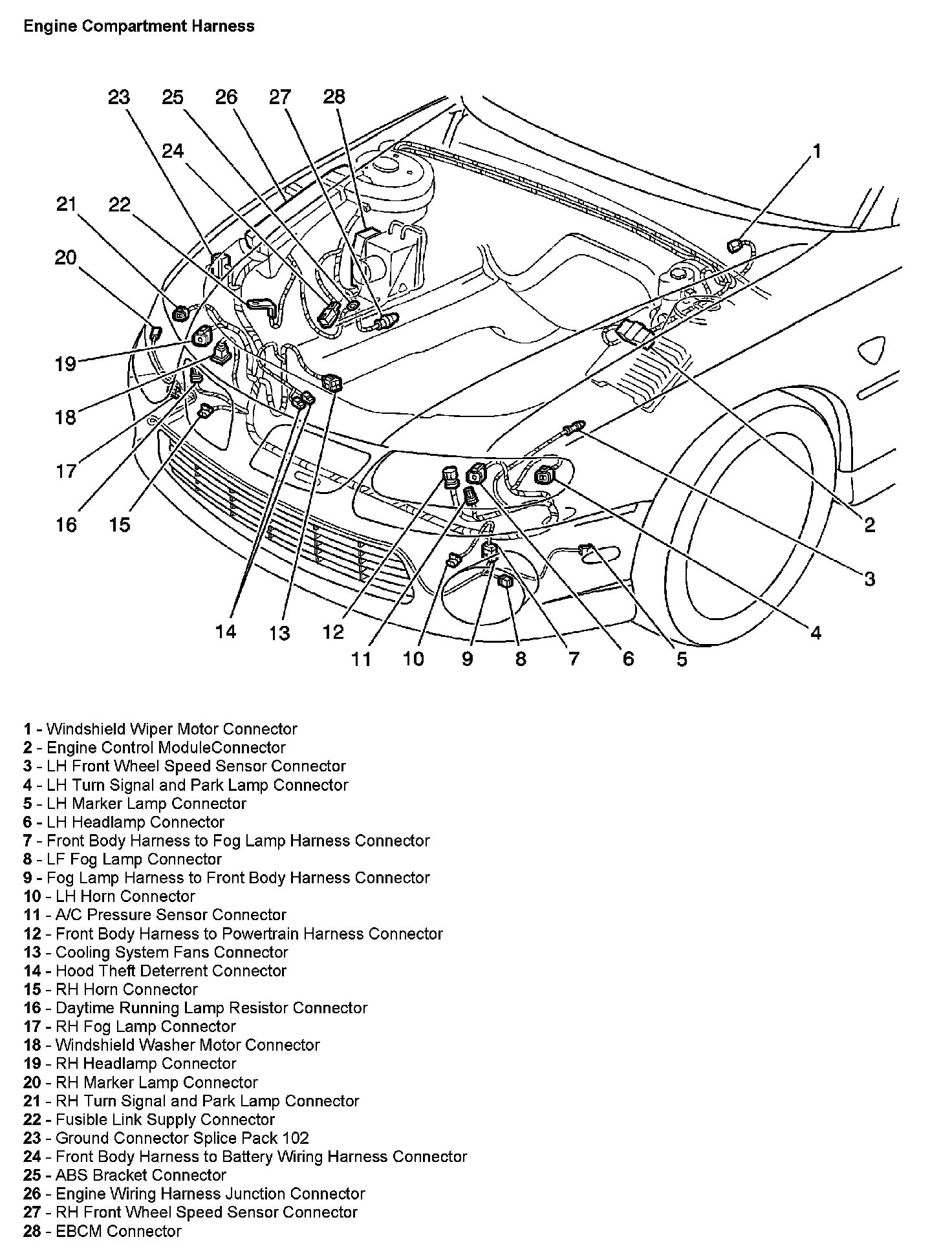

Engine Compartment Harness:
Engine Compartment Harness:
