Pontiac
>>
2006
>>
GTO V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Seat Occupant Sensor
>>
Diagrams
>>
Passenger Presence Detection Sensor - Driver
Passenger Presence Detection Sensor - Driver

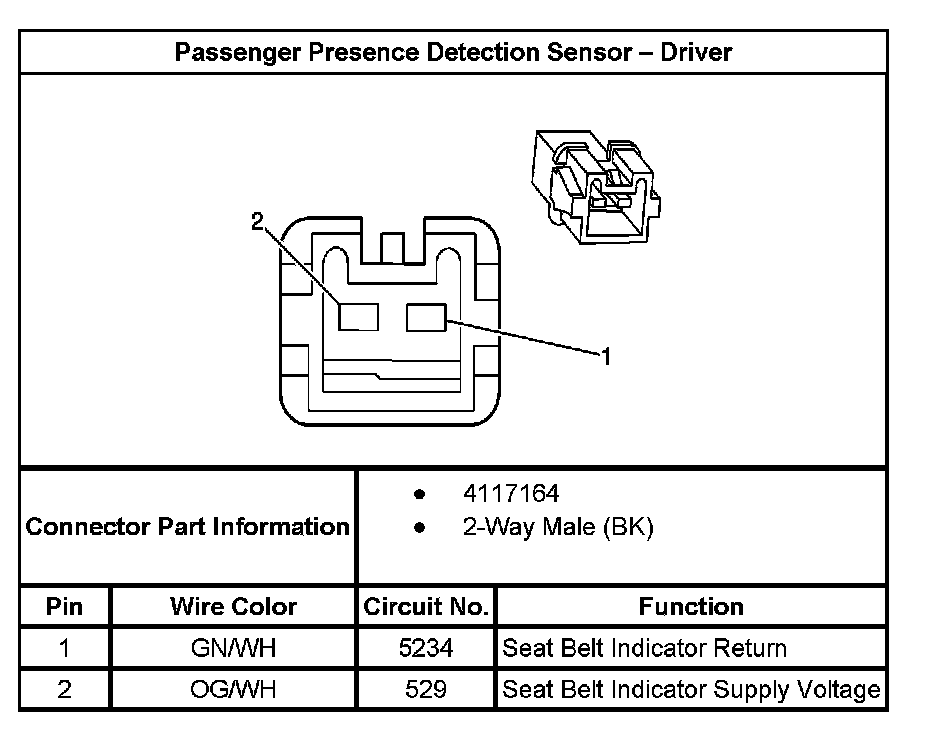

Passenger Presence Detection Sensor - Driver:
