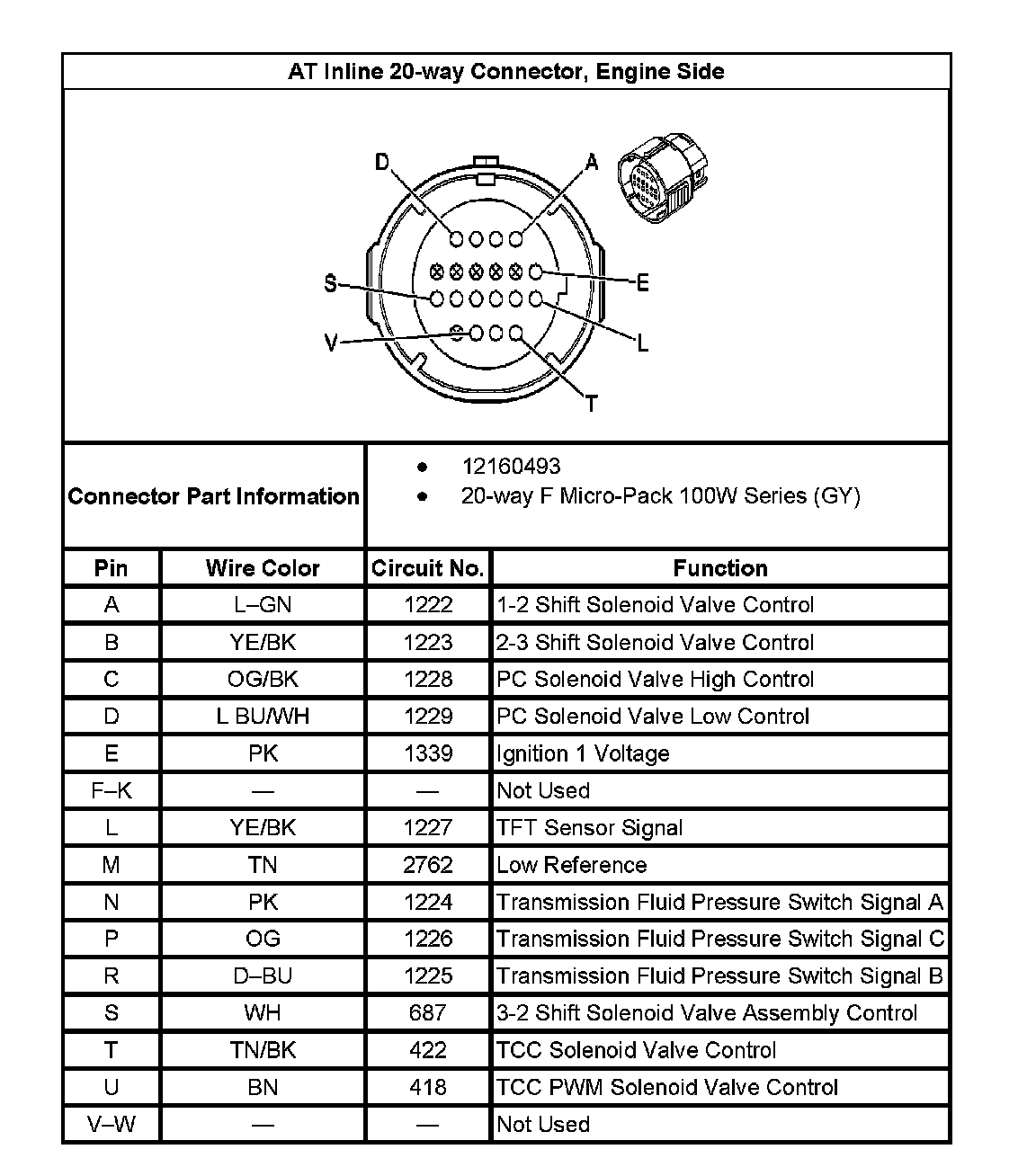

AT Inline 20-Way Connector, Engine Side
AT Inline 20-Way Connector, Engine Side
AT Inline 20-Way Connector, Engine Side:
