Pontiac
>>
2006
>>
GTO V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
Connector Views

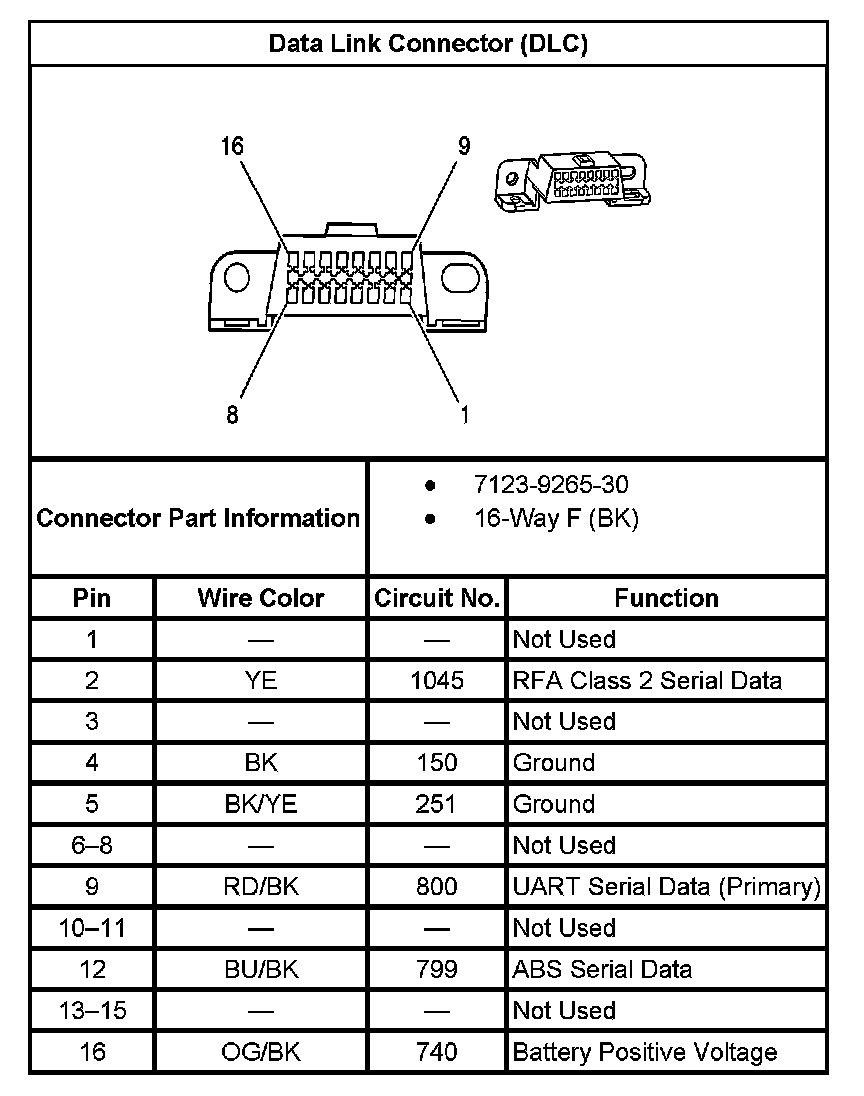

Data Link Connector (DLC):

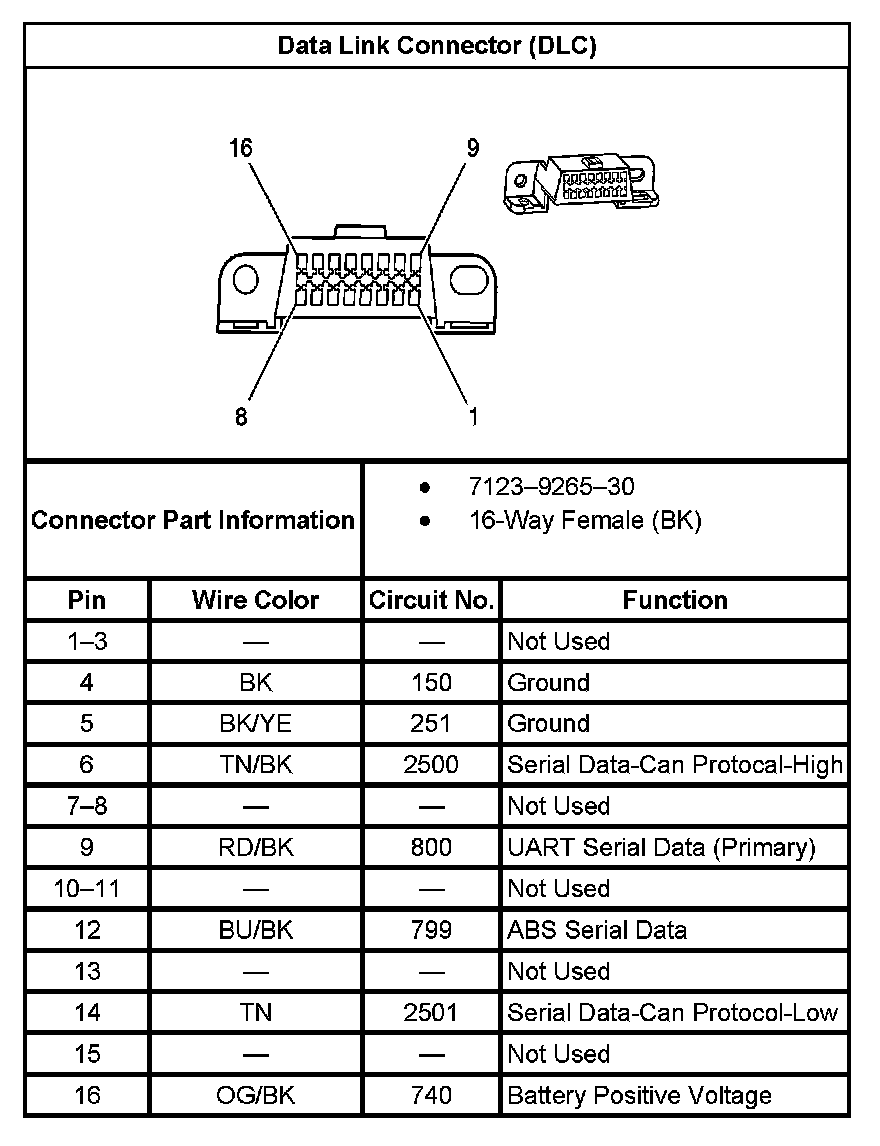

Data Link Connector (DLC):
