Cigarette Lighter: Diagrams

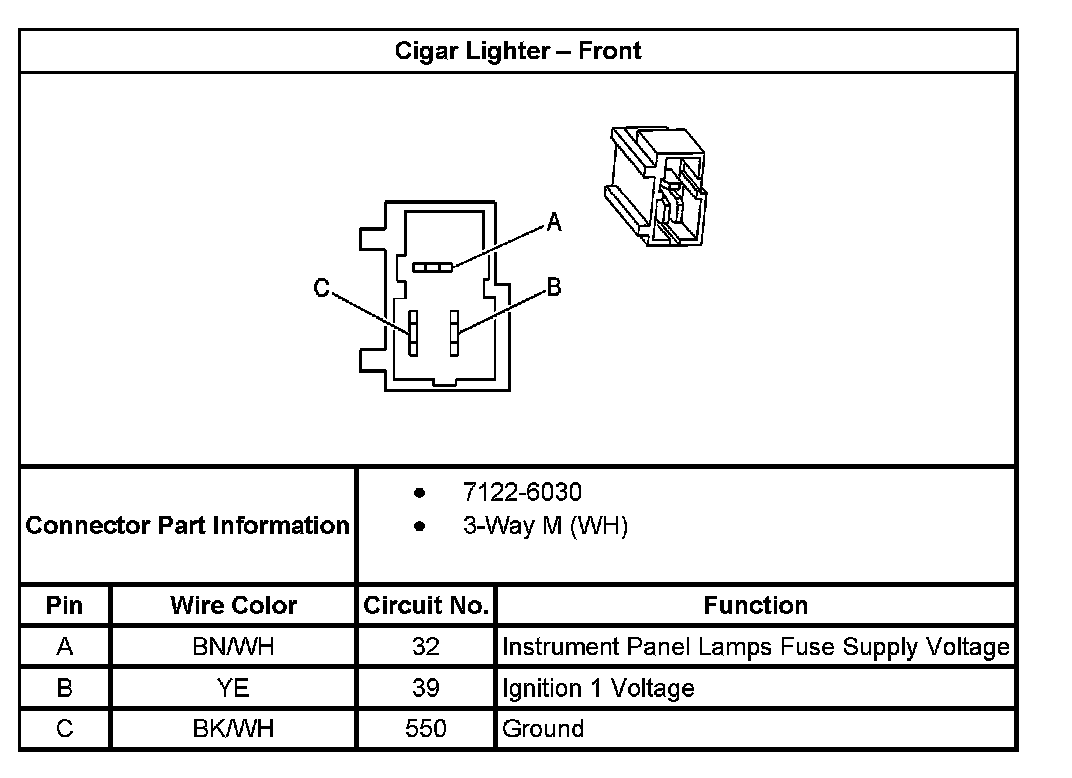

Cigar Lighter - Front:

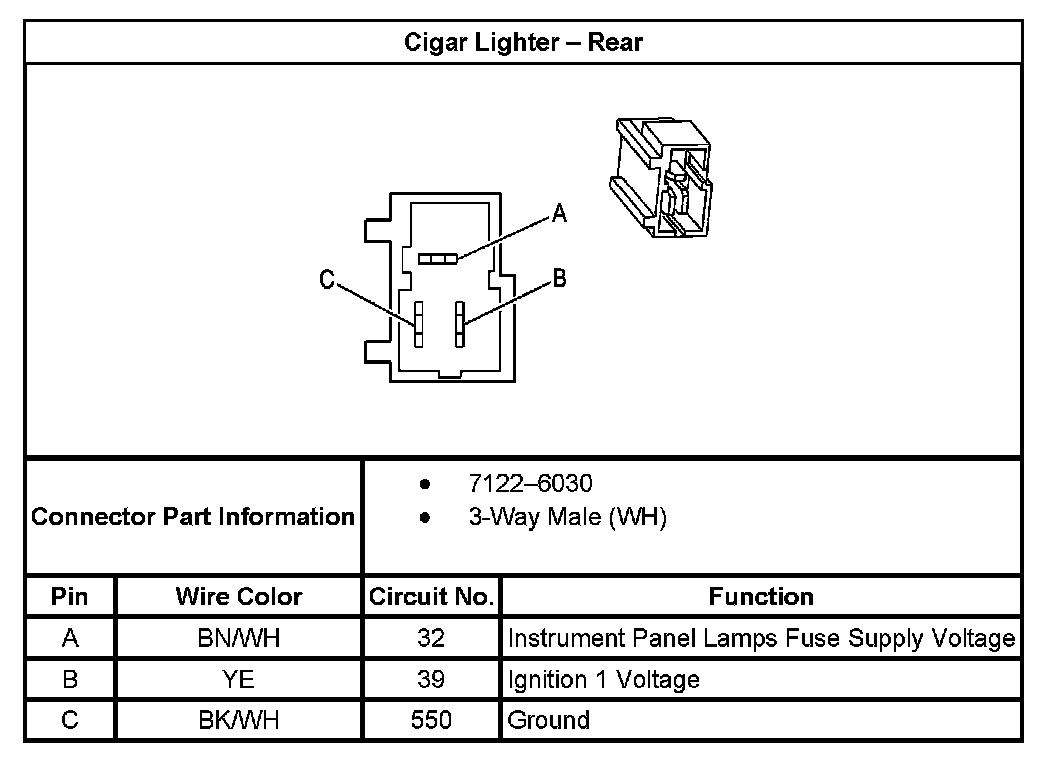

Cigar Lighter - Rear:

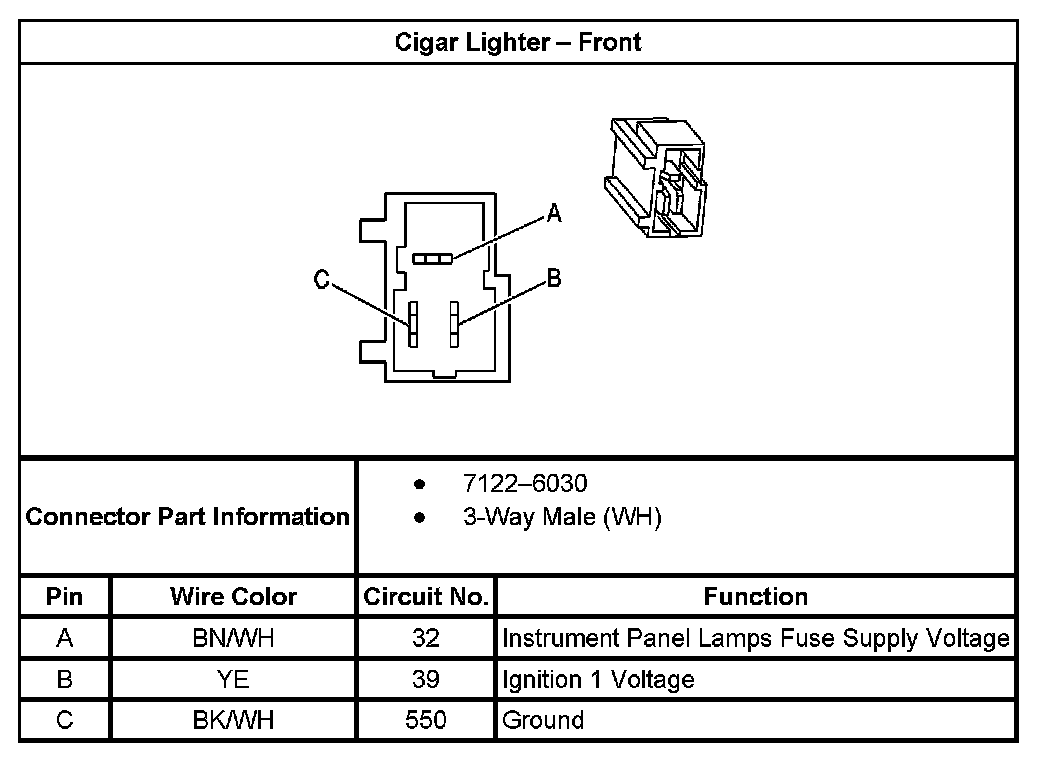

Cigar Lighter - Front:
Cigar Lighter - Rear:
