GTO V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Shift Solenoid, M/T
>>
Reverse Inhibit Solenoid
Reverse Inhibit Solenoid

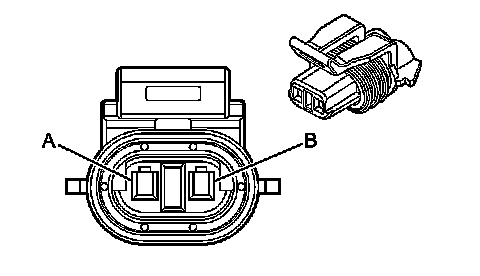

Manual Transmission Connector End Views

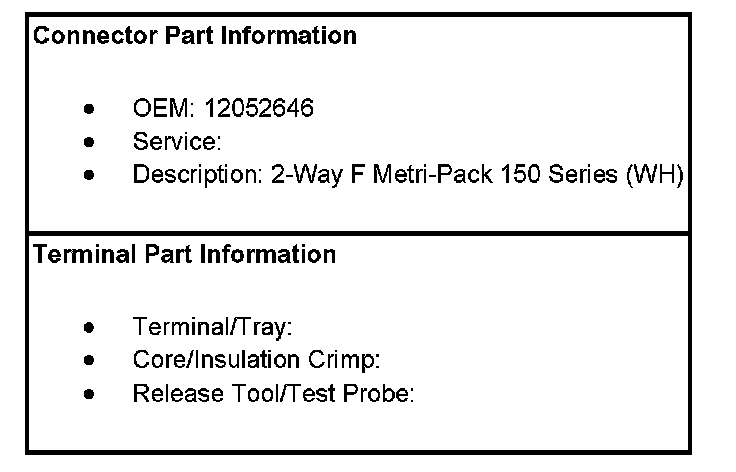

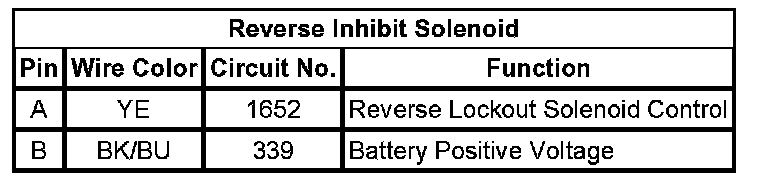

Reverse Inhibit Solenoid:
