Seat Occupant Sensor
>>
Passenger Presence Detection Sensor - Passenger
Passenger Presence Detection Sensor - Passenger

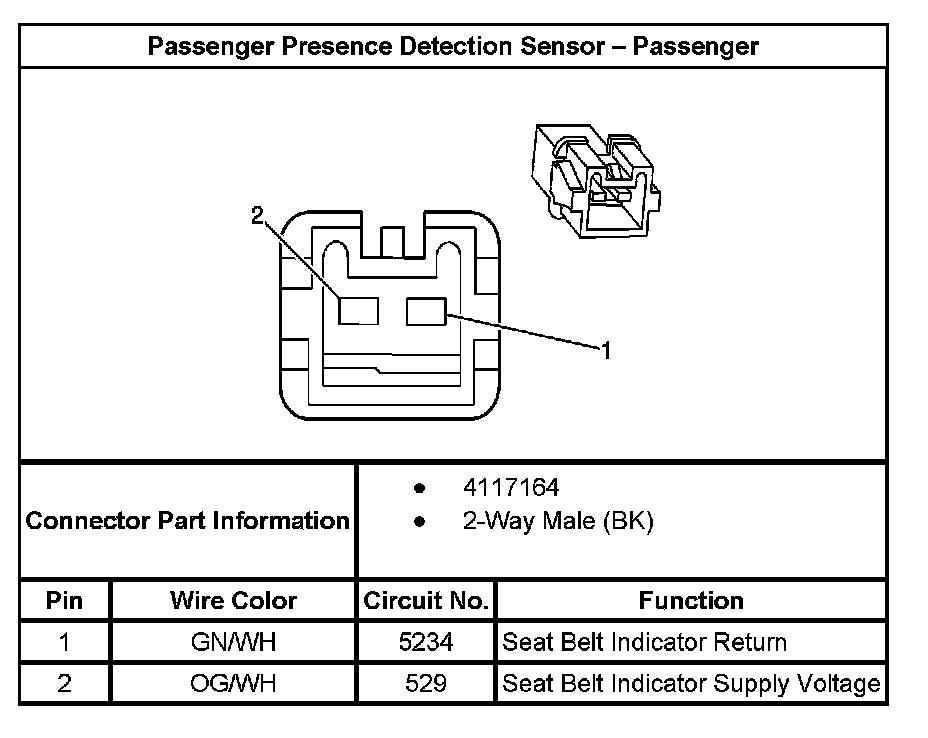

Passenger Presence Detection Sensor - Passenger:
