Pontiac
>>
2006
>>
GTO V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C900 - C999
>>

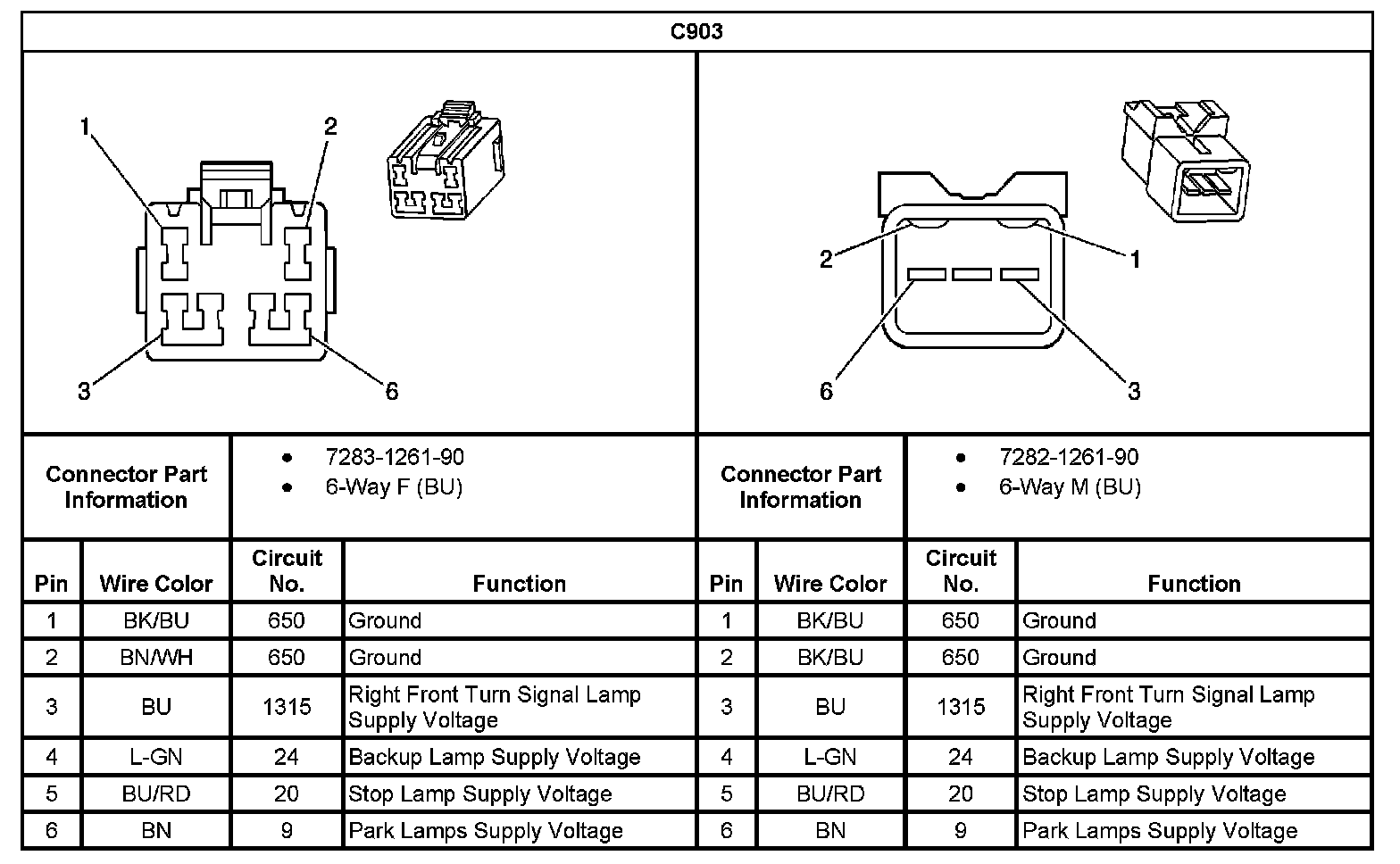

C903
C903
C903:
C903:
