Pontiac
>>
2006
>>
GTO V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C107
C107

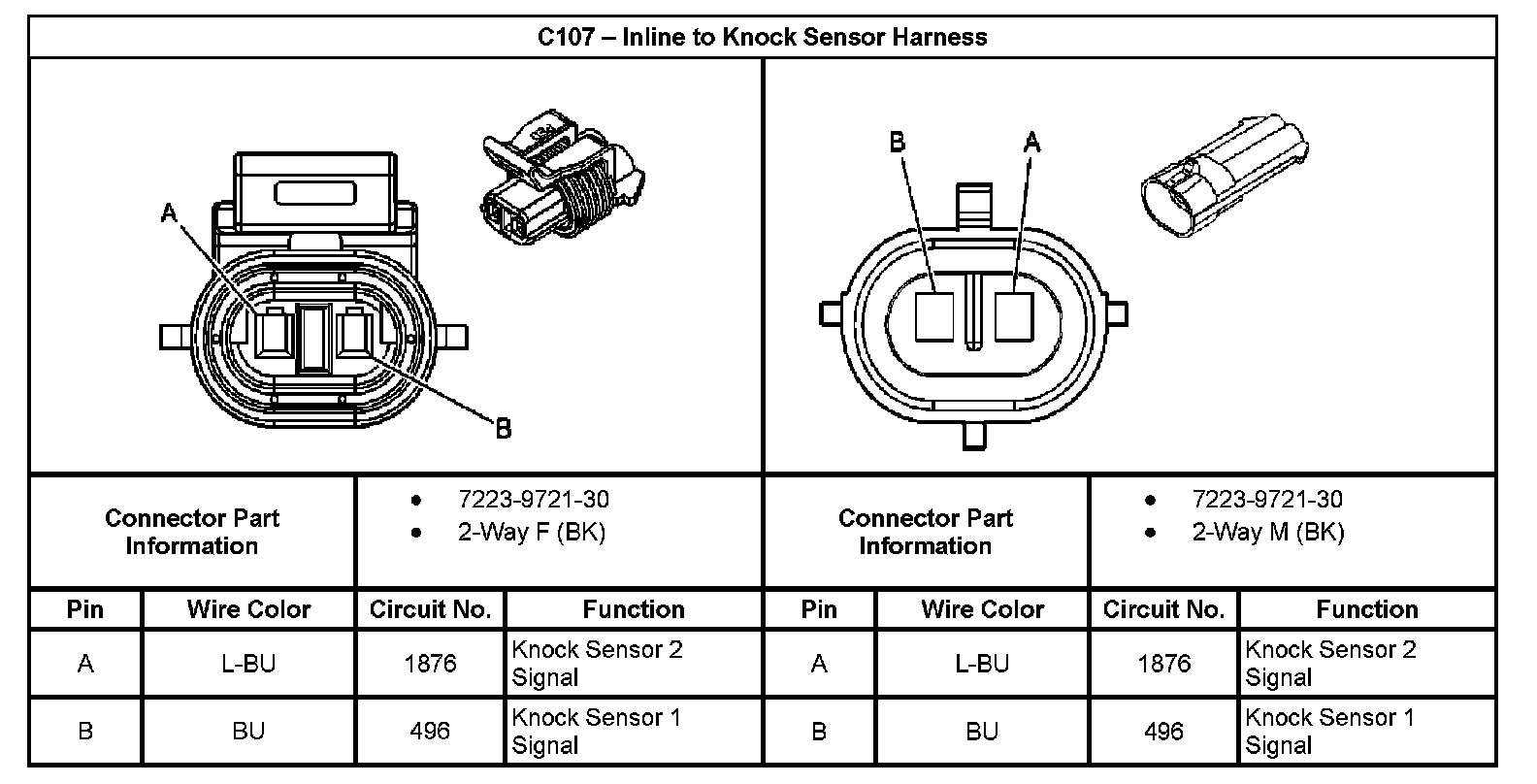

C107 - Inline to Knock Sensor Harness:
