Power Steering Return Hose

Power Steering Return Hose Replacement

Tools Required
^ J44586 Power Steering Gear Oil Seal Remover/Installer

Removal Procedure

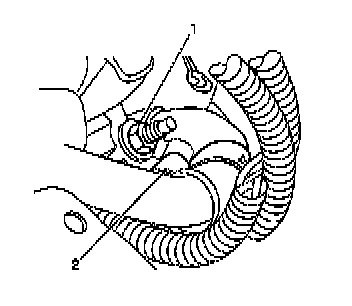

1. Remove the power steering hose retaining nut (1) and the retaining bracket (2).

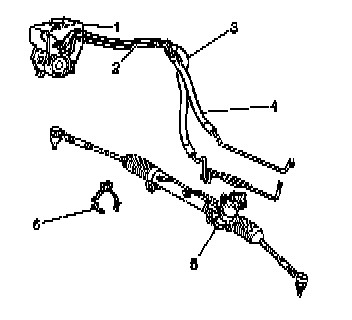

2. Remove the power steering return hose (3) from the power steering pump (1).
3. Raise the vehicle on a hoist.
4. Remove the retaining bolt and screw from the cooler pipe brackets.
5. Remove the power steering return hose (3) from the retainer (6).
6. Disconnect the power steering pressure hose from the power steering gear.
7. Remove the power steering return hose (3) from the power steering gear (5).
8. Remove the power steering return hose (3) from the vehicle.





9. Notice: Clean the power steering gear inlet and outlet ports thoroughly of any debris. Failure to do so could result in contamination and damage to the power steering system components.

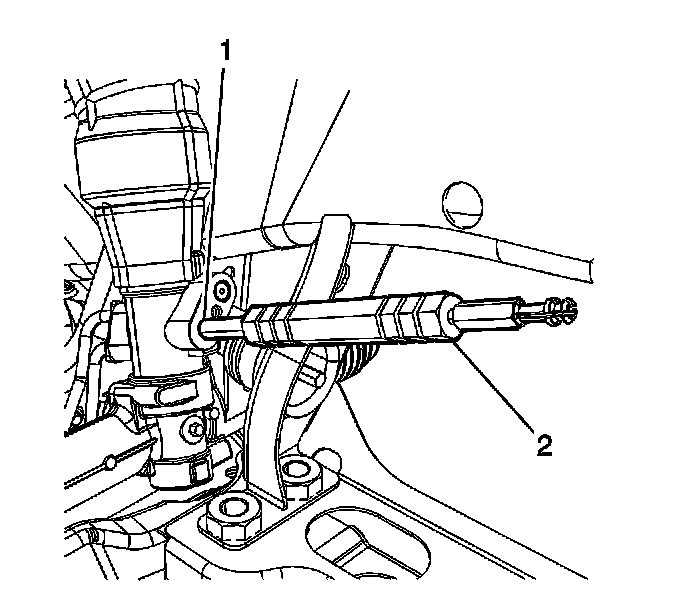

Install the seal extraction end of the J44586 (2) to the power steering gear oil seal (1).

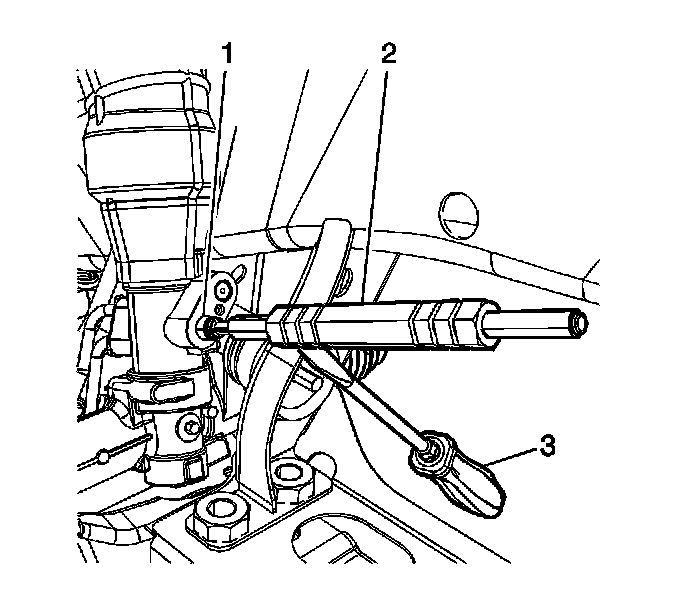

10. Extract the power steering gear oil seal (1) from the power steering gear using the J44586 (2) with the aid of a flat bladed tool (3) for additional leverage.

Installation Procedure





1. Install the NEW power steering gear oil seal (1) to the power steering gear using the seal installation end of the J44586 (2).





2. Ensure the power steering gear oil seals (1) are fully seated in the power steering gear.





3. Notice: Refer to Installing Hoses Without Twists or Bends Notice.

Notice: Refer to Fastener Notice.

Install the power steering return hose (3) to the power steering gear (5).
Tighten the fitting to 27 Nm (20 ft. lbs.).
4. Install the power steering pressure hose to the power steering gear.
5. Install the power steering return hose (3) to the retainer (6).
6. Install the retaining bolt and screw to the cooler pipe brackets.
Tighten to 10 Nm (89 inch lbs.).
7. Lower the vehicle.
8. Install the power steering return hose (3) to the power steering pump (1).





9. Install the power steering hose retaining bracket (2) and the retaining nut (1).
Tighten the nut to 50 Nm (37 inch lbs.).
10. Ensure the power steering hose has sufficient clearance from the exhaust manifold.
11. Bleed the air from the power steering system.
