Engine Mount Bracket Replacement

Engine Mount Bracket Replacement

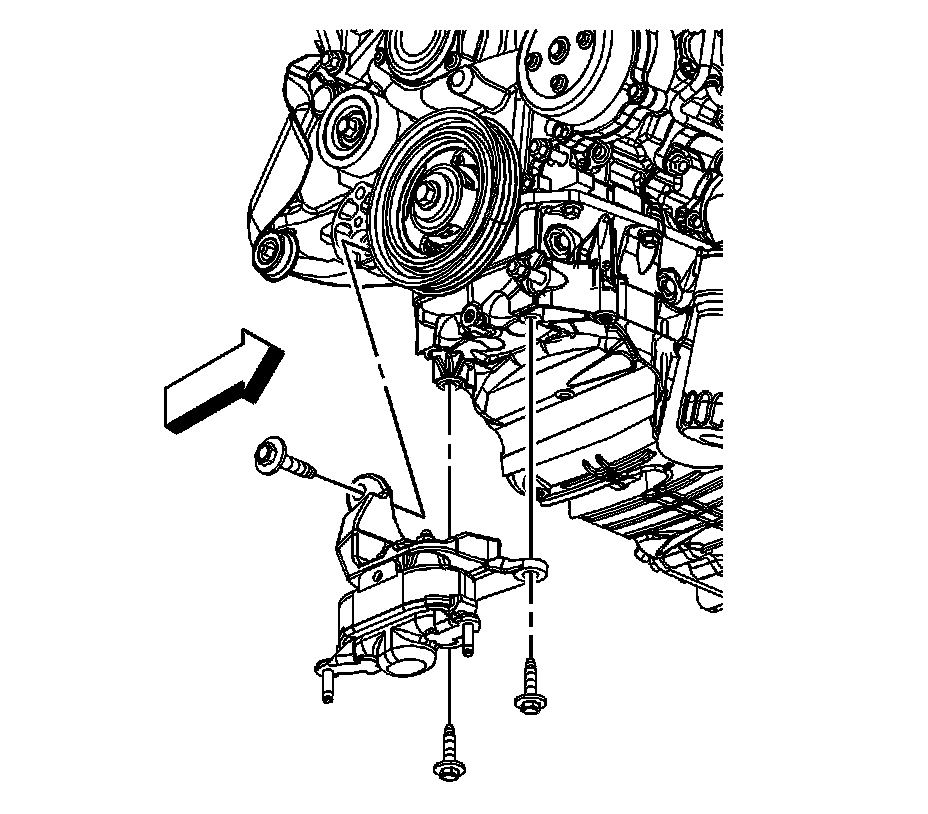

Removal Procedure





1. Remove the engine mount.
2. Remove the engine mount bracket bolt from the engine.
3. Remove the engine mount bracket bolts from the oil pan.
4. Remove the engine mount bracket from the vehicle.

Installation Procedure





1. Position the engine mount bracket to the engine.
2. Loose assemble the engine mount bracket to oil pan and engine.
3. Hold the bracket firmly to the front of the engine and snug the engine mount bracket bolts.

Notice: Refer to Fastener Notice.

4. Tighten the engine mount bracket bolts.
1. Tighten the engine mount bracket to engine bolt to 90 Nm (66 ft. lbs.).
2. Tighten the engine mount bracket to oil pan bolts to 50 Nm (37 ft. lbs.).
5. Install the engine mount.
