Home
>>
Pontiac
>>
2006
>>
G6 V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sunroof / Moonroof
>>
System Diagram
>>
Sunroof Shade Switch
Sunroof Shade Switch

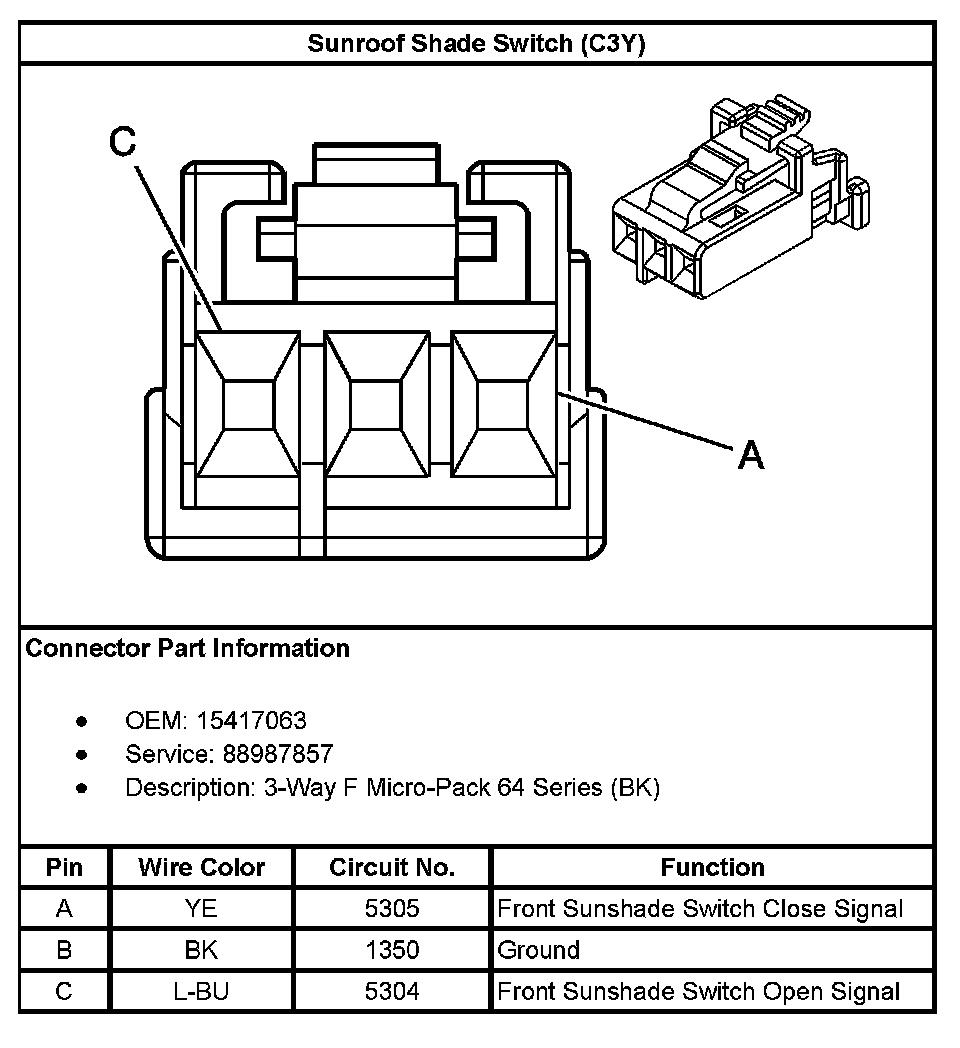

Sunroof Shade Switch (With RPO Code C3Y):

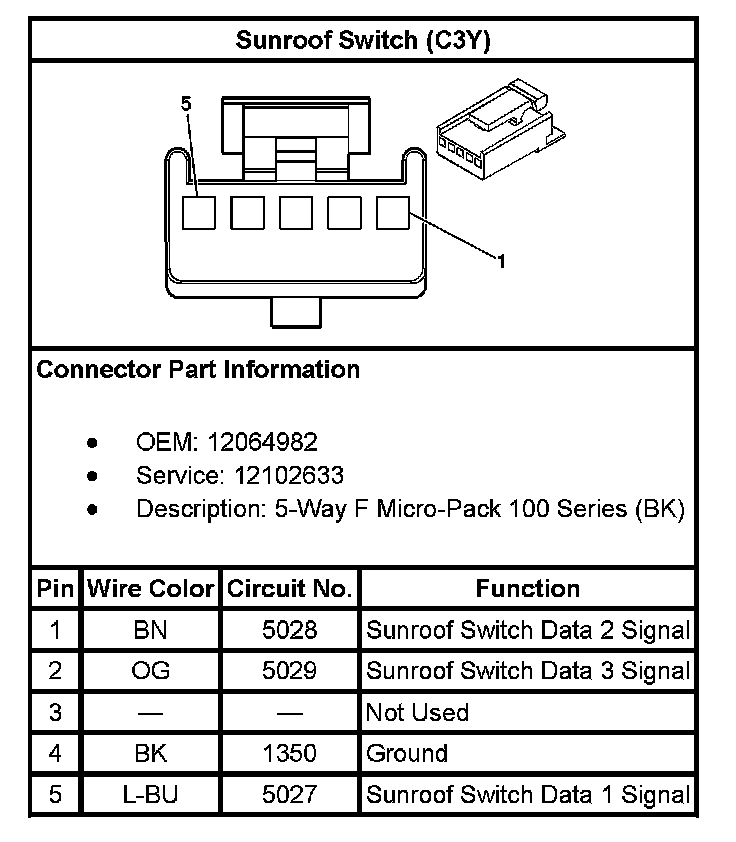

Sunroof Switch (With RPO Code C3Y):
Sunroof Switch (With RPO Code CF5):
