Home
>>
Pontiac
>>
2006
>>
G6 V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C400 - C499
>>
C402
C402

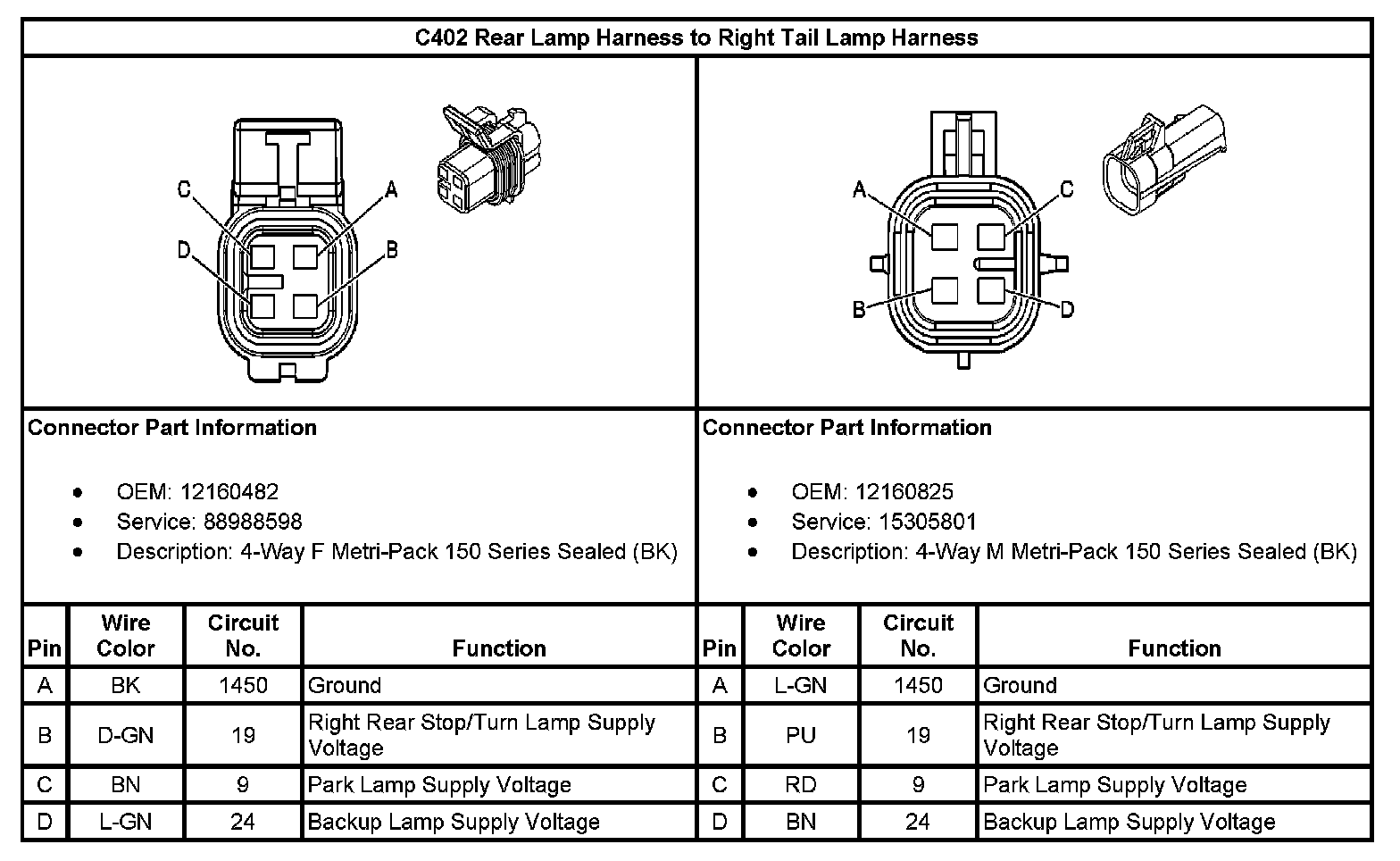

C402 Rear Lamp Harness To Right Tail Lamp Harness:
