Pontiac
>>
2006
>>
G6 V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Torque Converter Clutch Solenoid, A/T
>>
4T65-E - Automatic Transaxle
4T65-E - Automatic Transaxle

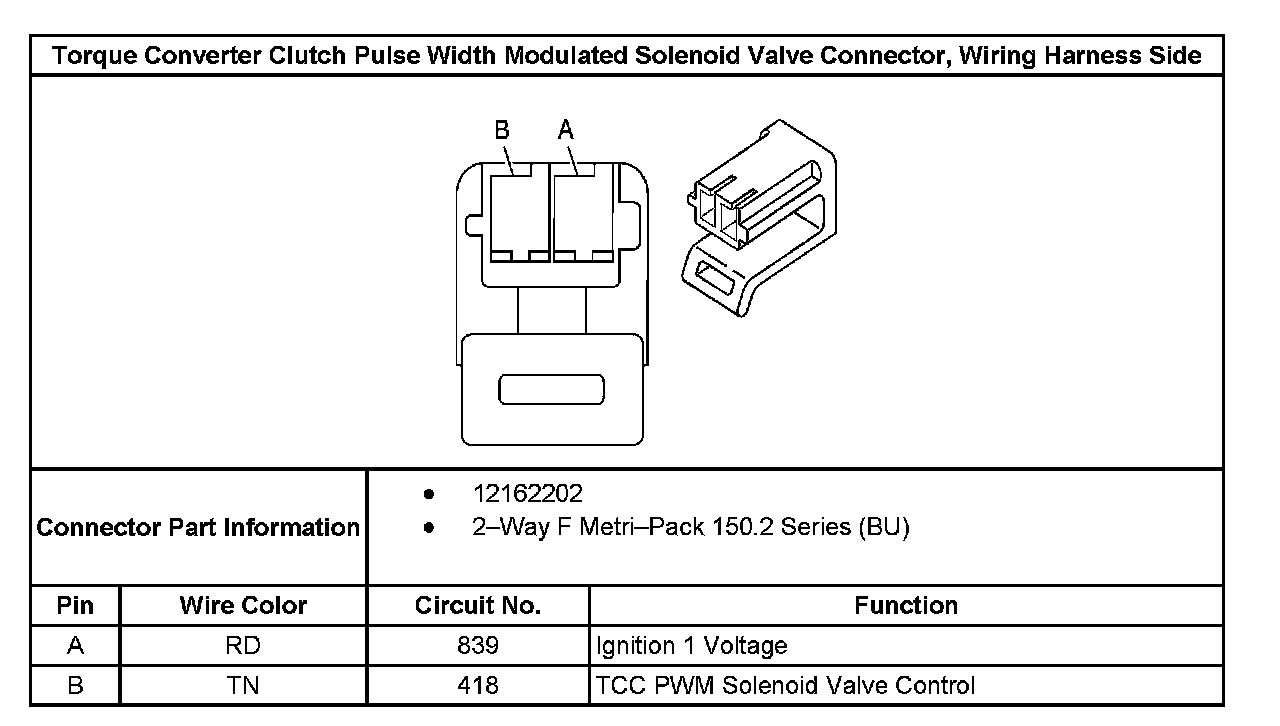

Torque Converter Clutch Pulse Width Modulated Valve Connector, Wiring Harness:
