SP202
SP202

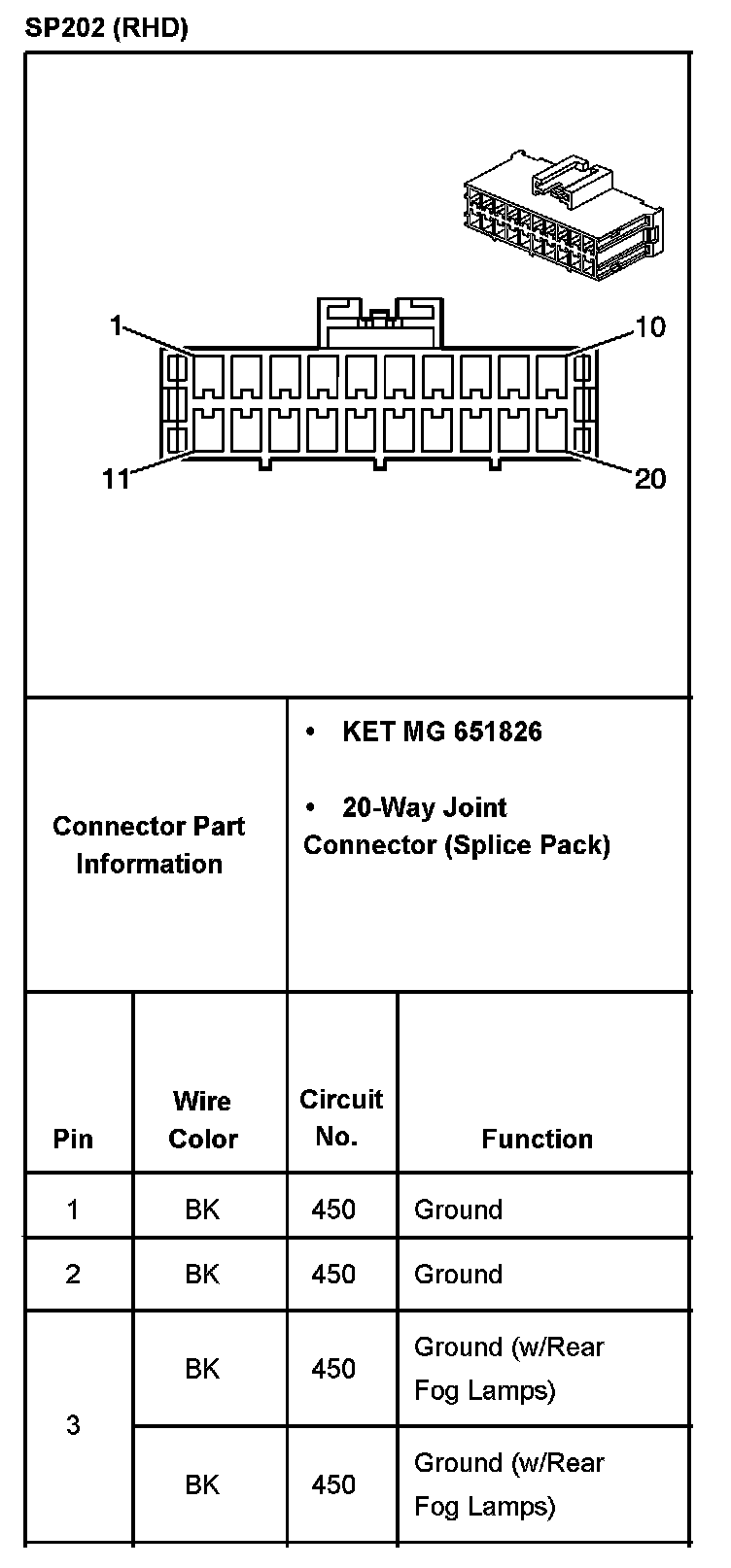

SP202 Part 1:

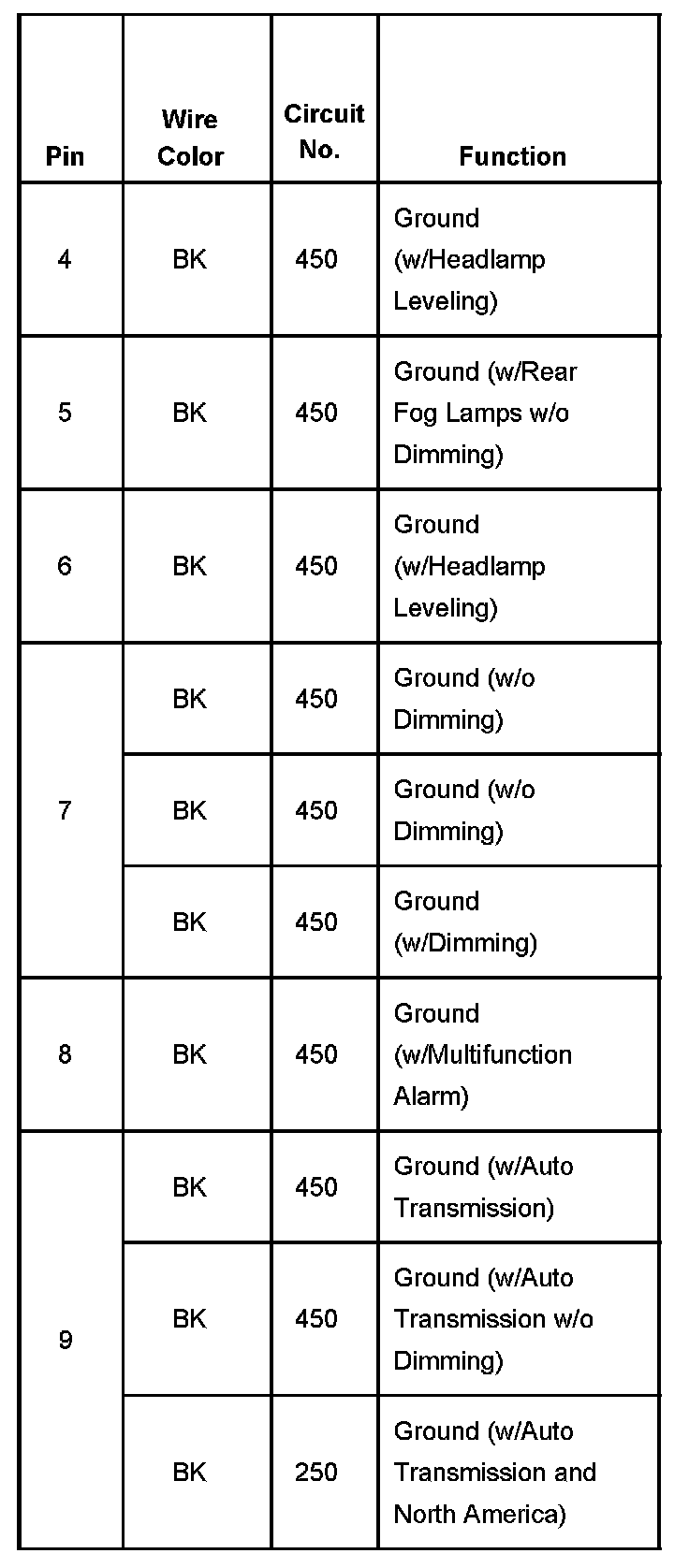

SP202 Part 2:

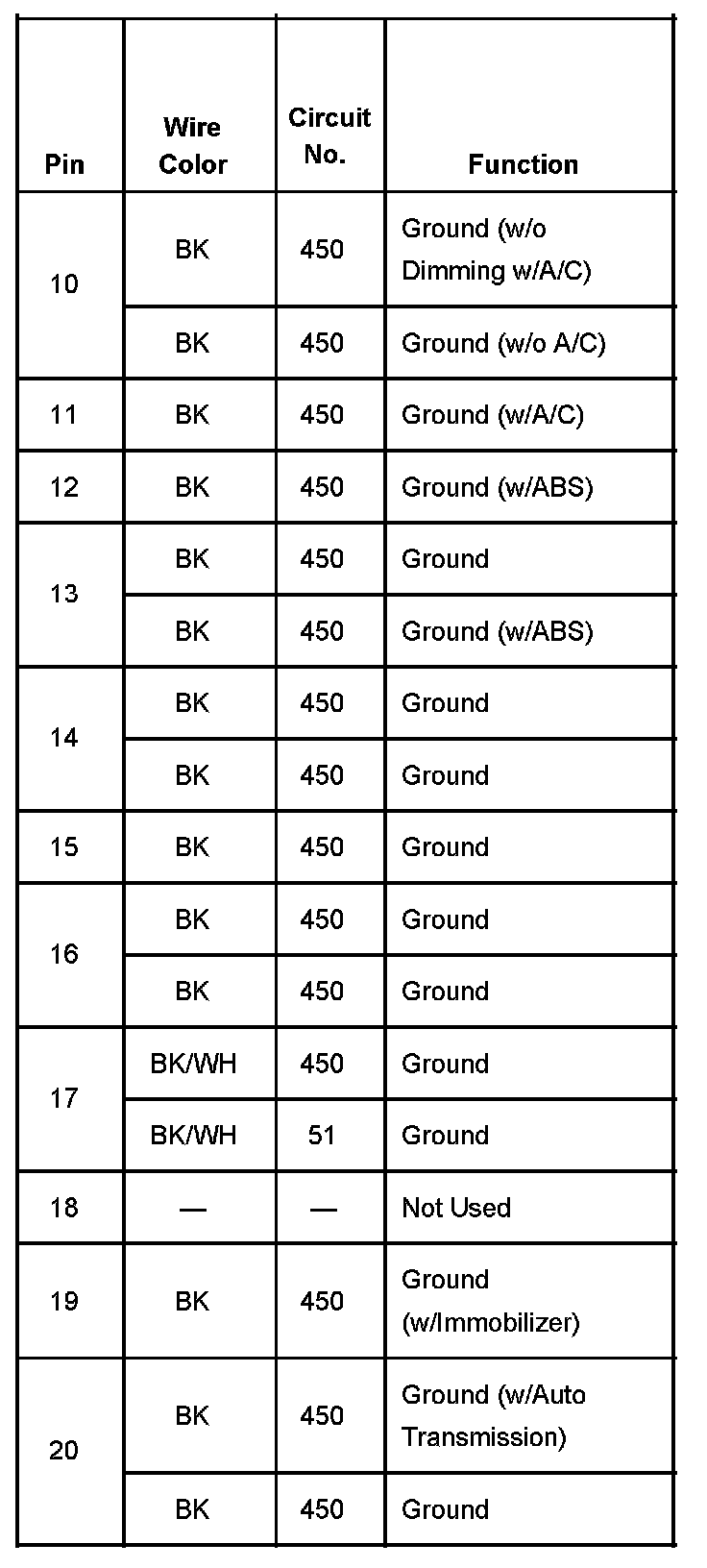

SP202 Part 3:

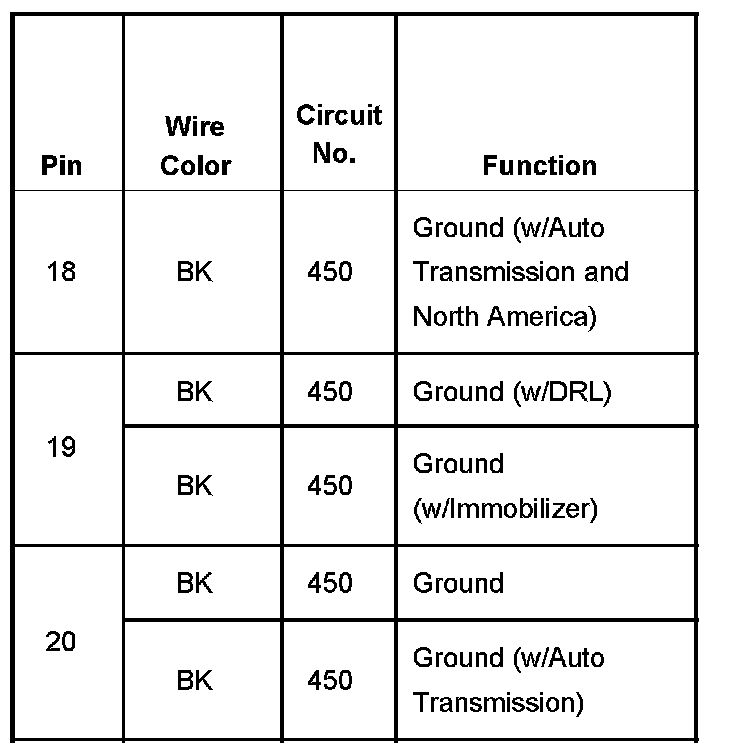

SP202 Part 4:

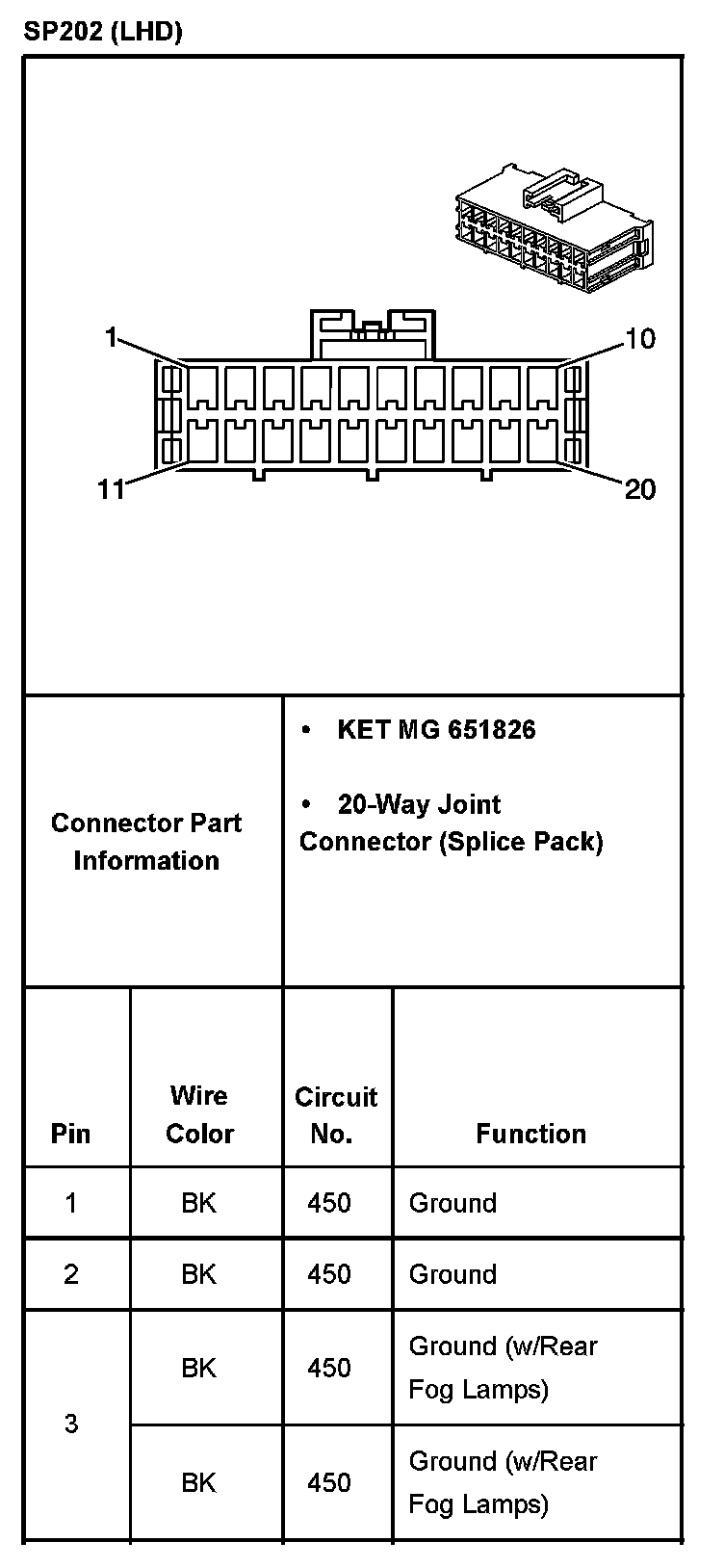

SP202 Part 1:

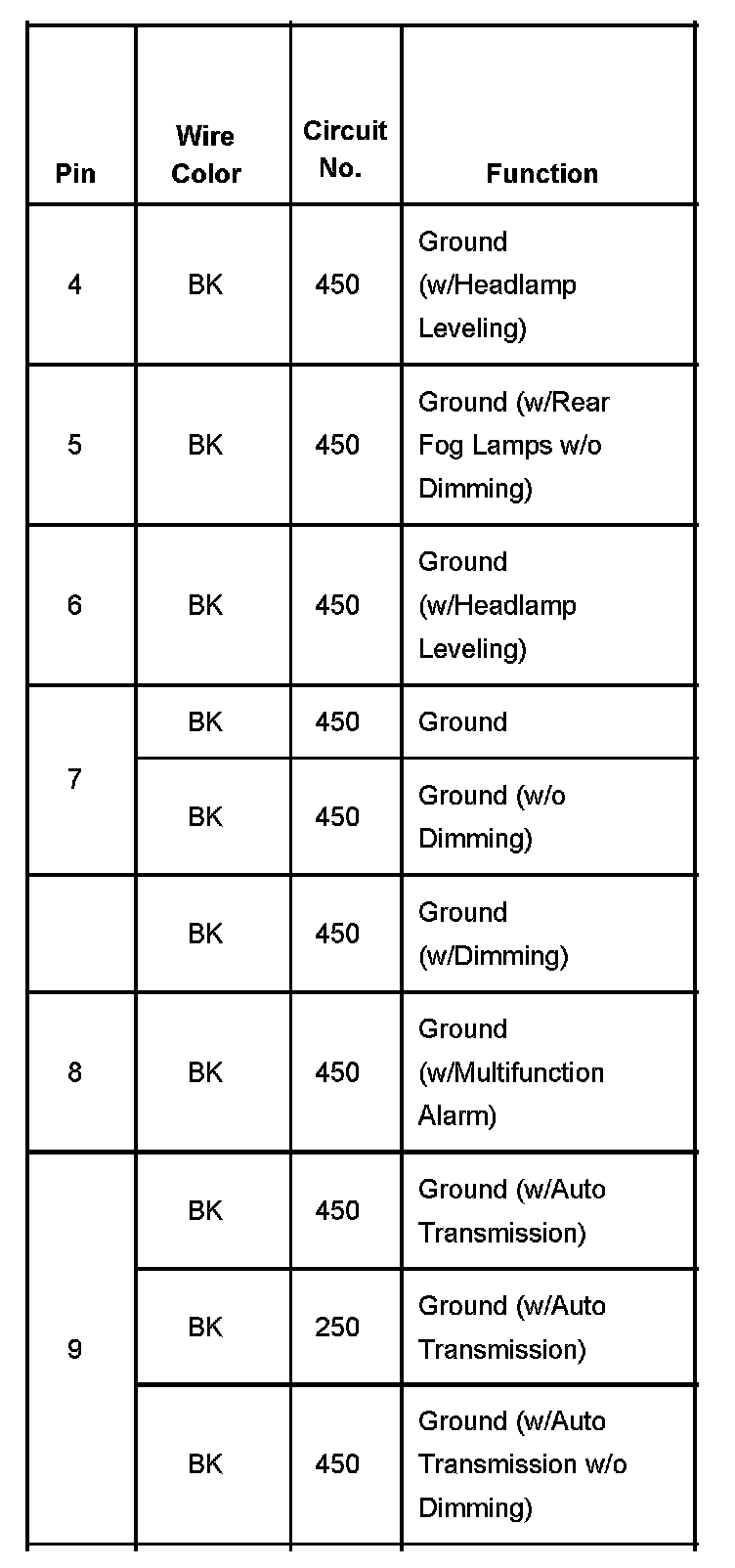

SP202 Part 2:

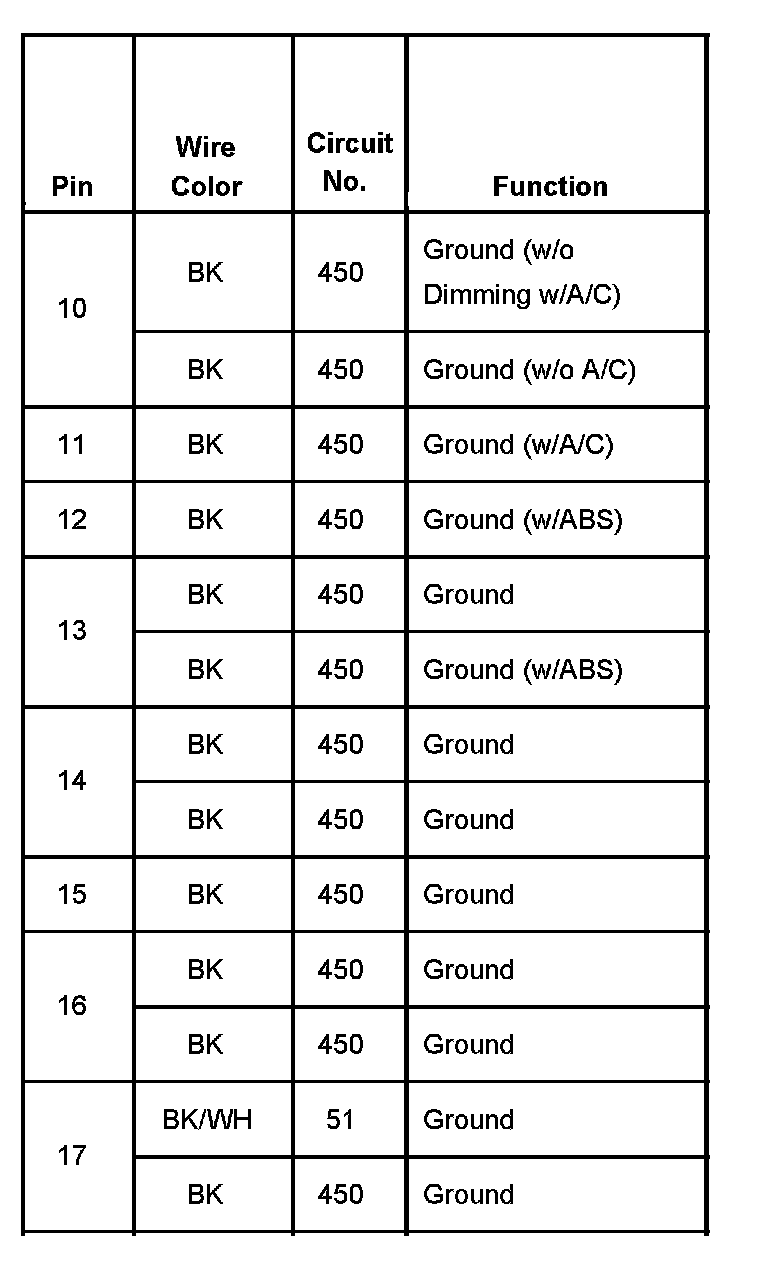

SP202 Part 3:
