Pontiac
>>
2005
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

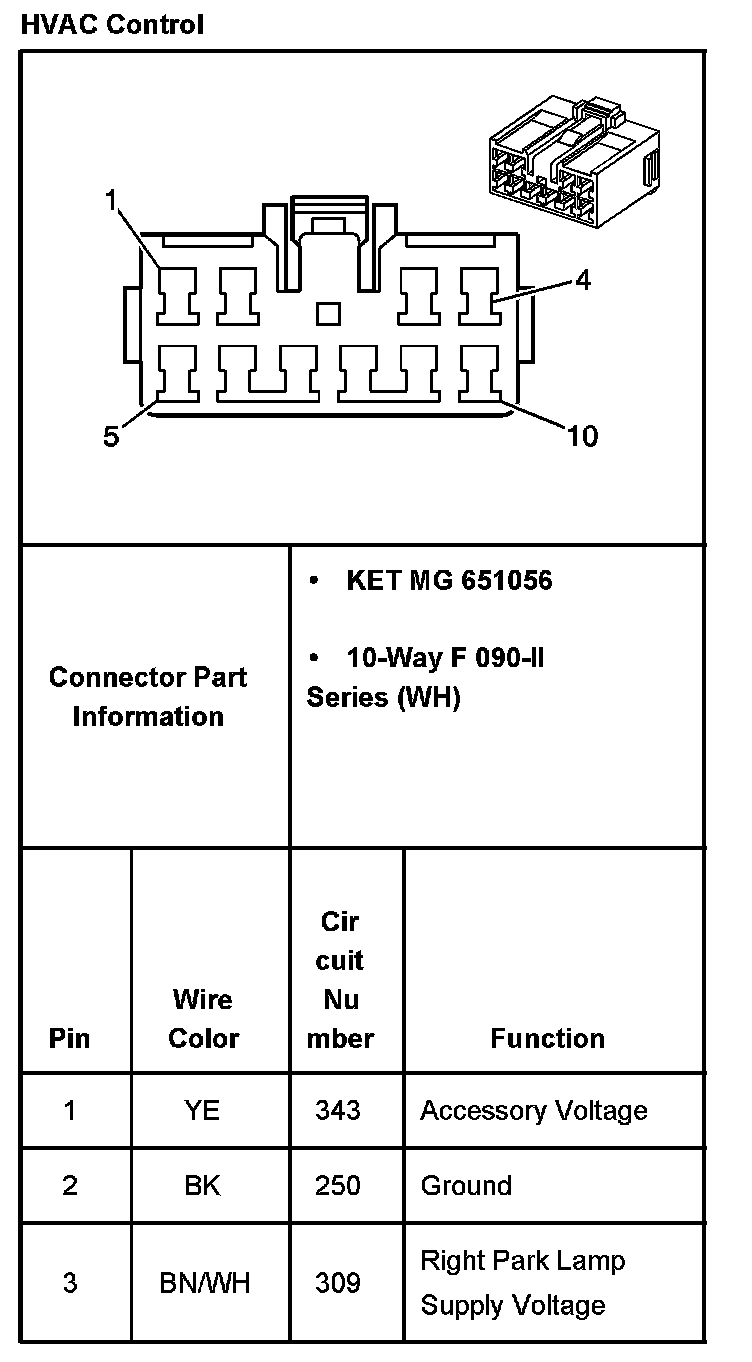

HVAC Control Part 1:

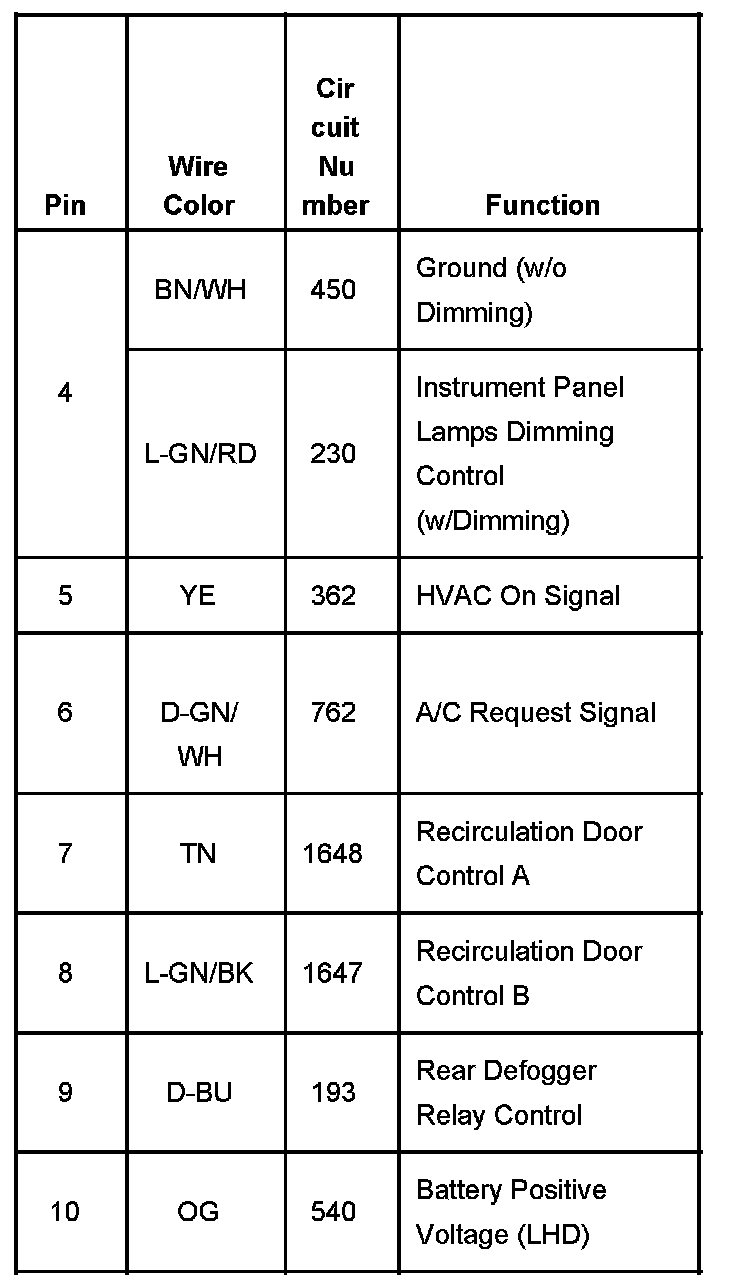

HVAC Control Part 2:
