Power Seat Motor Position Sensor
Power Seat Motor Position Sensor

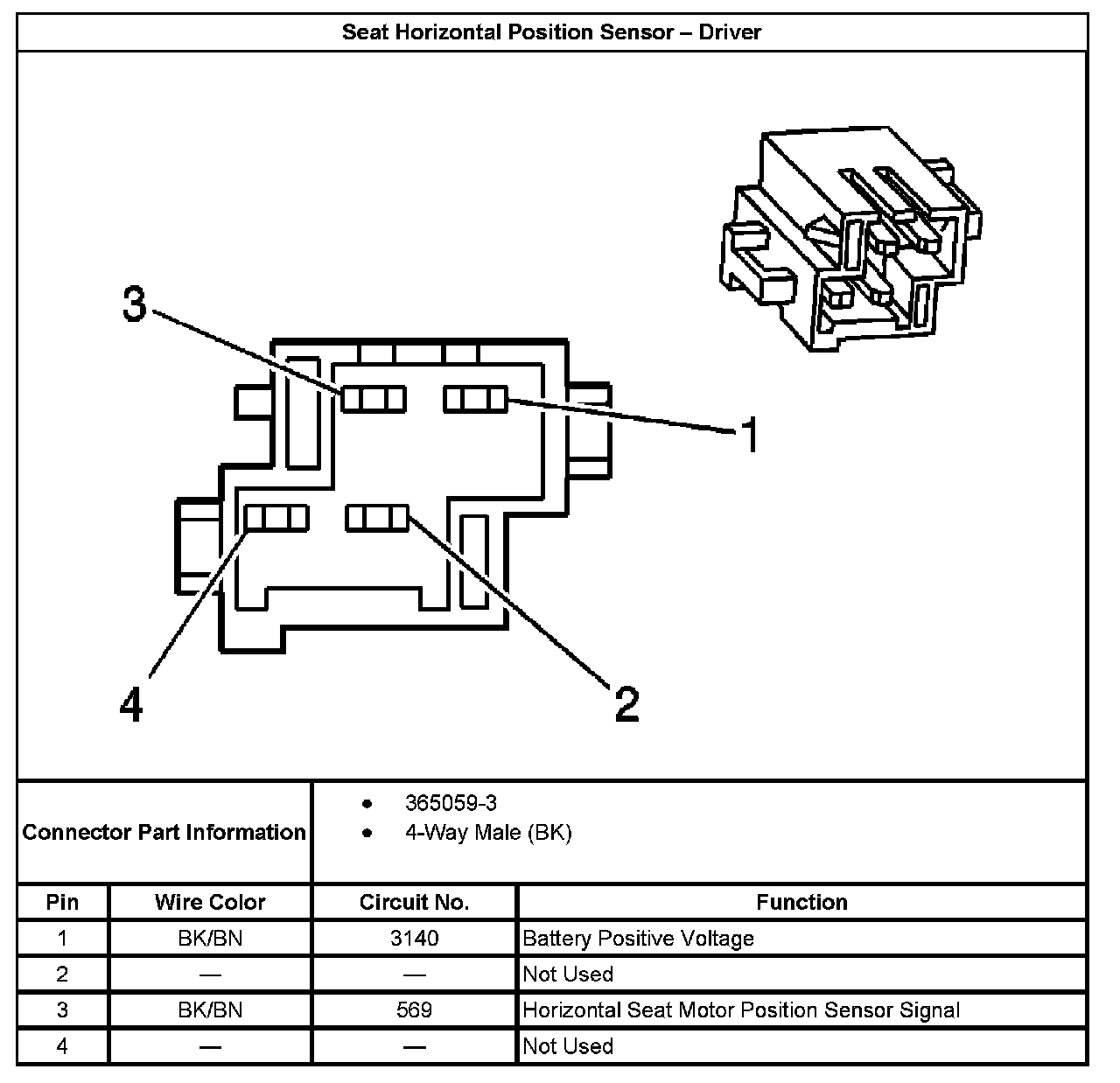

Seat Horizontal Position Sensor - Driver:

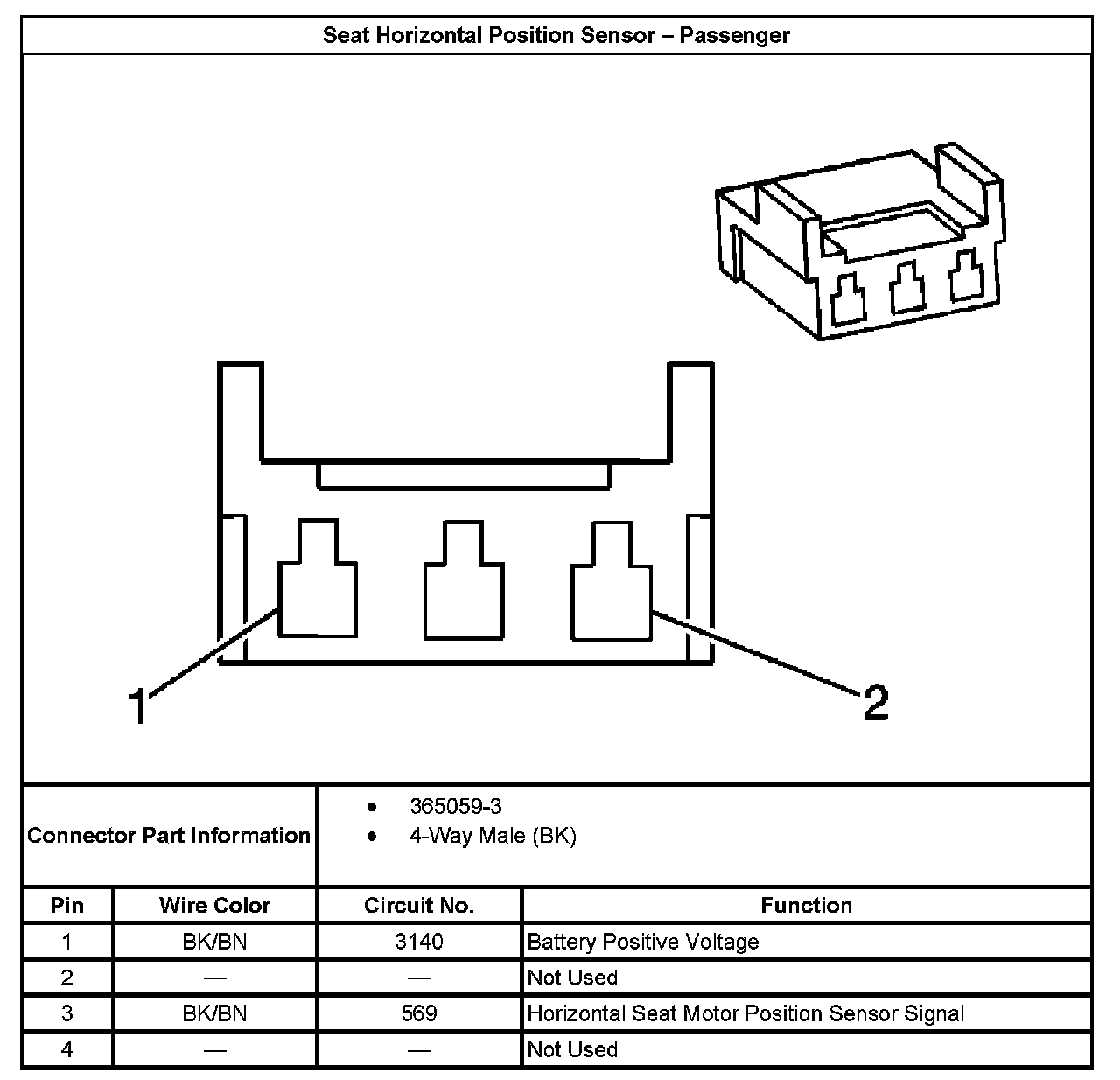

Seat Horizontal Position Sensor - Passenger:
