Home >> Pontiac >> 2004 >> Vibe FWD L4-1.8L VIN L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Locations

Power Window Motor: Locations

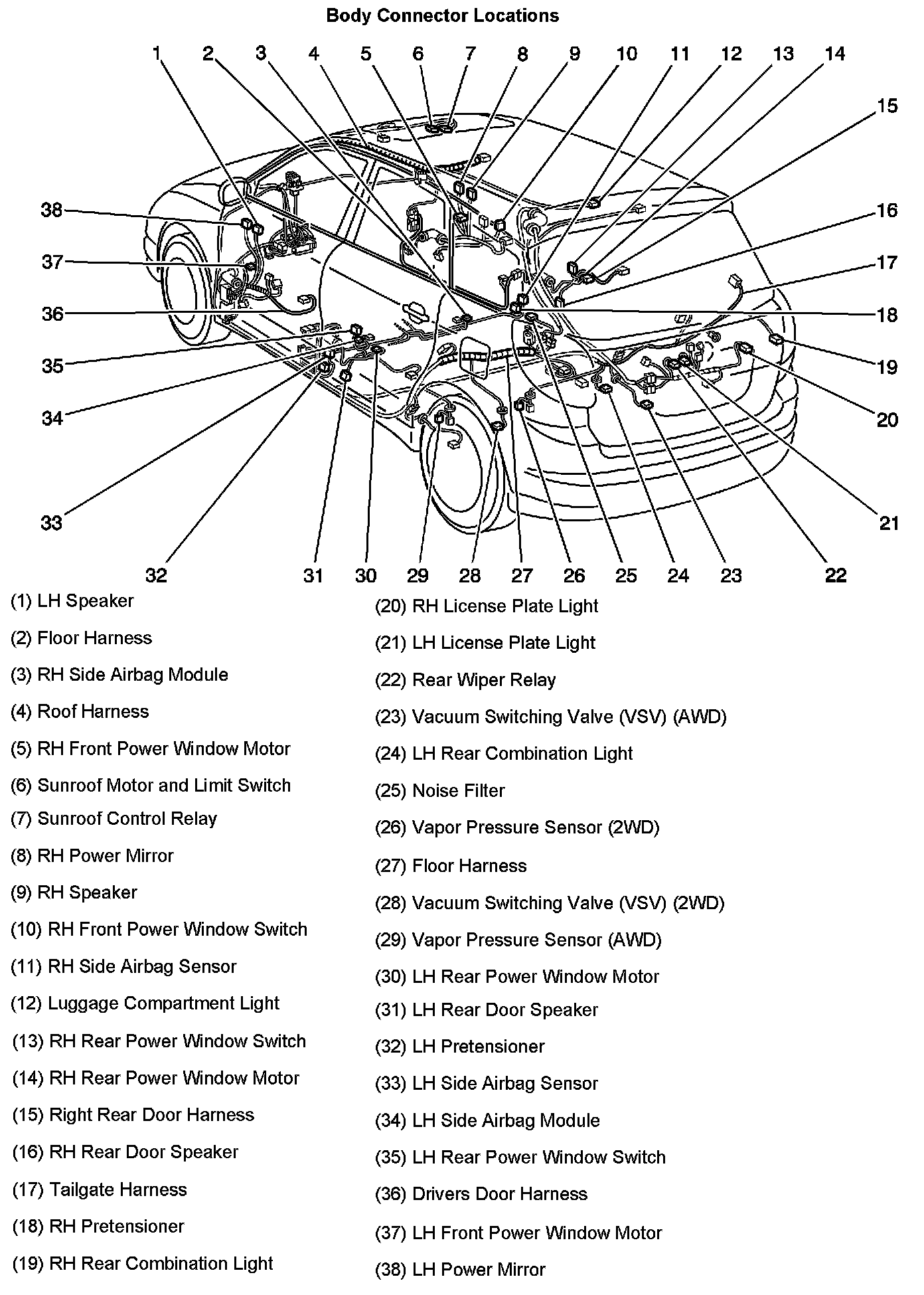

Body Connector Locations:

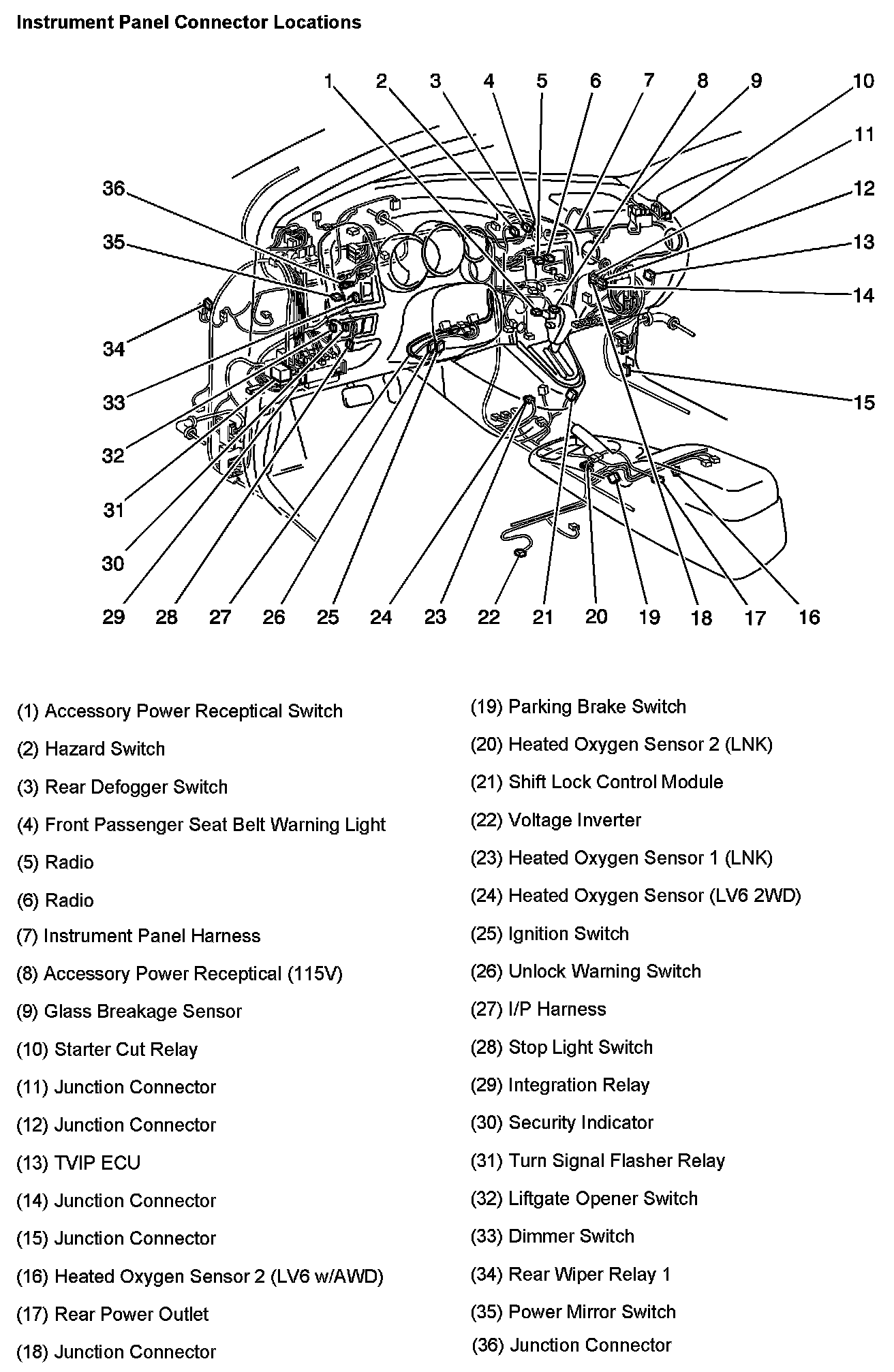

Instrument Panel Connector Locations:



Wiper/Washer Views:
