Multiple Junction Connector
>>
C100 - C205
>>

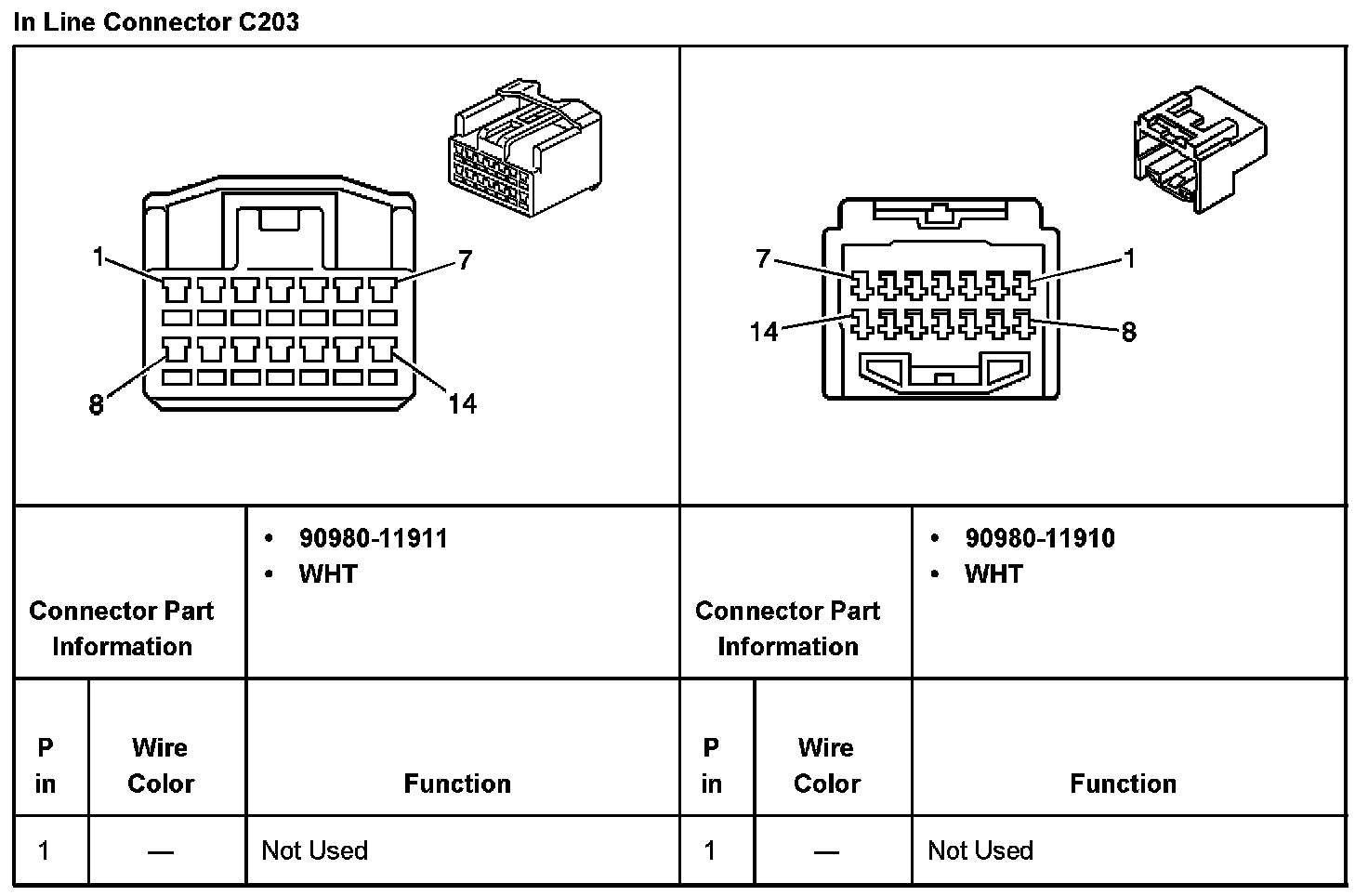

In Line Connector C203
In Line Connector C203

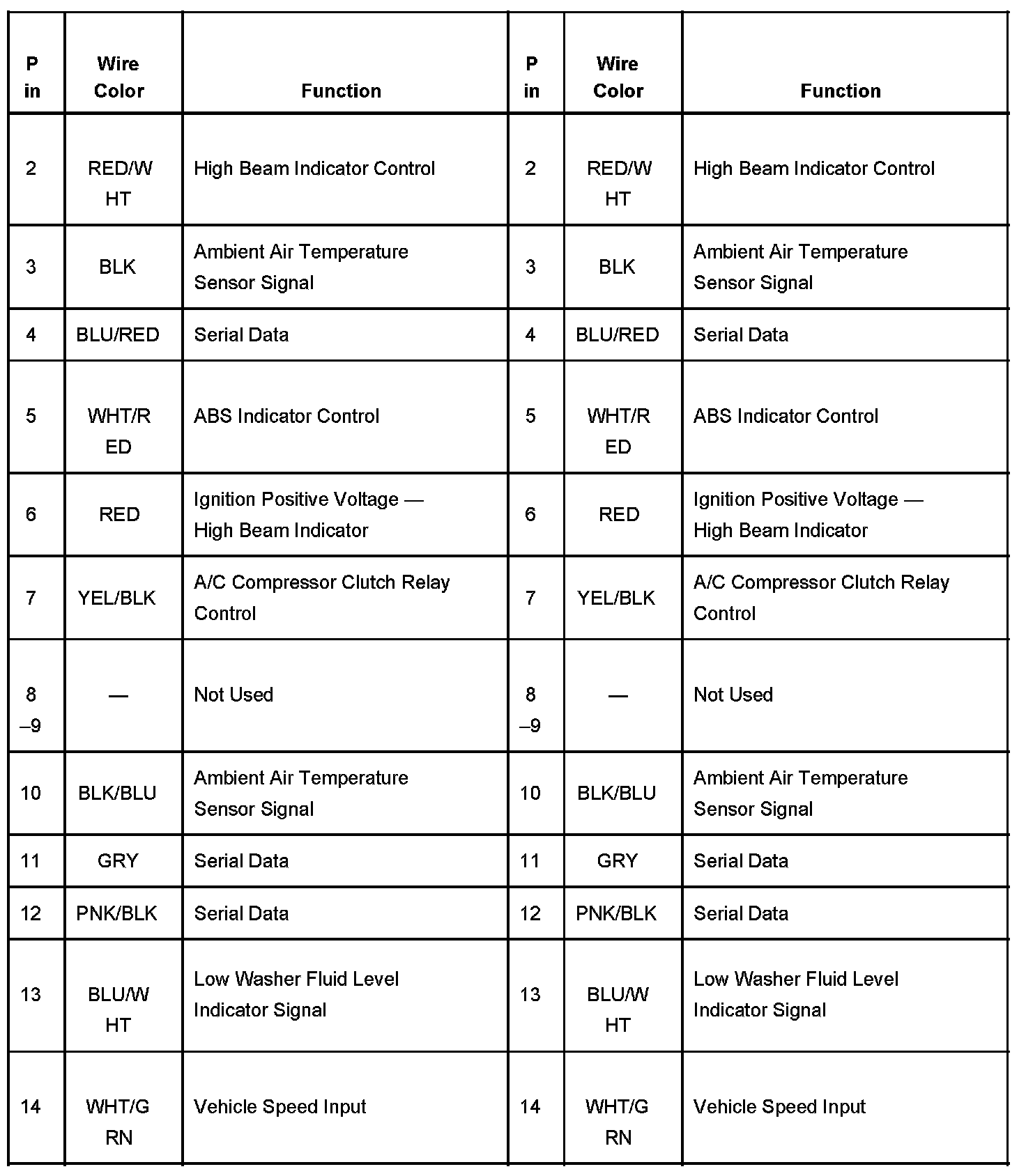

In Line Connector C203 Part 1:
In Line Connector C203 Part 2:
