Vibe FWD L4-1.8L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Clockspring Assembly / Spiral Cable, Air Bag
Clockspring Assembly / Spiral Cable, Air Bag

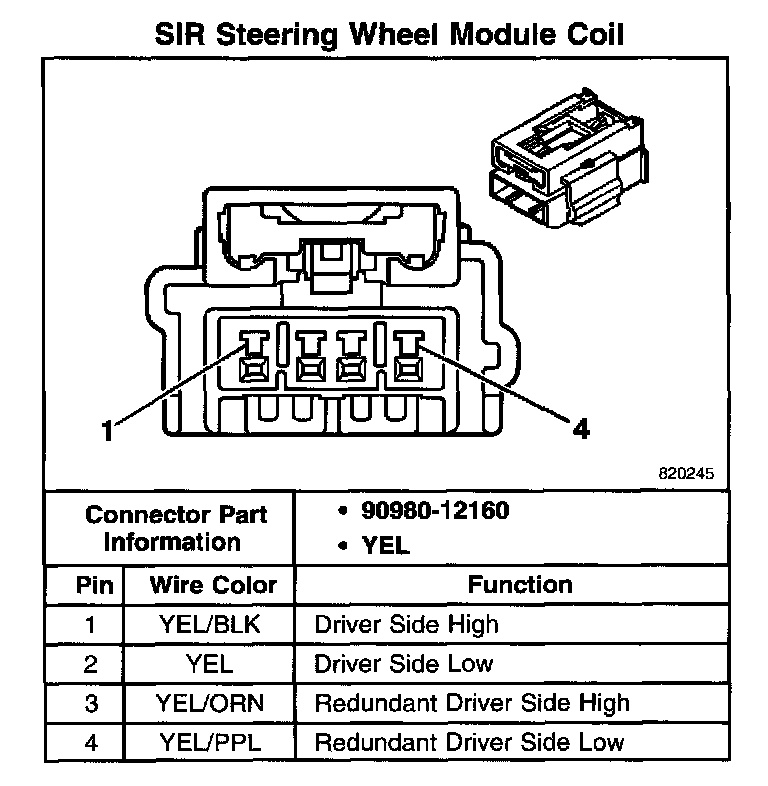

SIR Steering Wheel Module Coil:
