Clutch Pedal Engine Start Switch Replacement

Clutch Pedal Engine Start Switch Replacement

Removal Procedure

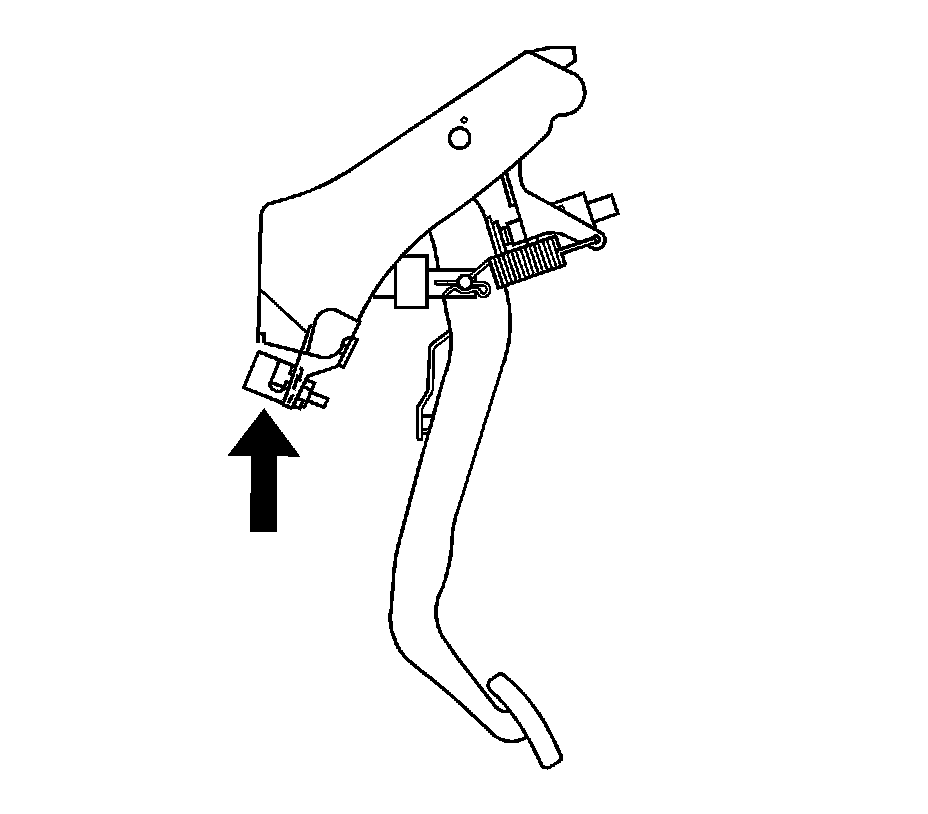

1. Disconnect the clutch start switch electrical connector.





2. Remove the clutch start switch retaining nut, then the start switch.

Installation Procedure

1. Notice: Refer to Fastener Notice in Cautions and Notices.

Install the clutch start switch and retaining nut.
Tighten the retaining nut to 16 Nm (12 ft. lbs.).
2. Connect the clutch start switch electrical connector.
3. Check the clutch start switch for proper operation.
