Vibe AWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Exploded Views
>>
MU4 Automatic Transmission
>>

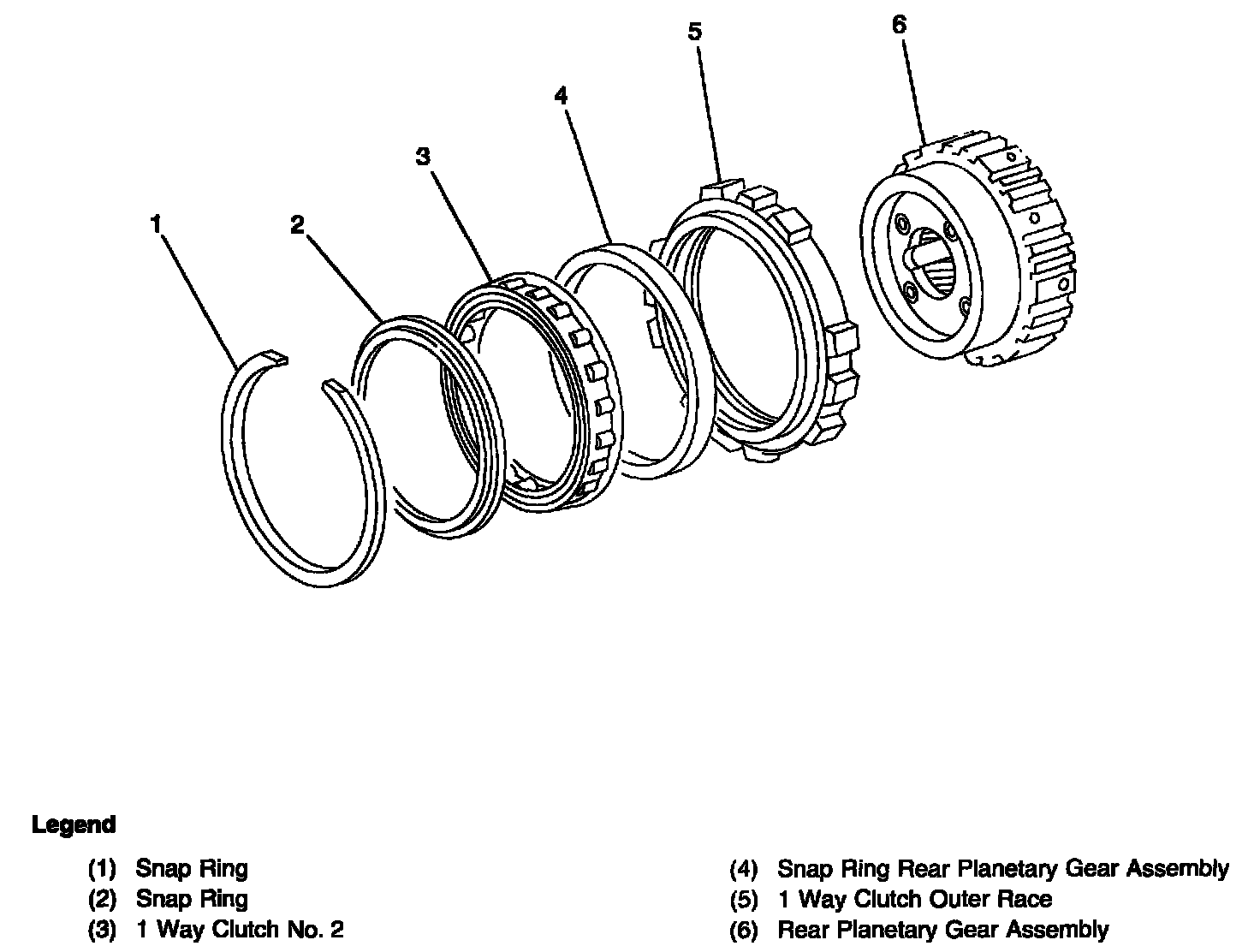

Rear Planetary and Related Components
Rear Planetary and Related Components
Rear Planetary and Related Components
