Home
>>
Pontiac
>>
2004
>>
Vibe AWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
Splice Packs By Number
>>
SP300
SP300

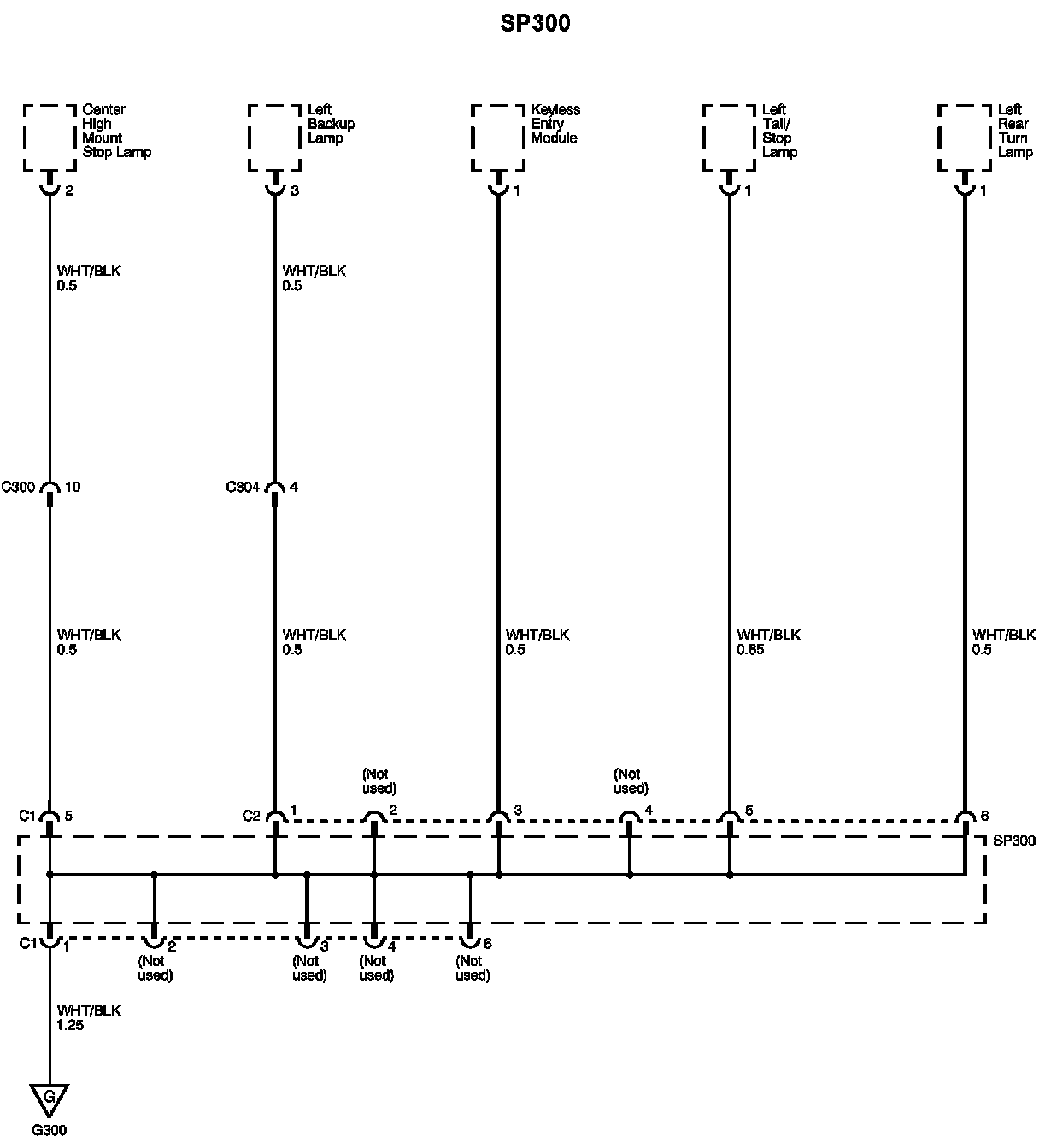

Ground Distribution Diagram 12:
