Home >> Pontiac >> 2004 >> Vibe AWD L4-1.8L VIN 8 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> Splice Packs By Number >> SP200 - SP201 >> SP200

SP200

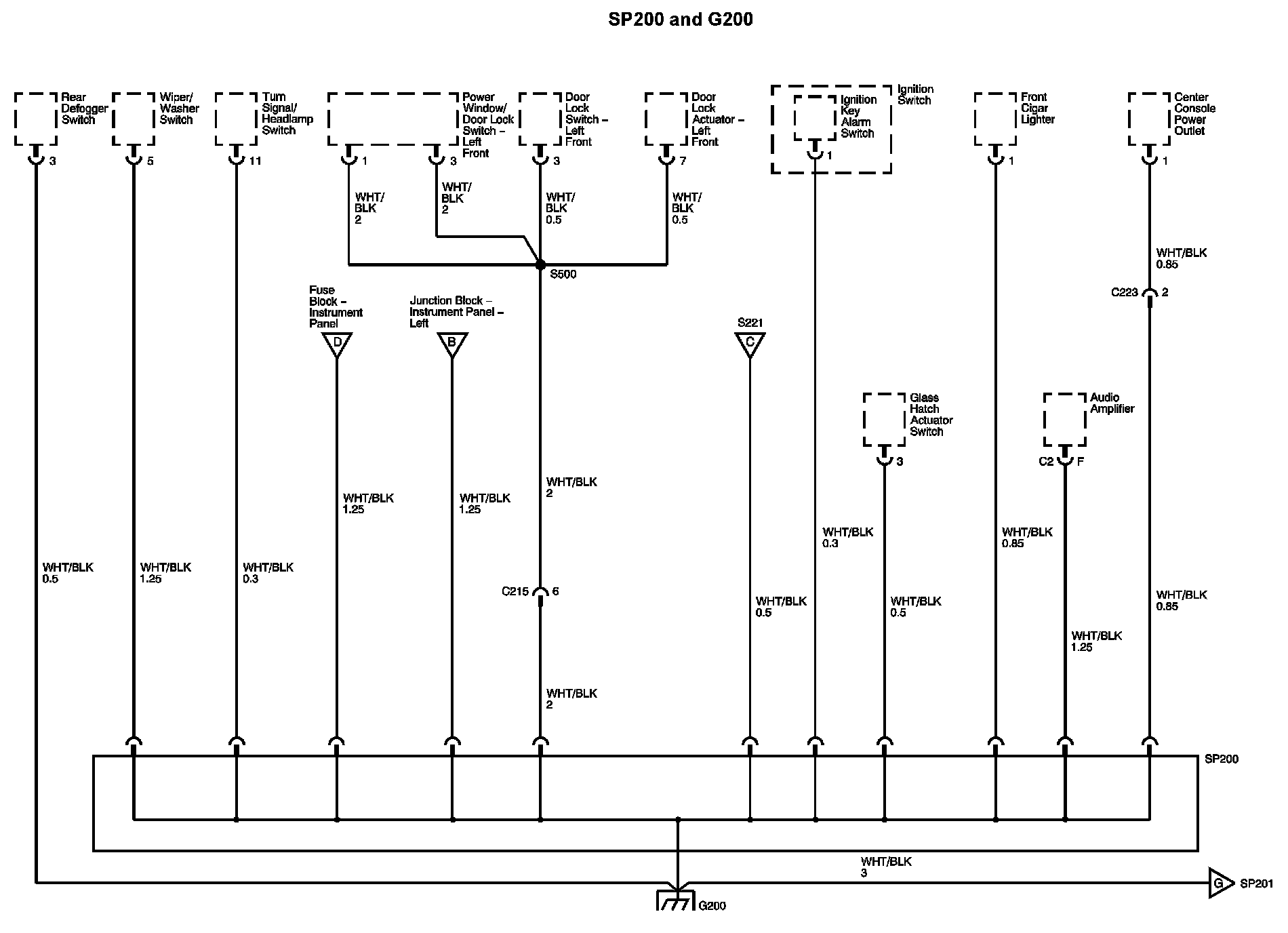

Ground Distribution Diagram 5:
