Right Instrument Panel Junction Block

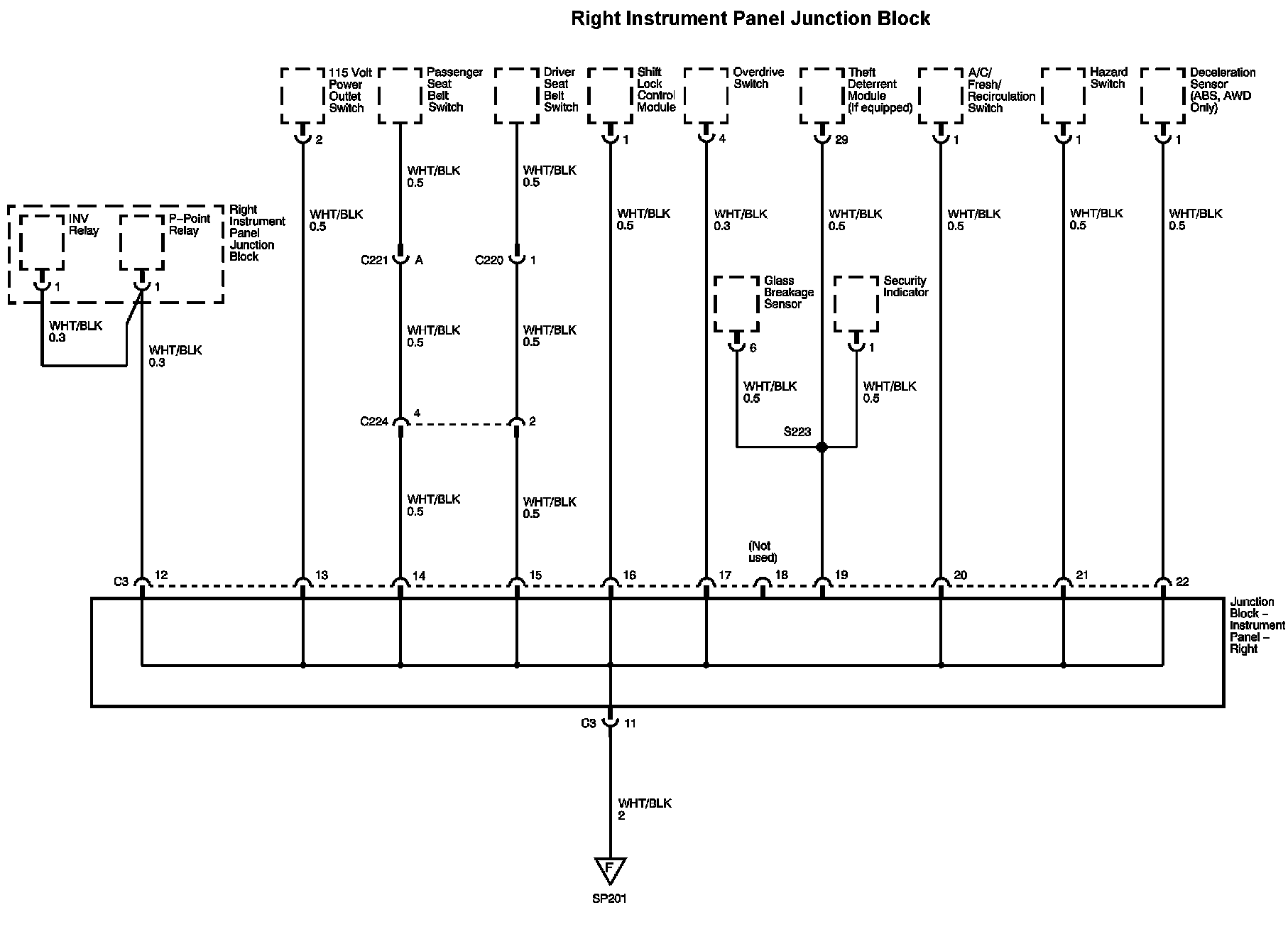

Right Instrument Panel Junction Block
Ground Distribution Diagram 10:
